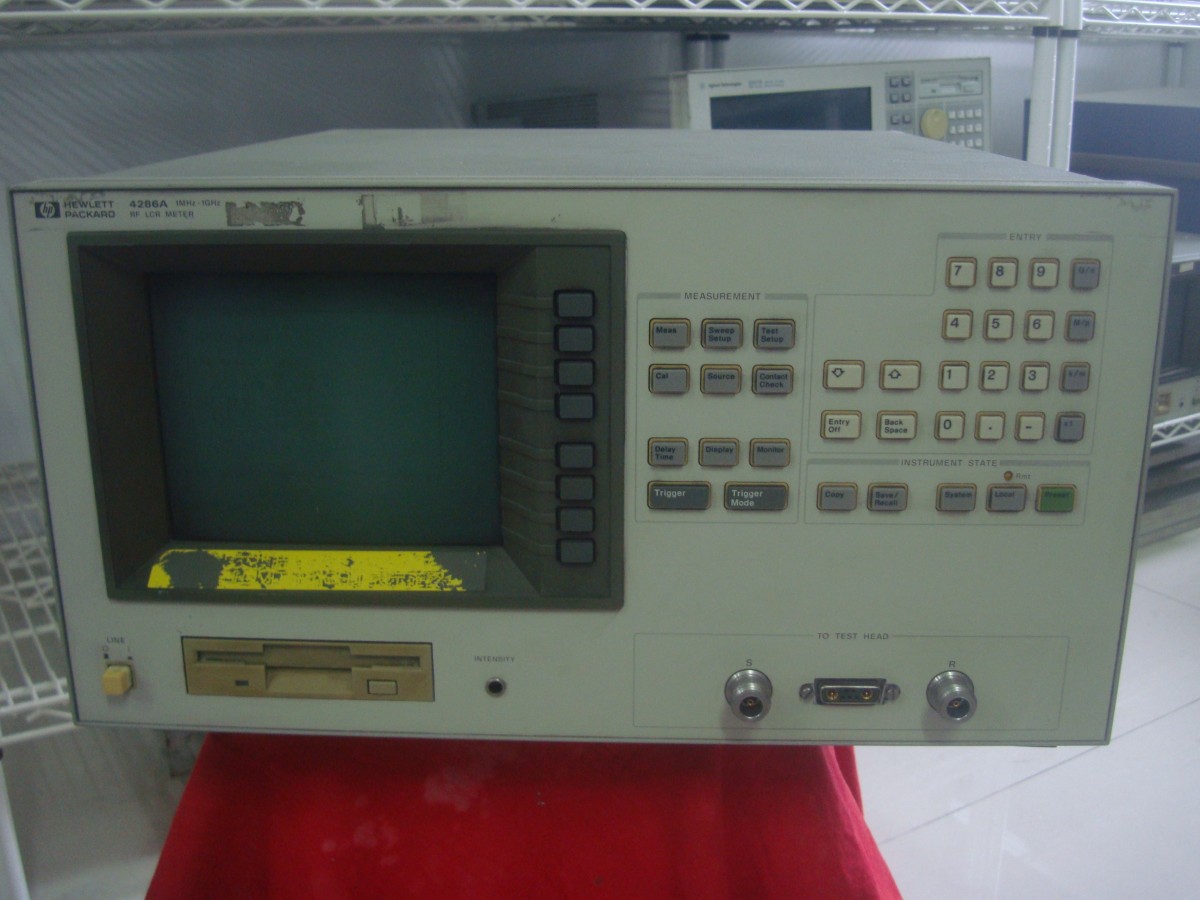

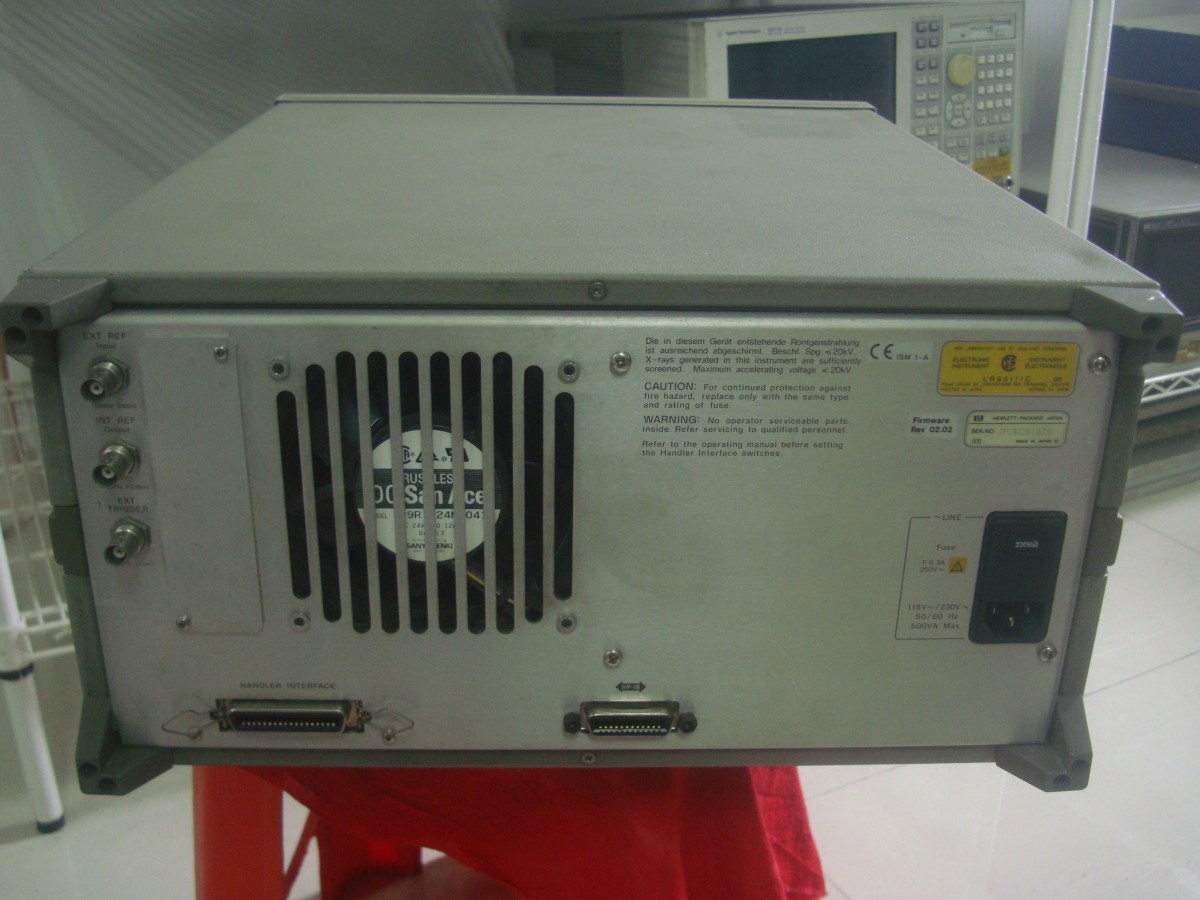

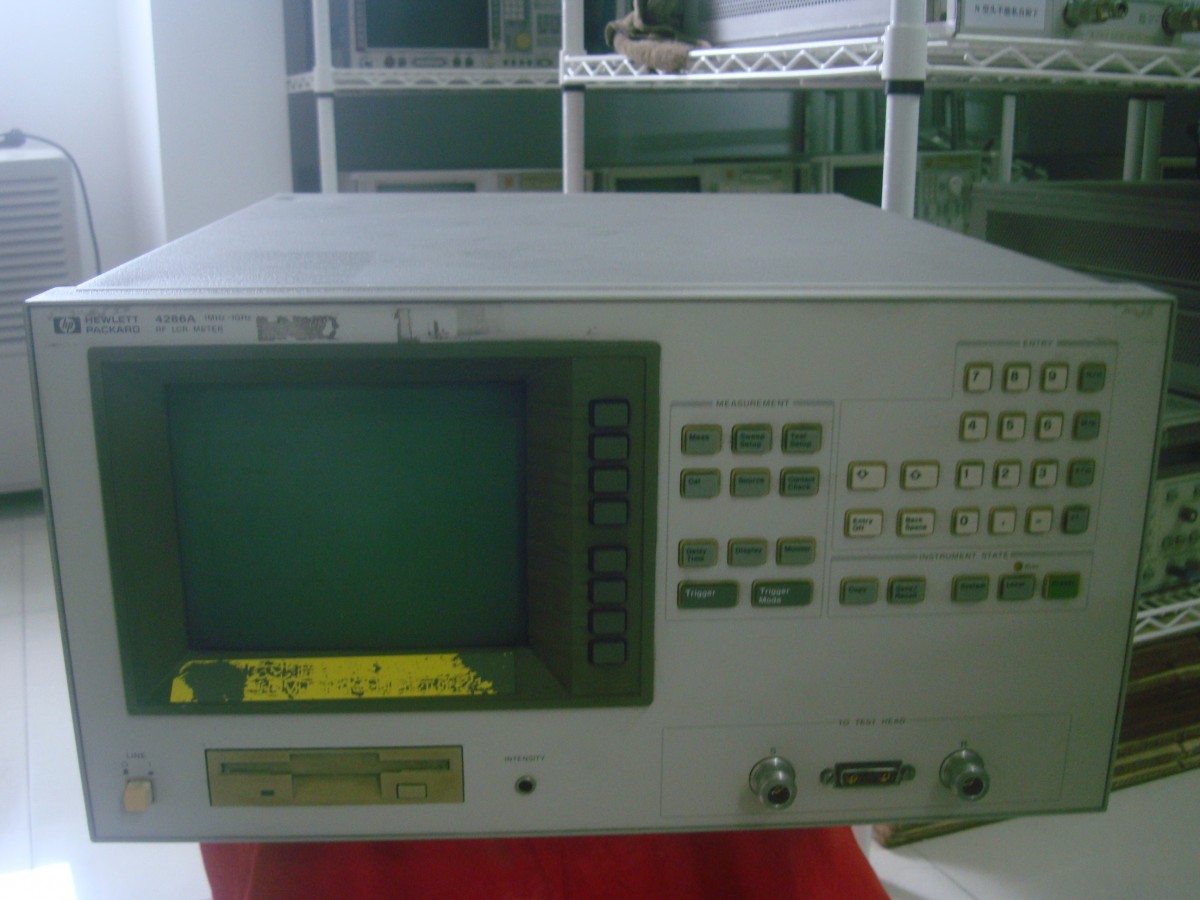

4286A LCR Meter

Test Frequency: 1MHz to 3GHz

Frequency Resolution: 100 kHz

Test Signal:

V:4.47mV～502mVf≤1GHz; 4.47mV～447mVf>1GHz

I:0.0894mA～10mAf≤1GHz;0.0894mA～8.94mAf>1GHz

Level Monitoring Function: Voltage, Current

Basic Z-axis accuracy: ±1.0%

Measurement Range: 200mΩ to 3kΩ, accuracy ≤10% at 1MHz

Measurement Time: 9ms per point (highest speed)

Rdc measurement: Suitable for contact inspection

Calibration: Open Circuit/Short Circuit/Load/Low Loss Capacitance

Compensation: Open circuit/Short circuit, Electrical Length

High-capacity storage: 30MB solid-state storage or 2GB hard drive (optional)

Interface: GPIB, LAN 10Base-Tse-T/100base-Tx Auto-Select, Processor Interface

8.4-inch Color LCD Display
