One, Brief Description:

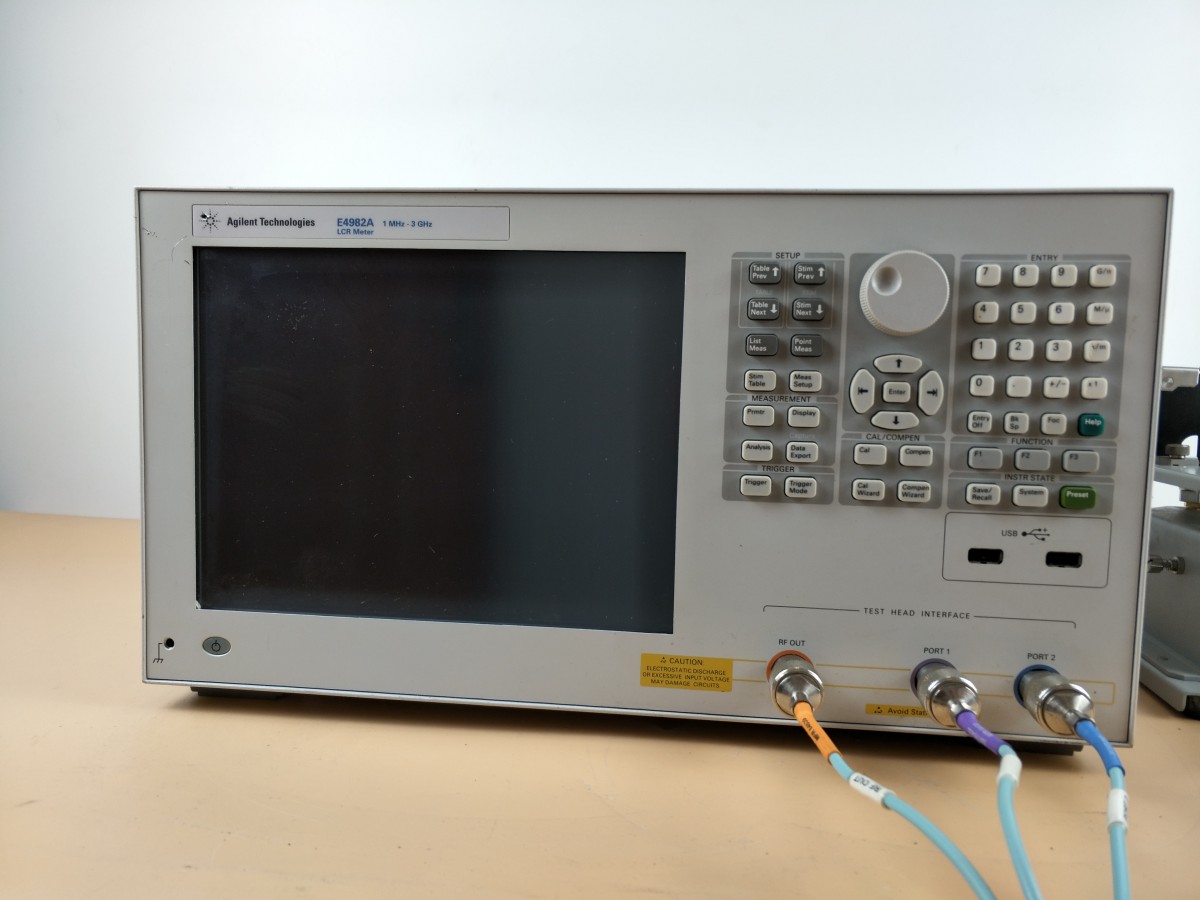

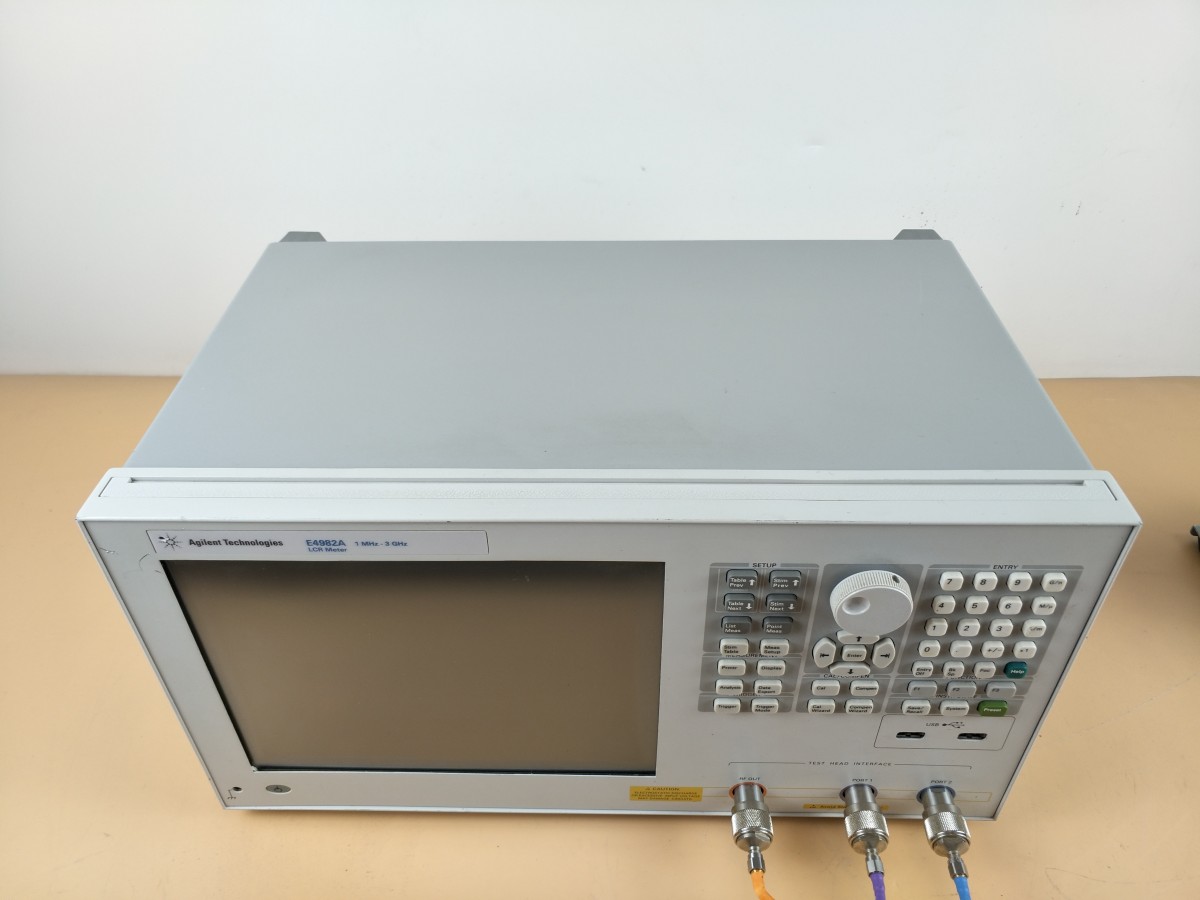

Product Name: LCR Meter
Brand: Sichuan DeTech Technology
Product Model: E4982A
Frequency Range: 1 MHz to 300 MHz, 1 MHz to 500 MHz, 1 MHz to 1 GHz, 1 MHz to 3 GHz
Two, Main Features and Technical Specifications:
Frequency
1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz, upgradeable
Measurement Time
High-Speed Measurement: 0.9 ms (Mode 1), 2.1 ms (Mode 2), 3.7 ms (Mode 3)
Basic accuracy and impedance range
0.8% basic accuracy and unmatched measurement repeatability
Wide impedance measurement range: 140 mΩ ~ 4.8 kΩ
More Features
SCPI commands and processor interfaces are compatible with the 4287A
Compact test head (same size as 4287A)
List measurement

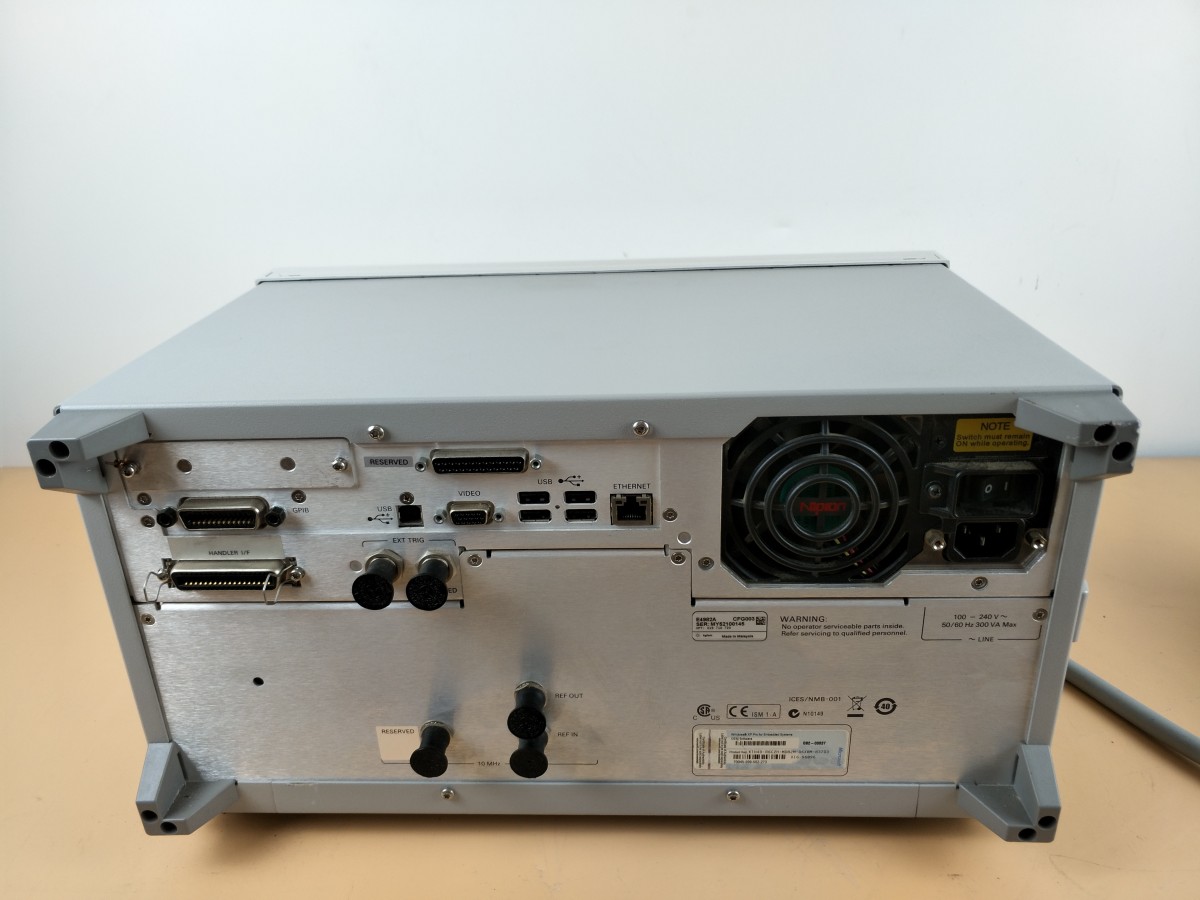

General PC Connectivity (GPIB, LAN, and USB)
3. Description:
The E4982A LCR meter offers excellent performance for manufacturing tests of passive components like SMD inductors and EMI filters, requiring impedance tests at high frequencies (1 MHz to 3 GHz). Beyond manufacturing tests, the E4982A is also suitable for R&D, leveraging its robust features (such as list measurements) to ensure quality.
