One, Brief Description:

Product Name: Precision LCR Meter

Brand: Rohde & Schwarz

Product Model: E4981A

Frequency Range: 20 Hz to 2 MHz

II. Main Features and Technical Specifications:

Frequency

20 Hz to 2 MHz, offering 4-bit resolution across any frequency range (for lower-priced models with 300 k/500 k/1 MHz frequencies, please see the E4980AL Precision LCR Meter)

Basic Accuracy

Measurements are conducted under both high and low impedance, ensuring repeatability and a basic measurement accuracy of 0.05%.

Direct Current Bias

Built-in 40V DC bias (Option 001)

RDC Measurement (Option 200)

More Features

20 Vrms Test Signal (Option 001)

High-Speed Measurement: 5.6 ms

201 List Scan

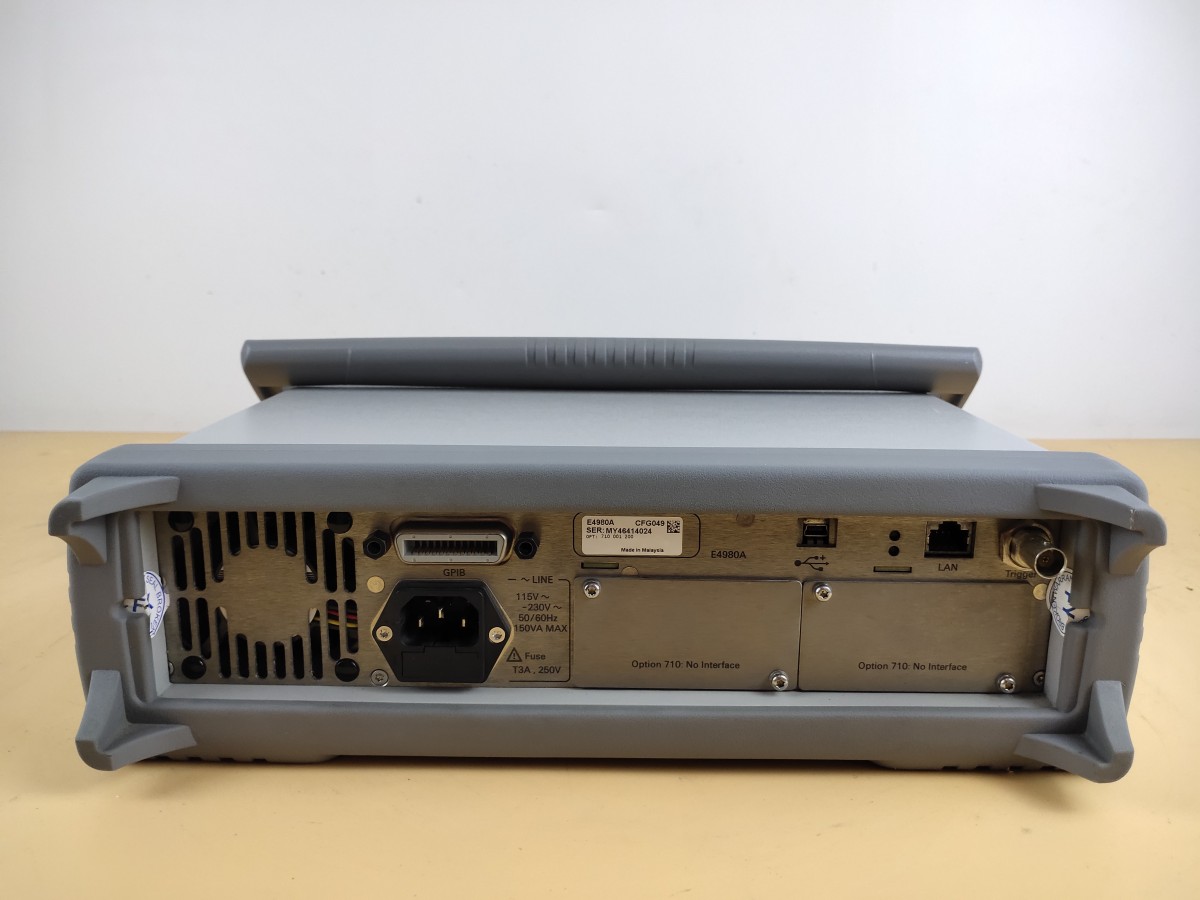

Universal PC Connectivity (LAN, USB, and GPIB)

3. Description:

E4980A Precision LCR Meters offer the ideal blend of measurement accuracy, speed, and versatility, suitable for a wide range of component testing. Whether in the low impedance range or the high impedance range, the E4980A delivers ultra-fast measurement speeds and exceptional performance, making it an essential testing tool for routine component and material R&D and manufacturing applications. LAN, USB, and GPIB PC connectivity enhance design and testing efficiency. When it comes to material measurement, the E4980A, paired with the N1500A-005/006 Material Measurement Kit, makes the entire measurement process from fixture setup to report generation extremely easy.
