I. Brief Description:
Product Name: Capacitance Meter
Brand: TE Connectivity
Product Model: E4981A
Frequency Range: 120 Hz - 1 kHz
120 Hz - 1 MHz
2. Key Features and Technical Specifications
Measurement Time
High-Speed Measurement: 2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz)
Basic Accuracy
C-D Test: 0.07%, 0.0005
More Features
9 Compartment (Bin) Classifier
256 Multi-channel Calibration
SCPI commands and processor/scanner interface are compatible with 4268A and 4288A.
Compensate the level of the test signal for high-value ceramic capacitor testing.

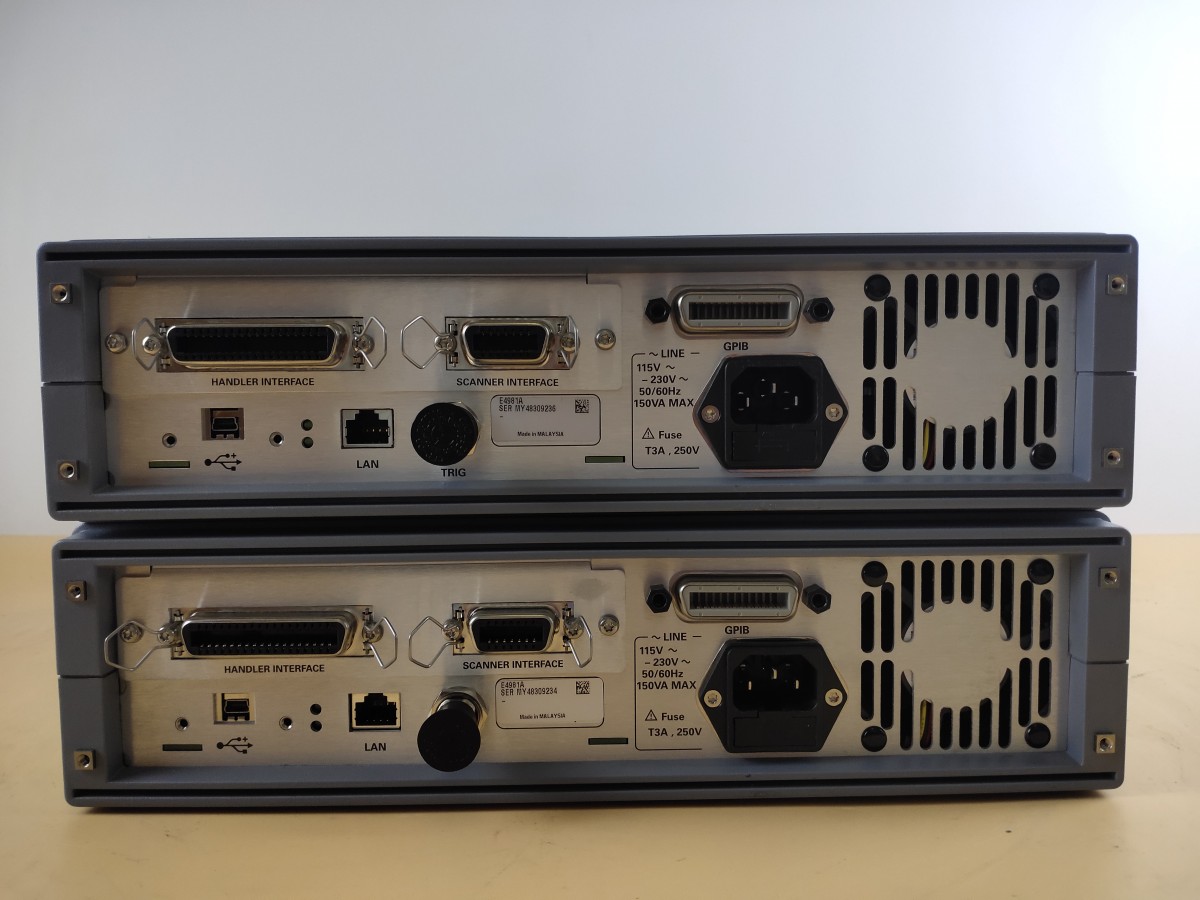

Universal PC Connectivity (LAN, USB, and GPIB)
Three, Description
The E4981A Capacitance Meter provides high-speed, reliable measurements for ceramic capacitor testing on production lines. The E4981A can measure capacitors from low to high values, thereby increasing test throughput while ensuring excellent quality of components in ceramic capacitor testing.
