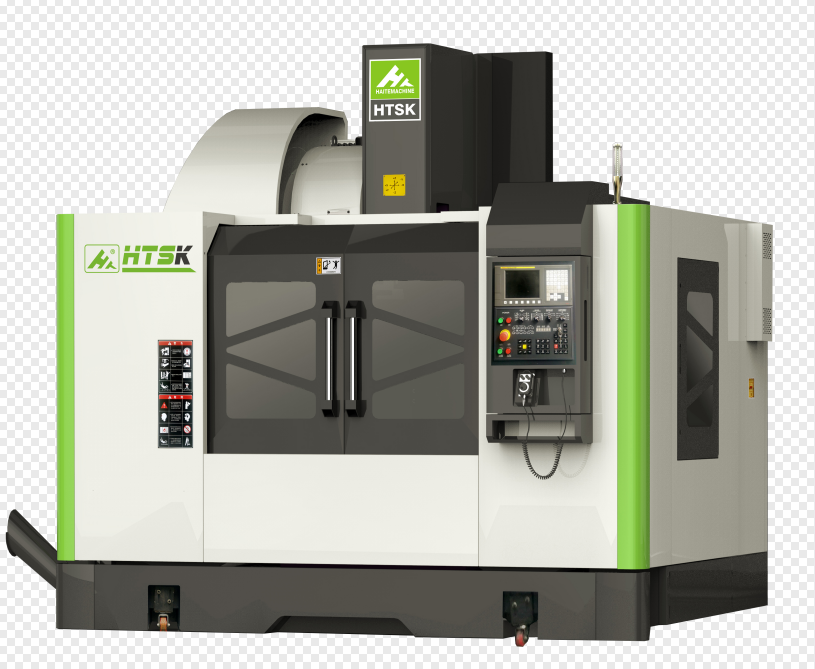

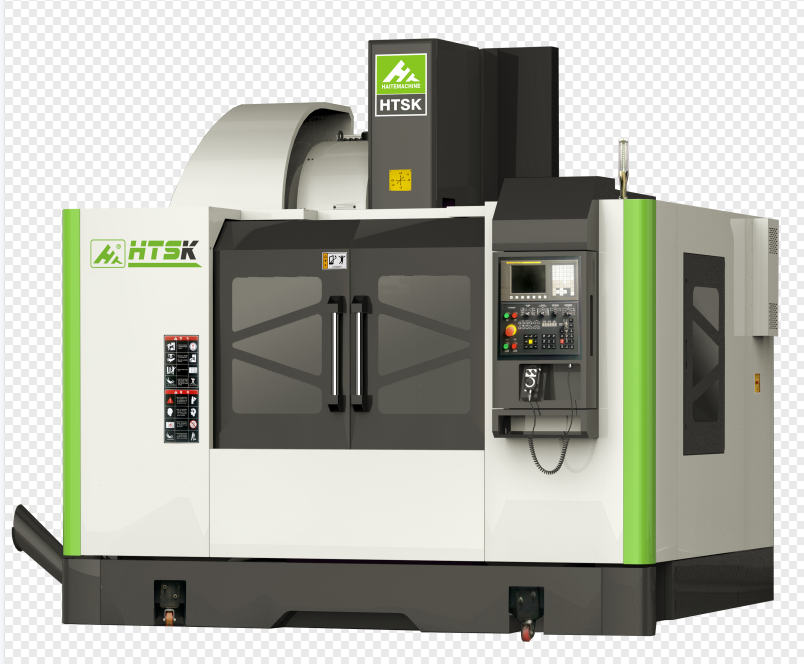

The 850 machining center is a high-value machining center with excellent cost-performance.Widely used in the processing of box parts, housing parts, disc-shaped parts, etc. in industries such as aerospace, automotive, molds, equipment, and machinery manufacturing.

850 CNC Machining Center Price

The price of the 850 machining center has garnered attention from many friends in the machinery industry. Generally speaking, the prices of domestic 850 machining centers vary widely, ranging from a few hundred thousand to over three hundred thousand yuan. There are numerous factors influencing the price of the 850 machining center. Here are several key aspects that largely affect the price.

1. Brand

Prices vary among different brands by tens of thousands, even hundreds of thousands.

2. System

Standard domestic systems and imported systems generally differ.30,000

3. Tool magazine

Do you require a tool magazine? The choice of tool magazine style may also affect the price.

4. Spindle

The form of the main shaft varies, such as whether a direct-drive main shaft is needed, whether central water outlet is required, etc., with prices differing accordingly.$10,000 - $20,000 varies

In addition to this, factors affectingThe price of the 850 machining center also depends on other factors, such as the need for a fourth axis, the requirement for taller columns, and so on.

850 Machining Center Specifications

　　900*500*500 mm travel at X*Y*Z coordinates

Workbench Specifications 1060mm x 500mm

Workbench Load Capacity kg 600

Spindle center to column guide rail facemm 575

Spindle face to table surfacemm 120-620

　　X, Y, Z cutting feed rate mm/min 1-6000

　　X, Y, Z rapid movement speed m/min 24/24/22

Spindle speed range r/min 50-8000

Spindle taper bore BT40

Main shaft motor power kw 7.5

WorkbenchT-slot/Slot width/Slot pitch mm 5/18/100

Positioning Accuracy mm 300±0.005

Repeatability positioning accuracy mm 300±0.003

Machine Tool Weight T 6.8

Live-action photo of customer's workshop for 850 CNC machining center
