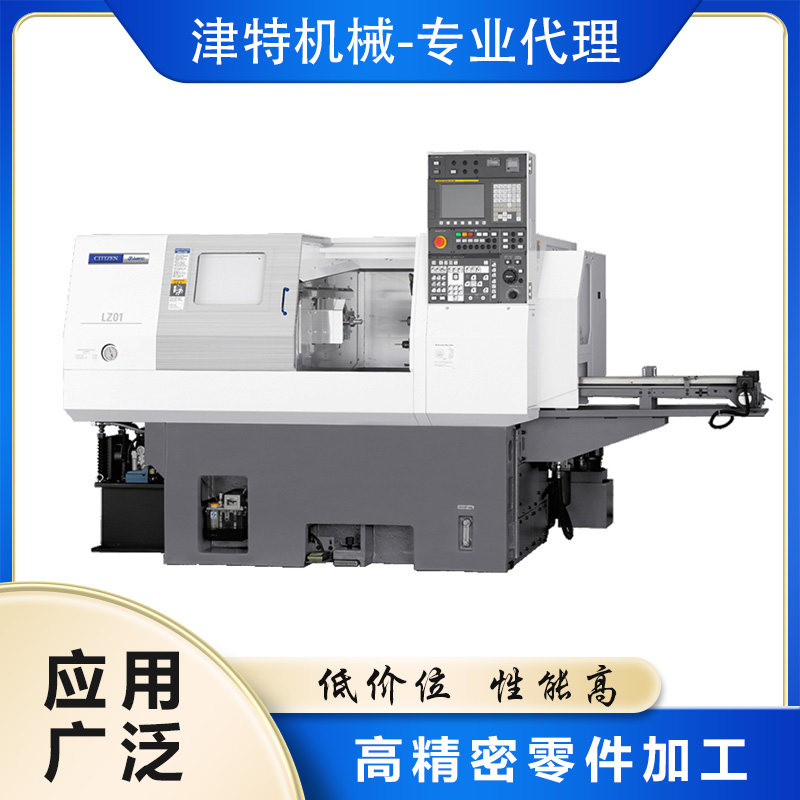

High-speed loading lathe chuck carriage

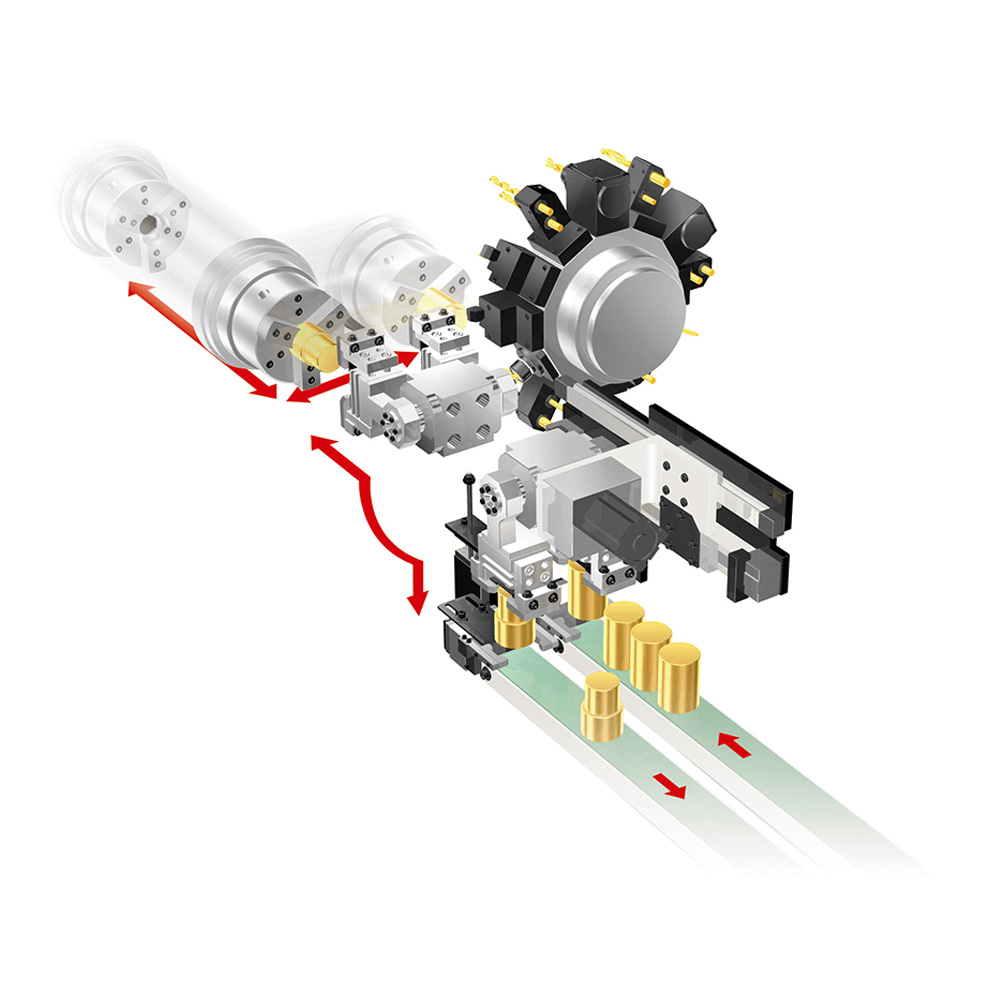

Equipped with a high-precision chuck lathe in a general-purpose lathe, featuring a loading head. The linkage between the loading head and the spindle significantly reduces loading time.

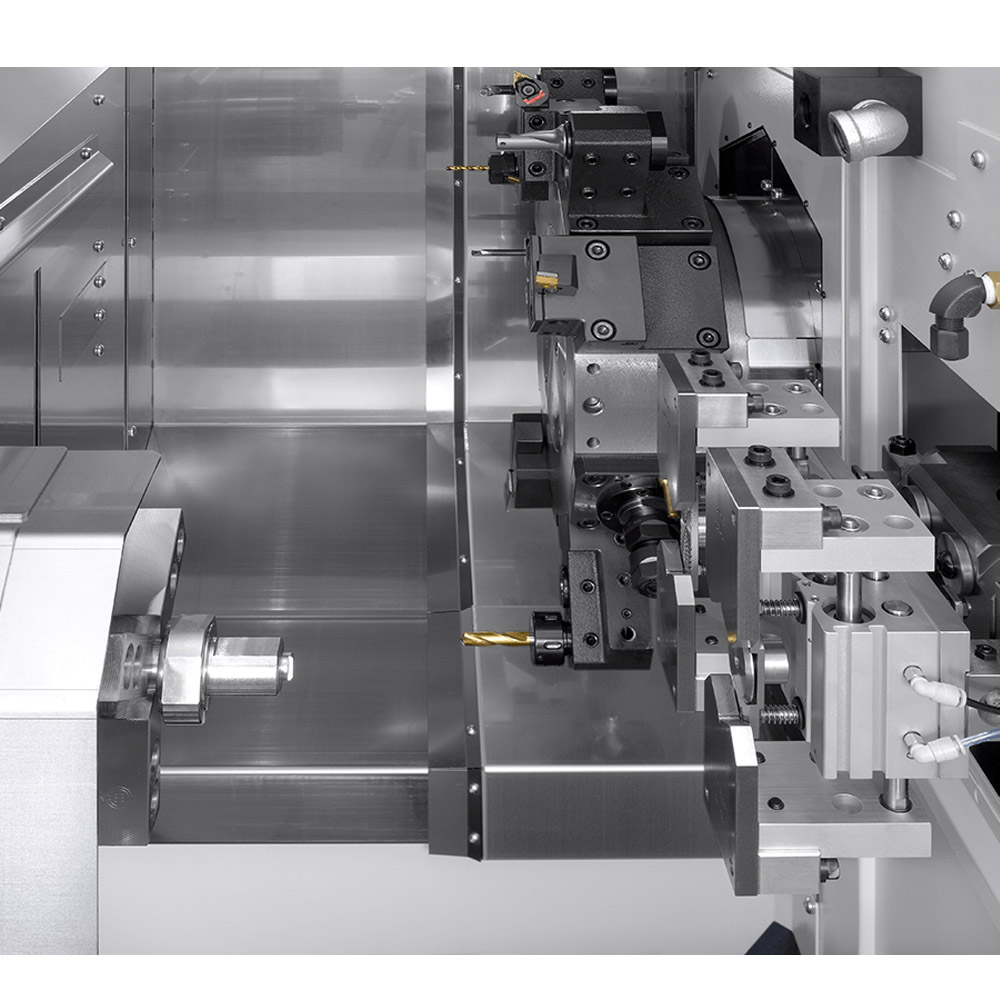

The tooling table is a single sliding carriage (01RY) for the Y-axis only, allowing the spindle to bear the X-axis and the linear guide Z-axis, thereby achieving a combination of rigidity and high-speed movement.

 A comprehensive system structure centered around the loading head addresses various automation requirements.
