Note: This set of drawings is a pre-sale drawing, during the pre-sale period,Contact our online customer service, and receive an instant $100 discount upon payment!Payment successful, goods will be dispatched within 10 business days. (Original price will be restored immediately upon official listing!)
| Drawing Properties | |||
| Item Number: DC1038 | |||
| Open Area:13 meters | |||
| Drawing content | ||||
| Comprehensive building instructions, floor plans, elevation views, section views, staircase details, door and window dimensions, and node details. | ||||
| Basic flat construction drawings, reinforcement details for beams, columns, floor slabs, and large-scale drawings included. | ||||
| Includes floor plans for water supply and drainage levels, water supply and drainage system diagrams, and detailed drawings, etc. | ||||
| Inclusive of power distribution system diagrams, lighting plans for each floor, power outlet layouts, low-voltage wiring layouts, lightning protection and grounding layouts, etc. | ||||
| Design Features | ||||

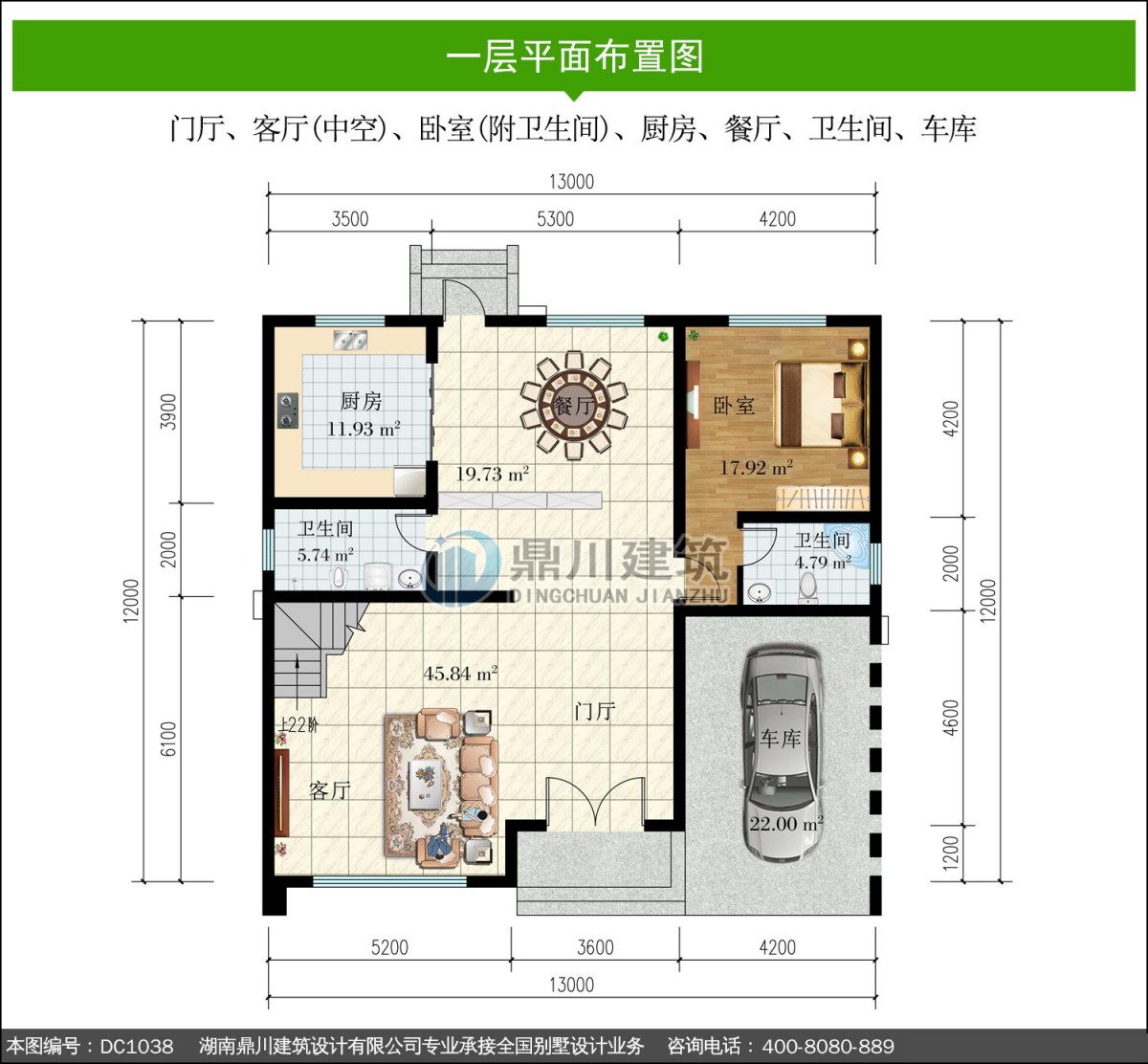

| Entrance hall, Living room (loft), Bedrooms (with attached bathrooms), Kitchen, Dining room, Bathroom, Garage | ||||
| Lounge, bedroom (with en-suite bathroom, balcony), 2 bedrooms, bathroom, balcony | ||||
