Note: The drawings are designed by Hunan Dingchuan Architectural Design Co., Ltd. and have been registered for copyright protection with the National Copyright Administration. All drawings are designed in accordance with national building industry standards, and the structural safety is subject to mandatory legal liability within the architectural design industry. If contractors encounter difficulties understanding the drawings or require technical support during construction, please call our customer service at 400-8080-889, and we will be happy to assist you.
| Drawing Attributes | |||
| Item Number: DC1027 | |||
| Room size:13 meters | |||
| Drawing content | ||||
| Includes general construction description, floor plans, elevations, sections, staircase details, door and window sizes, and joint details. | ||||
| Basic floor plans, beam, column, and floor slab reinforcement details, as well as large-scale drawings. | ||||
| Includes floor plans for drainage, water supply, and detailed drawings | ||||
| Inclusive of power distribution system diagram, lighting plan for each floor, socket layout, low-voltage layout, lightning protection and grounding layout, etc. | ||||
| Design Features | ||||

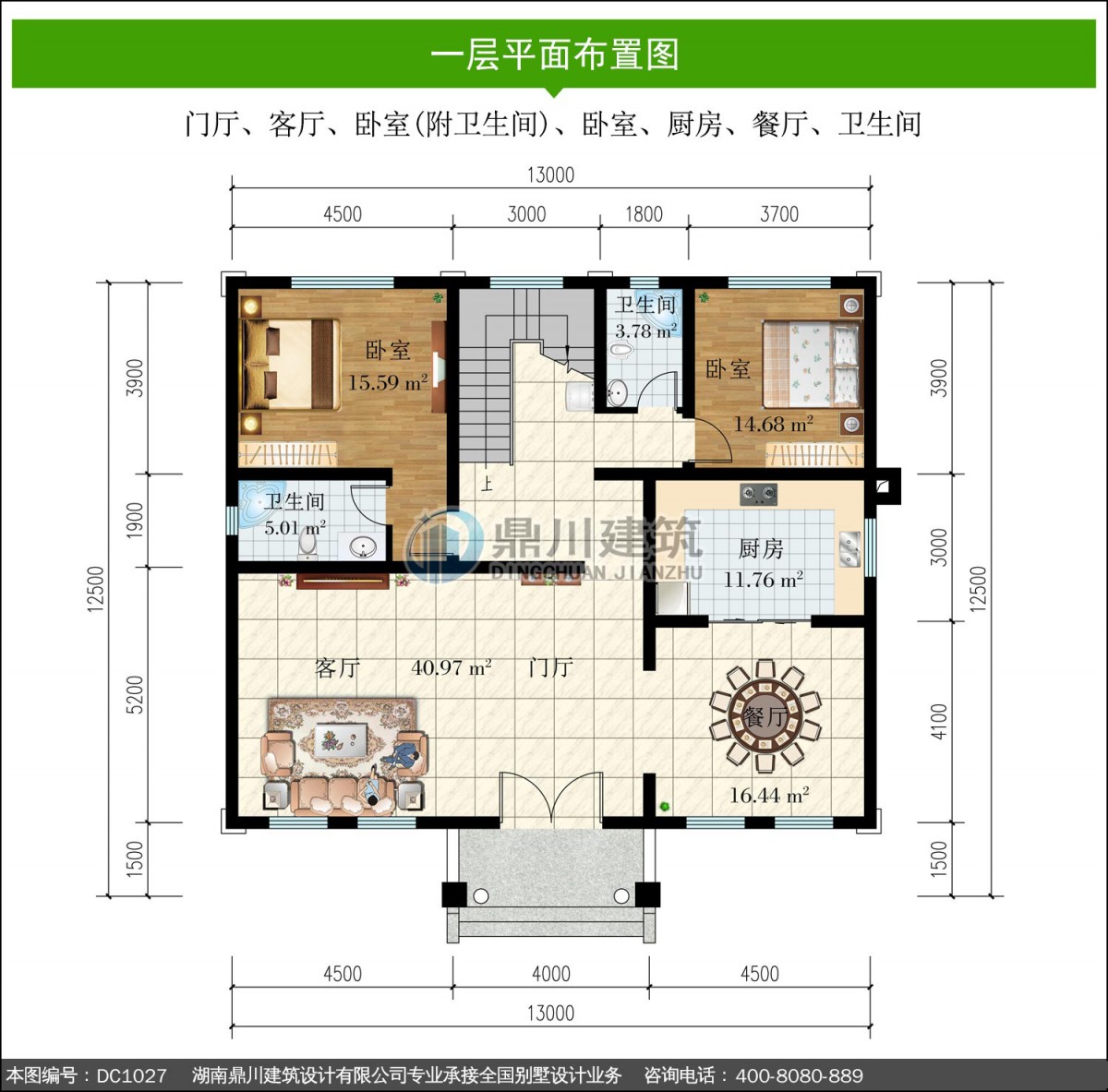

| Entrance hall, living room, bedroom (with bathroom), bedroom, kitchen, dining room, bathroom | ||||
| Living room, bedroom (with bathroom, closet, study), 2 bedrooms, bathroom, balcony | ||||

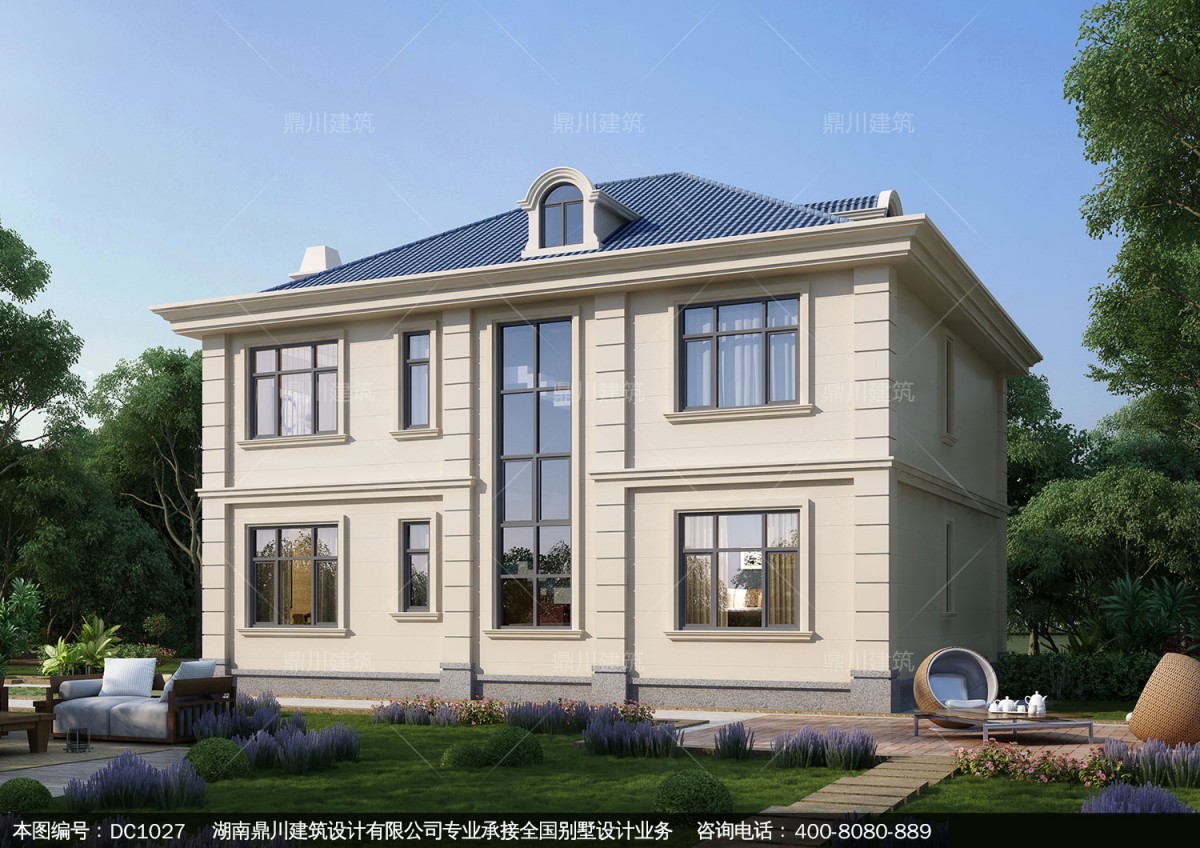

This set of drawings includes 62 full sets of A3 construction plans + 2 color renderings, with printing included (default is one copy sent, additional copies at an extra 100 RMB per copy), express shipping with free delivery, no electronic version available.
