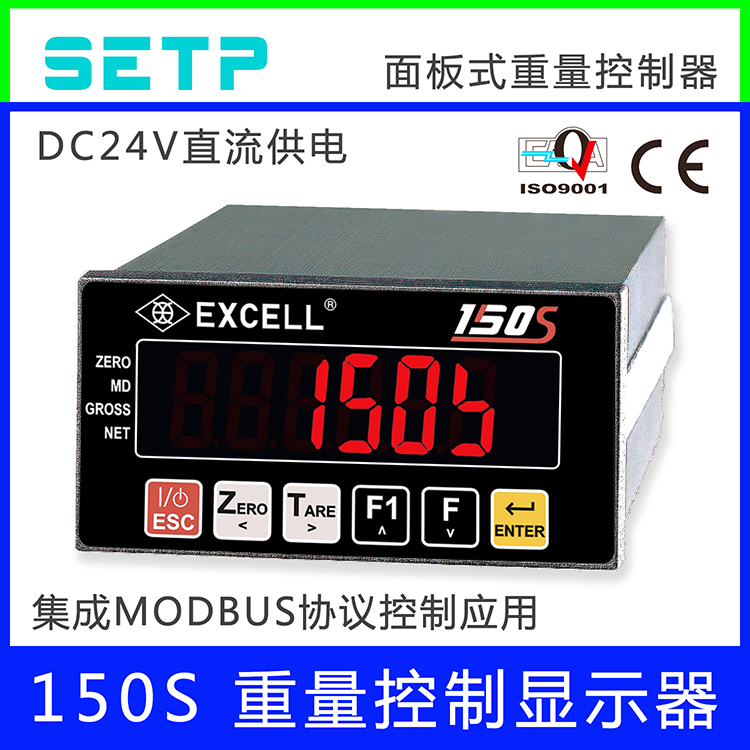

Feature Description
• Exchangeable Power Supply: Designed with a DC12~DC24V power source, featuring a wide voltage range compatibility.
• High-performance A/D Interface: 0.12 VD high sensitivity, 120 samples per second, measurement range -0.1 mV/V ~ 4.0 mV/V.
• Compact in design: 96 (Length) x 48 (Height) x 140 (Depth) mm, easily stored in a control console or mounted on a control panel for seamless integration into the system.
• Panel size: 96 x 48 mm; Front panel with IP65 splashproof protection; space-saving design.
High-performance A/D interface
• Input Sensitivity: 0.12uV/D and above
• Internal Analysis 1 / 1,000,000
Sampling Speed: 120 times/second
• Application Range - 0.1 mV/V ~ 4.0 mV/V
• SensorPower Supply: 5 VDC, 120mA (capable of connecting 8 sets of 350 Ω load cells)
Flexible calibration methods
• Typically 2-point calibration
• Suitable for 5-point linear calibration
• Enter voltage values mV/V directly; no actual weight load required
• Readable sensor output voltage value mV/V for future maintenance convenience
• Flexible measurement modes, capable of independently completing simple systems or connecting to PLCs to achieve complex systems
• Features the function of supplemental material replenishment
Leakage Hand/Automatic Operation
• Settable batch recycling times
• Weight and frequency cumulative
• Features an adjustable digital filter, effectively suppressing vibrations from the field environment, ensuring high stability.

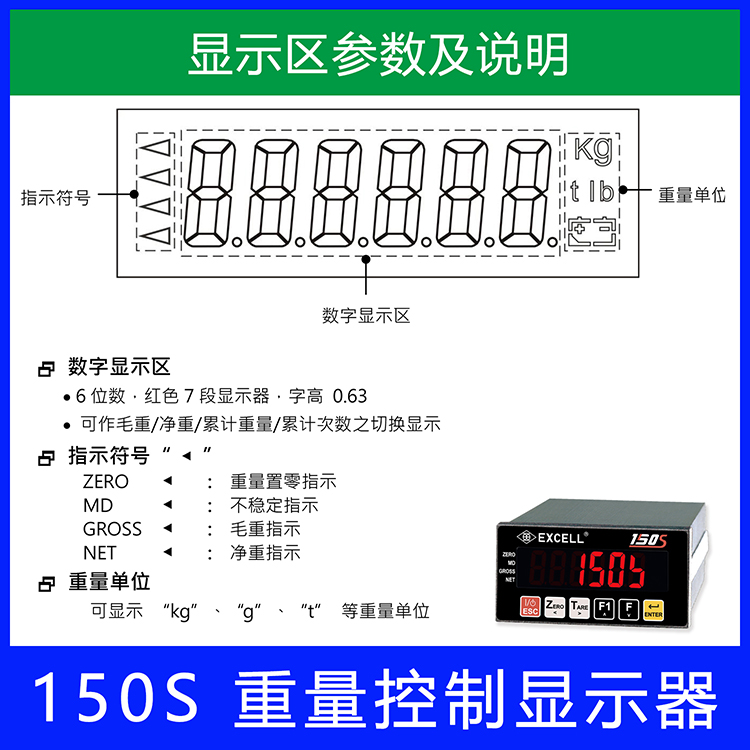

• Six-digit red LED display (character height 16mm), capable of displaying weight units such as "kg", "g", "t", "lb"; also features switching displays for gross/net weight, cumulative weight, and cumulative count.

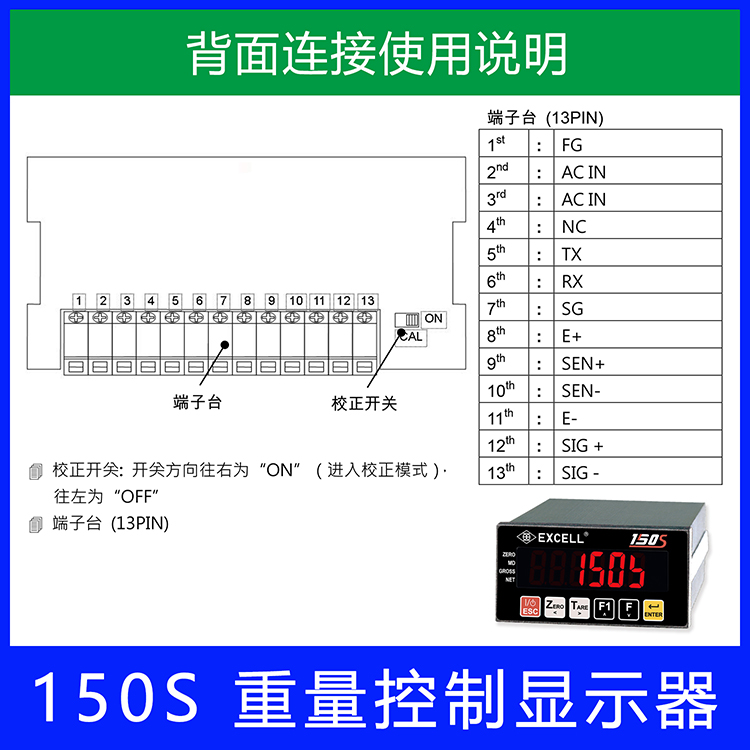

• Integrated with a set of RS232C full-duplex and Current Loop unidirectional output serial interfaces
• Features automatic detection for convenient on-site maintenance.
Spec Sheet
• Power Supply: DC12~DC24V
• Operating Temperature Range: 0°C ~ 40°C (32°F ~ 104°F)
• Applicable operating humidity: ＜85% R.H.
• External Dimensions: 96 × 48 × 140mm (W x D x H)
• Display: LED 6-Digit Height 16mm
Safety Certification
OP-01 RS-422/RS-485/Rs-232 Interface.
OP-02-1 BCD Parallel Output Interface (Open Collector)
OP-02-2 BCD Parallel Output Interface (TTL).
OP-03 Digital Output Interface (4~20mA, 0~10V).
OP-04 I/O Controller (4 In / 4 Out) + Setpoint Input Interface.
OP-04E Relay Output Interface (4 In / 4 Out)
OP-04C Hi, Lo, OK Input Interface (BCD)
OP-04F Setpoint Input Interface (BCD)
OP-05 I/O Controller (8 In / 8 Out) Interface
OP-05E Relay Input Interface (8 In / 8 Out)
