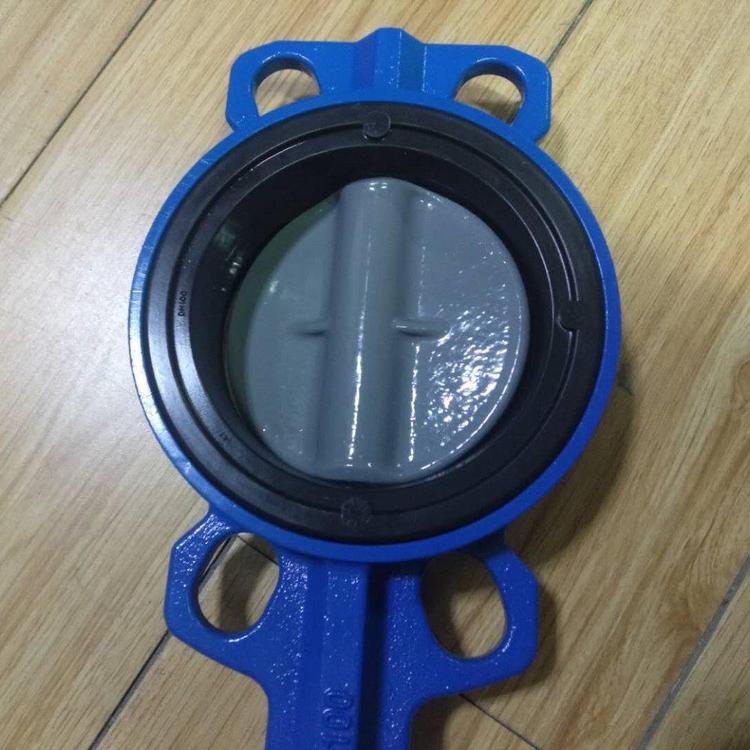

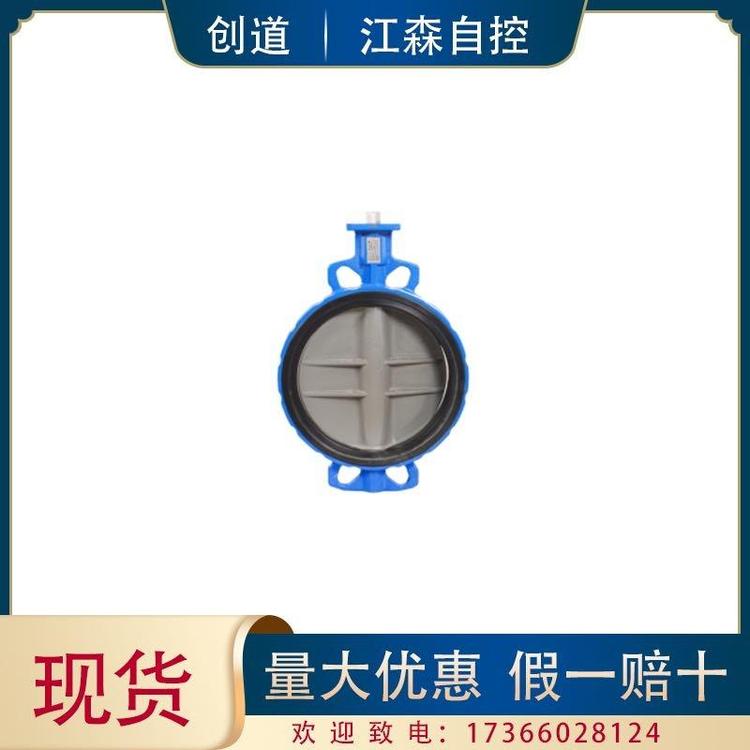

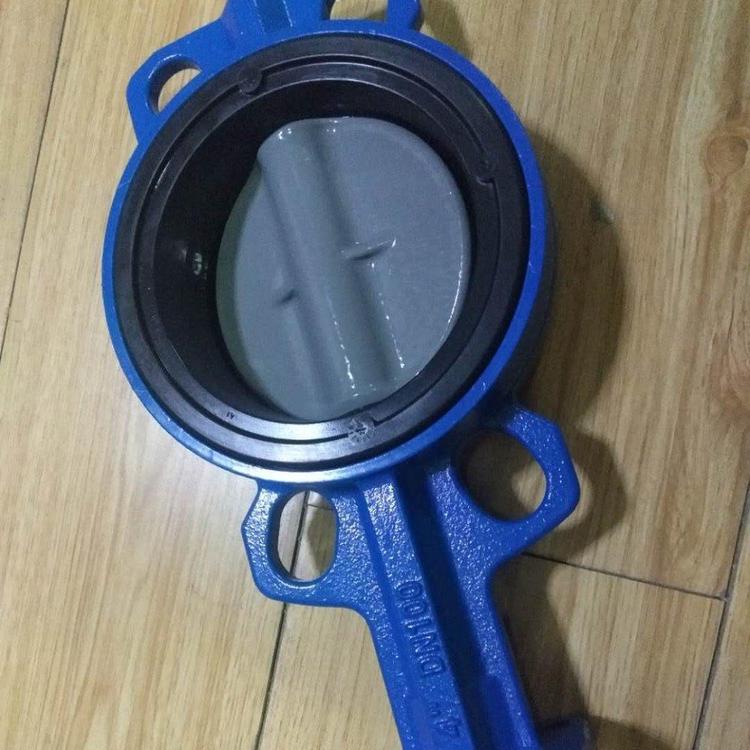

Jasong Controls VF6000 Series Electric Butterfly Valve

The Johnson VF6000 series butterfly valves are used for the on/off and flow control of hot water, chilled water, and cooling water in HVAC and refrigeration systems. The VF6000 series includes all models from DN50 to DN600. With the option of switch-type and analog actuators, different control modes can be achieved. The valve bodies and actuators are pre-commissioned at the factory, requiring only proper installation at the site.

Bore Size: DN50 - DN600

Shut-off Pressure: DN≤001.6 MPa; DN≥501.0 MPa

Nominal Pressure: PN16

Valve Body Material: Cast Iron, GG25 or GGG40

Valve Stem Material: Stainless Steel, 410

Housing Material: Aluminum Alloy

Surface Coating: Epoxy Resin

Power: 220VAC ±10% 50/60Hz

Product Features:

Groove seat valve: Sealed stably and reliably, requiring less torque, ensuring a longer service life.

Professional seal face design: Large wide edge and arc design, suitable for various flange connections

Set intermediate thrust rod: Prevents the lower valve rod from detaching from the valve body due to frequent vibration.

Automatic clutch: Automatically shifts during electric drive, safe, convenient, and reliable to use.

Safety Protection Design: Over-torque Protection, Anti-condensation Heater (VA300/VA200)

Precision planetary gear transmission: High torque transmission, with self-locking feature, high energy efficiency (VA300/VA200)

Valve Position Accuracy Display: Clear indication of the valve's open/close position

Product Details:

The VF6000 series butterfly valves are used for on/off and flow control of hot water, chilled water, and cooling water in HVAC and refrigeration systems. The VF6000 series includes all models from DN50 to DN600. Equipped with both switch-type and analog actuators, various control modes can be achieved.

The valve bodies and actuators are already pre-adjusted at the factory. On-site, simply align open with open and close with close, then insert the screws to connect.

1. We guarantee a full refund or exchange within 7 days due to quality issues.

Description: Intentional product damage by the user and non-quality issues are not covered under this clause.

2. One-year warranty and 7-day exchange.

3. Not covered under the free warranty:

① Product damaged by human error

② Over one-year warranty period

③ User's improper operation results in damage to the main components of the product

Nanjing Chuangdao Technology Co., Ltd., supplying Johnson Controls fan coil two-way valves, bulk orders receive discounts.
