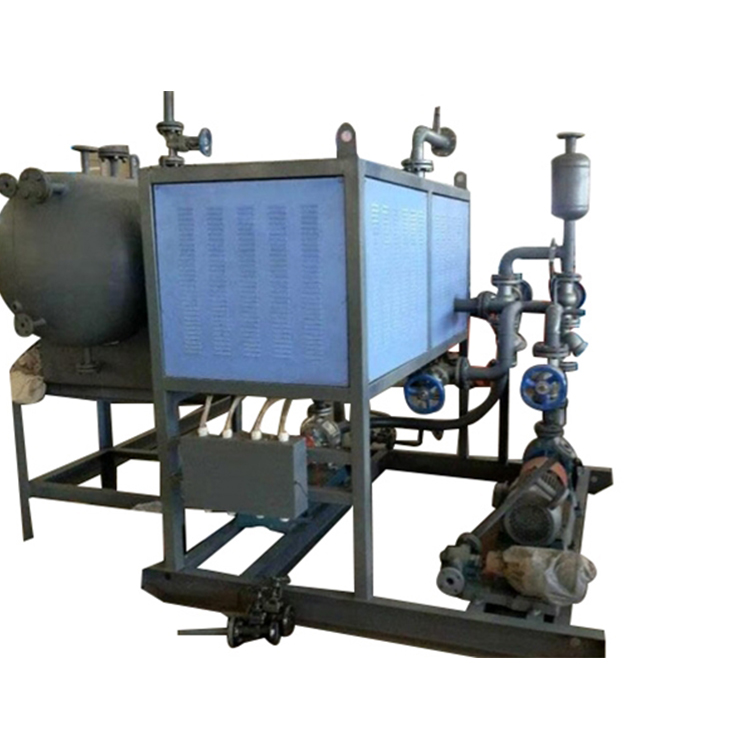

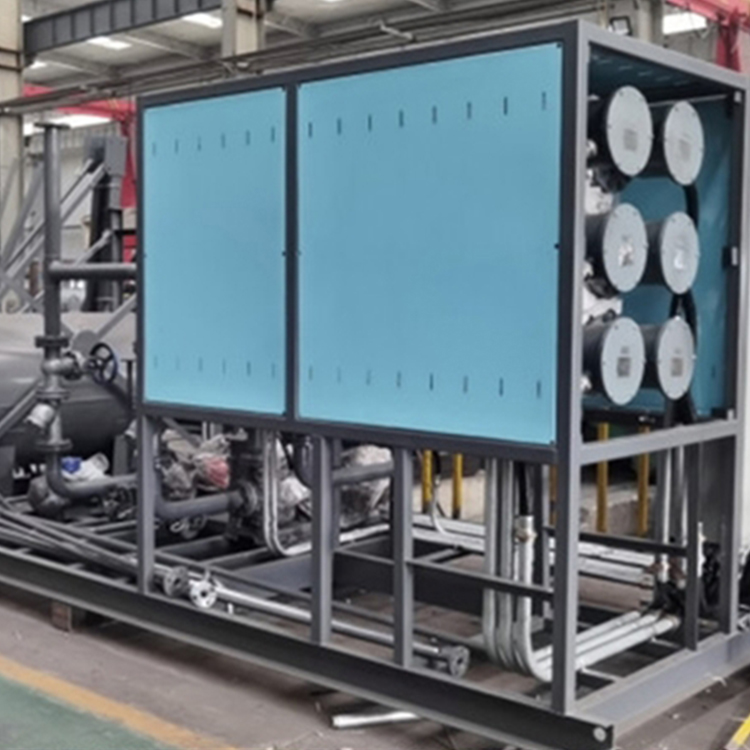

Electric Heating Thermal Oil Boiler Product Introduction:
Fuel Options: Electric (380V)
Heat Transfer Medium: Thermal Oil
Output Temperature: Up to 320 degrees, PID ±1 degree
Output Efficiency: ≥98%
Output Power: 9KW-2400KW, equivalent to 1-20 million BTUs/hour
Output Options: Contactor / Solid State Relay / Thyristor
Product Introduction
——Electrically heated thermal oil boiler, also known as electrically heated organic heat carrier boiler, utilizes electricity as the power source and thermal oil as the heat transfer medium. It serves as a high-temperature heat source for various environments below 320°C and is widely used in industries requiring high-temperature heating or drying. This product boasts high temperature, low pressure, precise temperature control, and high thermal energy utilization. An optional steam generator is also available to produce saturated steam of up to 1.3MPa for the user's needs.
Heat is generated by electric heating elements immersed in the thermal oil medium. Using a circulating pump, the thermal oil is forced into a liquid phase circulation, transferring heat to one or more heating equipment. After the heat is unloaded by the heating equipment, it returns to the heater via the circulating pump, absorbs more heat, and then transfers it to the heating equipment again. This cycle repeats continuously, achieving the continuous transfer of heat, thereby raising the temperature of the heated object to meet the heating technical requirements.
Technical Features:
Noiseless, clean and hygienic, eco-friendly products.
Utilizing stainless steel heating tubes or imported alloy steel material electric heating tubes ensures the safe and long-term operation of the boiler.
Choose factory-standard control cabinets, with fine craftsmanship, standardized production, and high protection grade.
Electrically powered heat source with zero exhaust heat loss, achieving an efficiency of over 98%.
Units with thermal power below 300,000 kcal are integrated mechanical and electrical, while those above 300,000 kcal have separate furnace and control cabinets. Easy for installation, maintenance, and upkeep.
The terminal blocks feature detailed wiring markings, providing convenience for on-site installation.
Fully automatic control during operation, featuring electric heating element walking cut-in/cut-out, cyclic start/stop, automatic water refilling, water shortage, over-temperature, automatic alarm, and leakage protection functions.
According to customer requirements, design thermal energy storage equipment utilizing peak-valley electricity during the night.
Basic Features
1. Imported Microcomputer P.I.D. Intelligent Temperature Controller (Fast heating/cooling, accurate and stable temperature)
2. Automatic exhaust on startup, oil pump capable of reversing to suck back oil, return oil temperature detection can be displayed
3. Isolated electrical control box (safe, reliable, and long-lasting)
4. Seamless carbon steel pipes (with low resistance, less carbon accumulation, and even heating)
5. Dual-power heating design (with imported dual-group P.I.D. temperature controller, wide applicability, significant energy-saving)
6. Premium electrical components selected, including OMRON, FUJI, TE, LG WEST, ABB, CARLO, LS, and SCHNEIDER.
7. Premium high-temperature pipeline components from Europe and America, German SPECK oil pumps (magnetic pumps, oil-tight)
8. Comprehensive safety measures, robust protection systems, and a fault display system (no need for professional maintenance or repair)
Optional Features
1. RS485 communication, enabling remote automated management
2. PLC control with high reliability and strong anti-interference capability
3. Blow-Back Oil Recovery Function
4. Negative Pressure System Operation
5. Electric control cabinets, explosion-proof piping design
6. Multi-point temperature control units available for professional customization
7. Horsepower and heating power of oil pumps are customizable.
8. Contactors, solid-state relays, thyristors, and various other configurations available
Safety Measures
1. Media Shortage: Alarm Indicator for Low or No Oil
2. Phase Sequence Detection: Phase Loss and Phase Reversal Alarm Indicator
3. Pump Overload: Alarm Indicator for Pump Overload
4. Stuck Alarm: Abnormal Heating Alarm Indicator
5. Pipe Blockage: BY-PASS Pressure Relief Loop
6. Exhaust Function: Automatic (Manual) Exhaust
7. Pressure Monitoring: Stop Heating on Abnormal Pressure
8. Temperature Anomaly: Automatic Power Cut-off upon Overheating
9. Power Short Circuit: Circuit Breaker Trip for Power Disconnection Protection
10. Emergency Stop Switch: Stop Machine Button for Emergency Use
