Servo drives and PLC control
Intelligent human-machine interface, easy and quick parameter settings
Alarms indicate for easy troubleshooting.
Stock (Option) of synchronized equipment and telescope tube sliding head
I/O and interface with any or CNC lathe types
Sleeve-style front rest
Workpiece Length Inspection Feature
Electrical control systems comply with CE standards.
Feasible to feed steel stock inventory
Remote Control for Easy Operation
| Specs | SN542 S2 |
| Diameter | 5-42mm |
| Rod length: 1.2/1.5 (m) | 2500/3200/3700mm/4400mm |
| Loading System | Load-bearing bracket |
| Carrying Capacity | 280mm |
| Side-mounted | Left to right: magazine article / right to left: front of magazine |
| Spindle Housing | Fixed/Swing |
| Reception lounge | Interchangeable bushes |
| Synchronize | Mechanical |
| Driver | Servo driver |
Guidance | Fluid Passageway (Circular) |

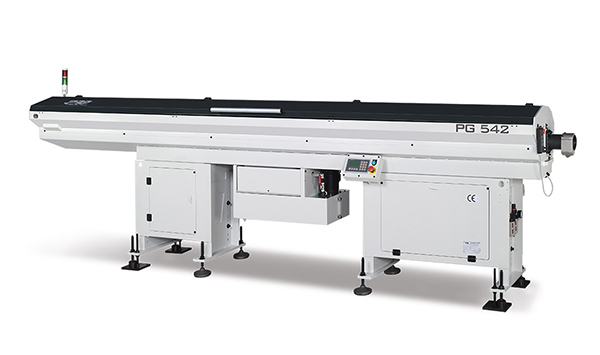

Oil Film Automatic Bar Feeding Machine
Bar diameter: ø 5.0mm ~ ø 42mm
Oil film, high speed, noiseless.
Multiple parameter settings, abnormal detection, function display.
Driven by AC servo motor.
PLC control loop adopted, high stability, easy operation.
High rigidity structure, sturdy.
Mechanical synchronous device, suitable for center-type CNC lathes, featuring high speed and stability.
Quick-release rubber hose, fast and easy replacement.
| Model | PG 542 |
| Bar diameter |  ø5mm(3/16")~42mm(1"21/32) |
  ø5mm(3/16")~36mm(1"13/32 ) | |
| Hose size | 13/17/21/26/28/33/36/38/39/43 |
| Bar stock capacity | 305mm ø10mm x 30(bar) |
| Fuel Tank Capacity / Fuel Specification | 40(L)/ISO CB 150 |
| Atmospheric Supply | 5-7 kg/cm2 |
| Power Supply | 3Phase 220V 16A 50/60HZ |
| Model | 25 | 32 | 37 |
| L | 3470 | 4130 | 4670 |
| A bar length | 2600 | 3260 | 3800 |
| B | 276 | 276 | 376 |
| C | 1140 | 1320 | 1850 |
| H | 850~1300 | 850~1300 | 850~1300 |
| Weight | 720kgs | 750kgs | 780kgs |
