MH Pulse Power Supply Features:

Protected against overvoltage, undervoltage, overheat, overcurrent, missing phase, short circuit, and overload, with high stability and reliability. (Customizable to various power ratings as required.)

Soft Start Feature: Continuous setting from 1-120 seconds, with no overshoot in output.

Digital Communication Function: Offers multiple communication interfaces such as RS485/RS232/CAN/TCP/IP/profibus, enabling data connections with touchscreens, computers, PLCs, and more.

Voltage/Current Signal Feedback: Offers feedback for voltage or current signals such as 0-5V, 0-10mA, 0-20mA, and 4-20mA, and simulates quantity voltage/current signal sampling.

Voltage Compensation Feature: Offers line voltage drop compensation to reduce voltage drop issues caused by longer connection lines in the output circuit.

Voltage/Current Regulation Switch: Auto-switching between VC/CC voltage/current regulation

Reversing and Polarity Inversion: Can invert the direction of the output positive and negative poles, changing the original positive pole to negative and the original negative pole to positive. Time adjustable from 0-9999S (optional).

Current Voltage Preset: Desired voltage and current values can be pre-set during power shutdown, and settings can also be adjusted during no-load and operational conditions (standard).

Boot-up Buffer Time: 3-5S

Lock Function: After setting the voltage and current values, press the lock button to lock the set parameters to prevent accidental changes to the parameter values.

Power conversion utilizes high-frequency PWM soft-switching IGBT inverter technology, with the control section employing 16-bit AD conversion and microcontroller control, featuring high accuracy, compact size, and light weight.

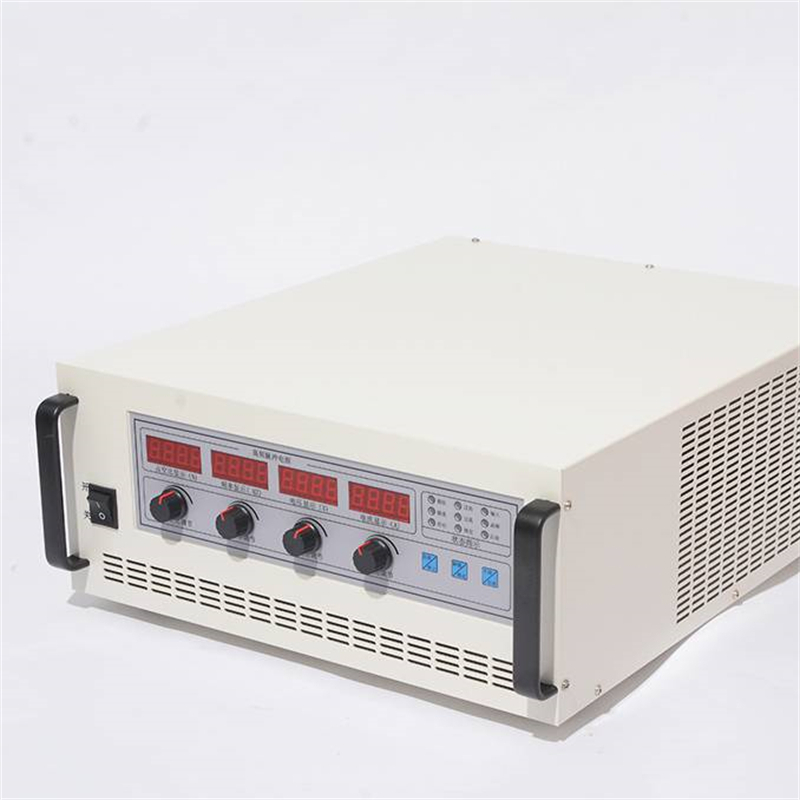

High-frequency PWM inverter technology, digital control, 16-bit AD sampling, high precision, high-brightness 4-digit LED display, high performance, high power density, expandable in series and parallel for power/current/voltage

Built-in digital and analog control interfaces (optional)
