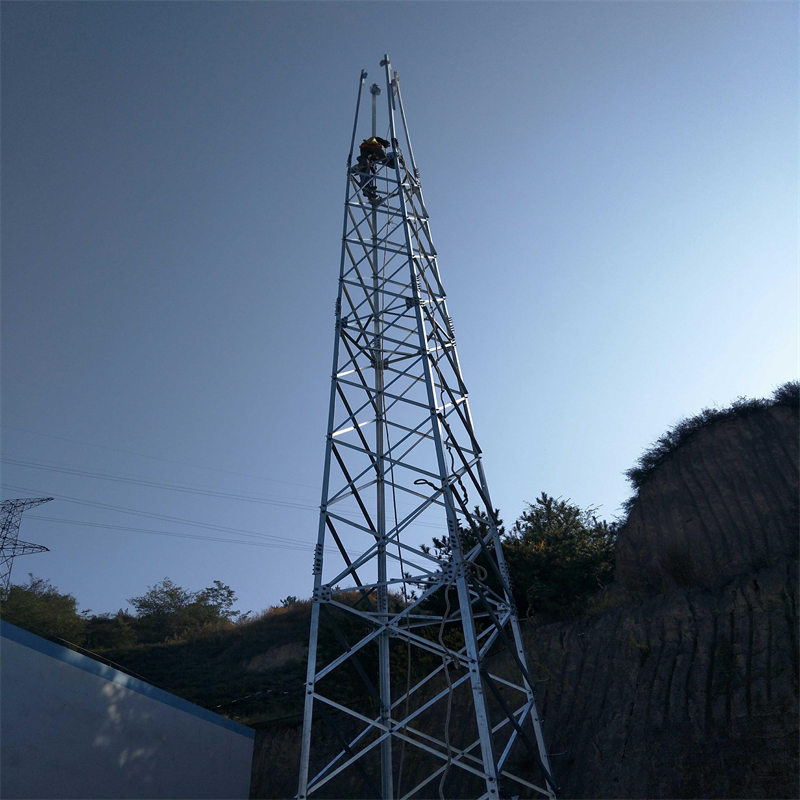

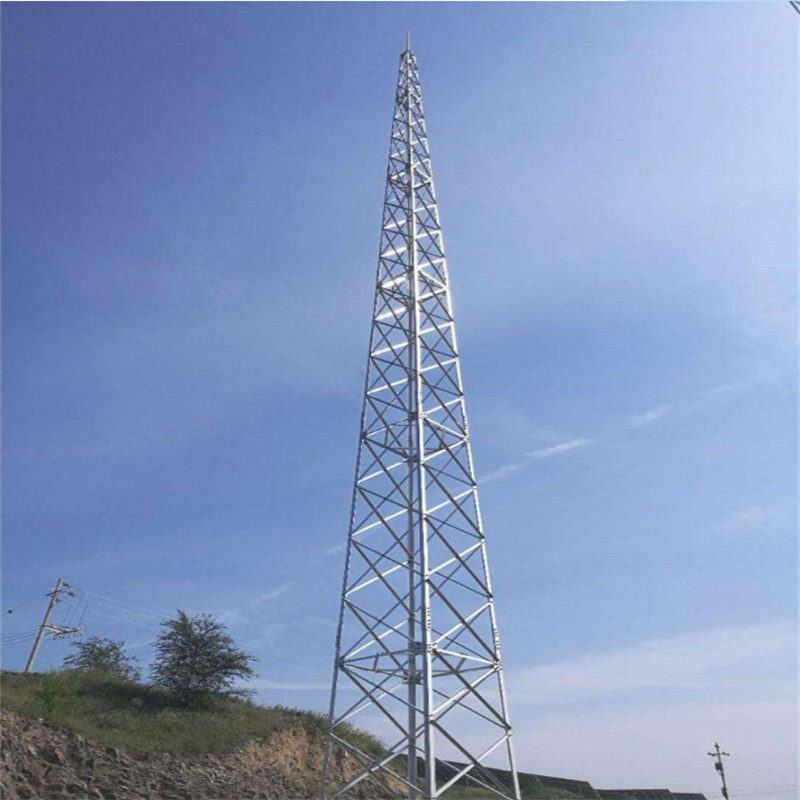

Lightning Rod Tower, also known as lightning protection tower or lightning dissipation tower, can be categorized into round steel lightning rod towers and angle steel lightning rod towers based on materials used. It can also be divided into lightning rod towers and lightning wire towers based on functions, with round steel lightning rod towers being widely used due to their low cost. The materials for lightning rod towers can include round steel, angle steel, steel pipes, and single steel pipes, with heights ranging from 10 to 60 meters. Our company produces lightning rod towers such as lightning rod towers, lightning decoration towers, and lightning dissipation towers. Applications: Used for direct lightning protection of communication base stations, radar stations, airports, oil depots, missile bases, PHS and various base stations, as well as for important locations like building rooftops, power plants, forests, fuel depots, meteorological stations, factory workshops, paper mills, and more.
Advantages: Utilizes steel pipes for the tower columns, featuring a small wind load coefficient and strong wind resistance. The columns are connected with external flanges, with bolts under tension, making them less prone to damage and reducing maintenance costs. The triangular arrangement of the columns saves steel, has a smaller footprint, conserves land resources, and is convenient for site selection. The light self-weight of the tower body ensures easy transportation and installation, with a short construction period. The tower design varies with the wind load curve, offering smooth lines and is less likely to collapse during rare wind disasters, minimizing human and animal casualties. The design complies with national steel structure design specifications and tower design regulations, ensuring structural safety and reliability.
Tensile Strength: Wind 10 levels / Earthquake 6 levels
Lightning Protection Principle: The lightning current chaser is a non-inductive, low-impedance metallic inner conductor downlead that routes the lightning current to the ground after it is channeled, thereby preventing the protected antenna tower or building from being struck laterally or becoming charged. In most cases, the impulse of the static field cable is less than 1/10 of the tower's impedance, thus avoiding damage to the building or tower.
Live-wired, eliminates lightning strike limitations on ground lightning current intensity, reducing the hazards of counterattack and induced overvoltage for the protected equipment. Protection range is calculated according to the National Standard GB50057 using the rolling sphere method.
Height: Over 10 meters
Design Weight: > 1 ton (specific weight varies by region, with slight differences between low and high lightning zones, coastal wetlands, and arid western regions.)
Material: Q235-Q345 Round Steel
Corrosion Treatment: Hot galvanized corrosion protection / Cold galvanized corrosion protection / Paint spraying
Material Origin: Baosteel/Shougang/Hengang/Tangsteel, etc.
Valid for more than 30 years
