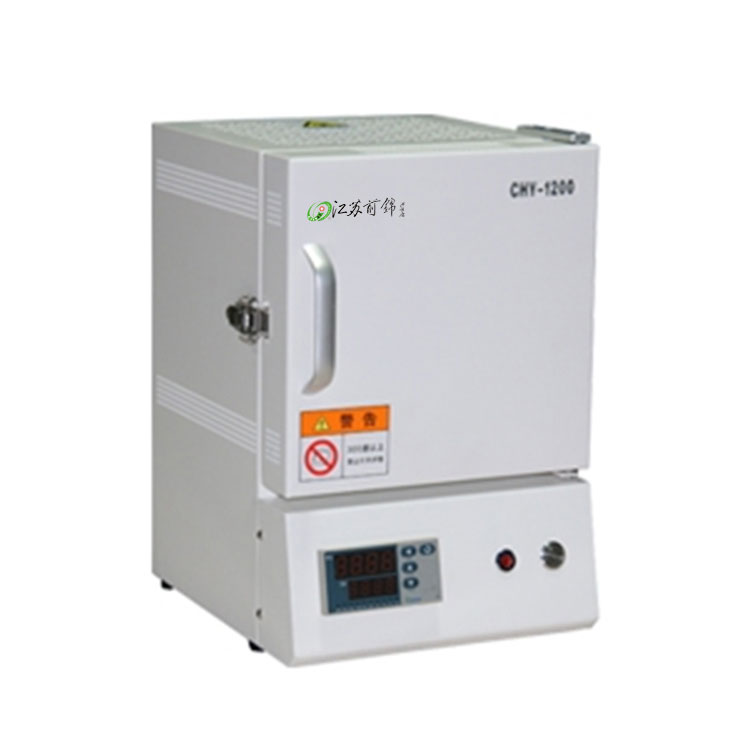

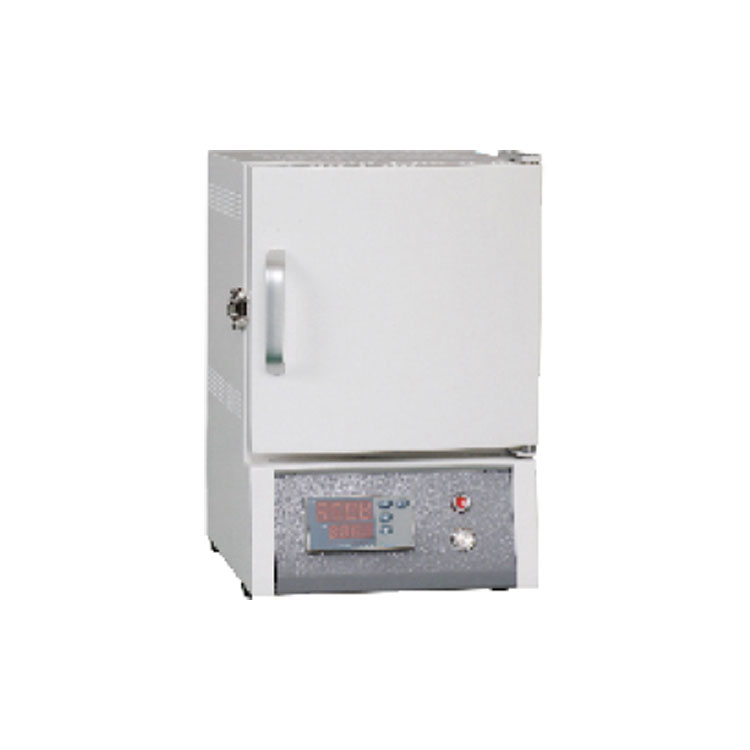

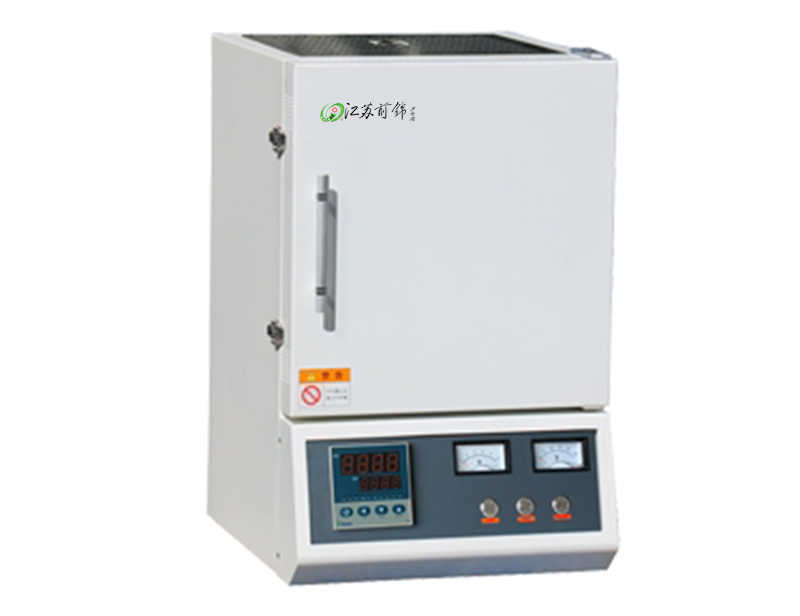

12L Box Oven
Model: KSF12-12
Dimensions: (W) 390 x (H) 400 x (D) 600mm
Product Features:
1. Utilizing new technology molybdenum iron chrome aluminum alloy heating wire, integrated with the furnace lining for triple-sided heating. This innovative heating wire can elevate the surface temperature to up to 1400°C, significantly improving its oxidation resistance, thereby extending the lifespan of the furnace cavity several times.
2. Unique style; more user-friendly design structure
3. Large furnace volume, suitable for both laboratories and production facilities.
Product Specifications:
| Product Name: | 12L High-Temperature Box Furnace |
| Product Model: | KSF12-4 |
| Display Mode: | High-Definition Digital Tube Display (LED) |
| Ultimate Temperature: | 1200℃ |
| Operating Temperature: | ≤1150℃ |
| Rising Rate of Temperature | Z increases 30℃/min; Suggested: 10℃/min |
| Furnace chamber dimensions: | （W）150×（H）150×（D）200mm |
| Dimensions: | （W）390×（H）400×（D）600mm |
| Furnace Volume: | 4.5 L |
| Control Mode: | Intelligent PID 30-step temperature control with overcurrent protection, overheating, and open-circuit alarm features. |
| Temperature Control Accuracy: | ±1℃ |
| Heating Element: | Molybdenum-alloyed iron-chromium aluminum heating wire |
| Furnace Material: | High-purity alumina fiber |
| Standard Accessories: | 1 doorstop, 1 pair of protective gloves, 1 crucible tongs, 1 corundum crucible, 1 brick pad, 1 instruction manual |
