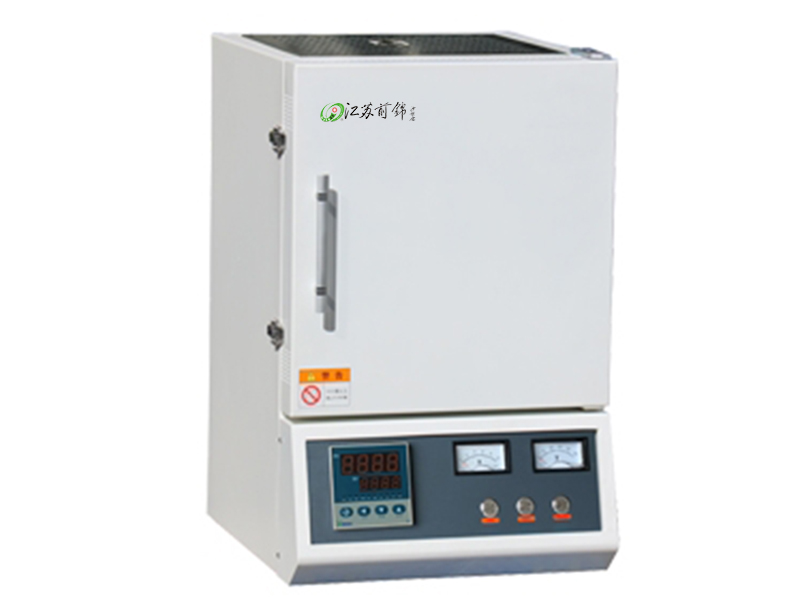

Model: KTF12-1
Applications: Widely used in laboratory sintering and annealing, dental crown baking, zirconium disk pre-sintering, and more.
Dimensions: 250×280×380 (mm)
Features: Compact and delicate stove, power less than 1 kW
The scientifically and reasonably designed structure not only grants it an exquisite appearance and compact size, but also keeps the surface temperature of the furnace below 50°C.
Dimensions: Only 250×280×380 (mm)
It features a molybdenum-iron-chromium aluminum alloy heating wire with new technology, integrated with the furnace chamber for triple-sided heating. This raises the surface temperature to 1400°C, significantly enhancing its oxidation resistance and extending the heating wire's lifespan several times.
It features a compact furnace chamber of 100*100*100mm, making temperature control easier and ensuring a more even heat distribution within the temperature field.
With its unparalleled value-for-money, the MiMi model box furnace has gained widespread application in laboratories.
Key Features:
Compact and sleek, lightweight and agile.
Low power consumption, super energy-saving.
Integrated heating wire to prevent evaporation and splatter contamination.
The furnace chamber is small yet capable of meeting all sintering processes for muffle furnaces.
Perfectly suited for users with limited budgets and insufficient lab space.
Product Specifications:
| Product Name: | Mini Box Furnace |
| Product Model: | KTF12-1 |
| Furnace Mode: | Side-opening |
| Display Mode: | High-contrast digital tube display (LED) |
| Ultimate Temperature: | 1200℃ |
| Operating Temperature: | ≤1150℃ |
| Rising Rate: | Suggestion: 10℃/min, Max: 30℃/min |
| Heating Temperature Zone: | Single temperature zone |
| Furnace chamber dimensions: | 100mm×100mm×100mm |
| Furnace Volume: | 1L |
| Control Mode: | Smart PID Controller |
| Temperature Control Accuracy: | ±1℃ |
| Temperature Curve: | 30 customizable "time-temperature curves" |
| Over-temperature Alarm: | Available |
| Overcurrent Protection: | Available |
| Breakage Tip: | Available |
| Thermometric element: | Type K Thermocouple |
| Heating Element: | Molybdenum-aluminized iron-chromium alloy heating wire (OCr27Al7Mo2) |
| Furnace material: | High-purity alumina fiber |
| Dimensions: | 250×280×380（mm） |
| Power Supply: | 220V 50Hz |
| Rated Power: | 1KW (Power Consumption ≤ 800W) |
| Electrical Certification: | CE Marking |
| After-sales Service: | 12-month warranty, lifetime support |
| Packaging Style: | Three-ply wooden packaging boxes |
| Random Accessories: | 1 power cord; 1 pair of protective gloves; 1 user manual |
