Model: KSF15-36
Application: Sintering and Annealing for Samples Below 1500℃
Dimensions: L: 750mm x W: 640mm x H: 1530mm

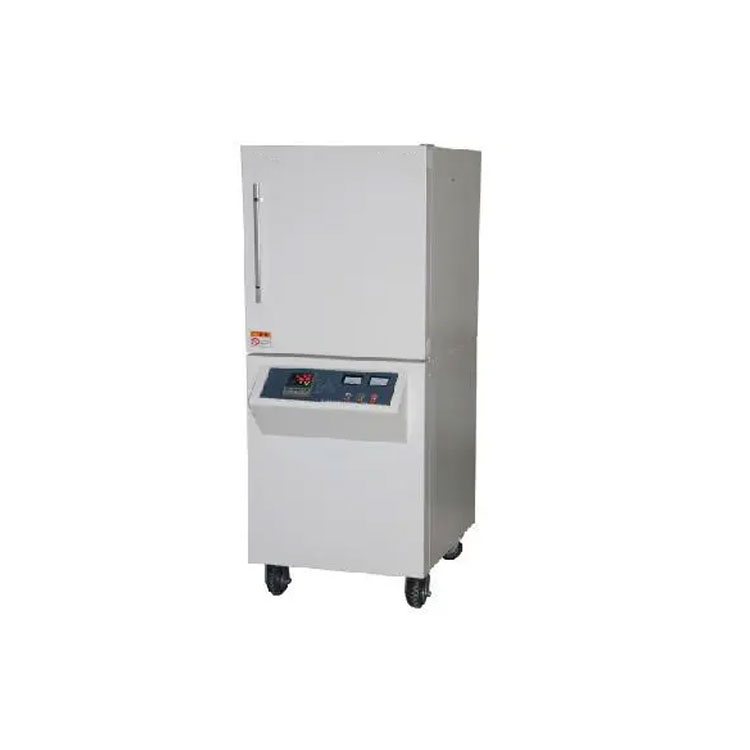

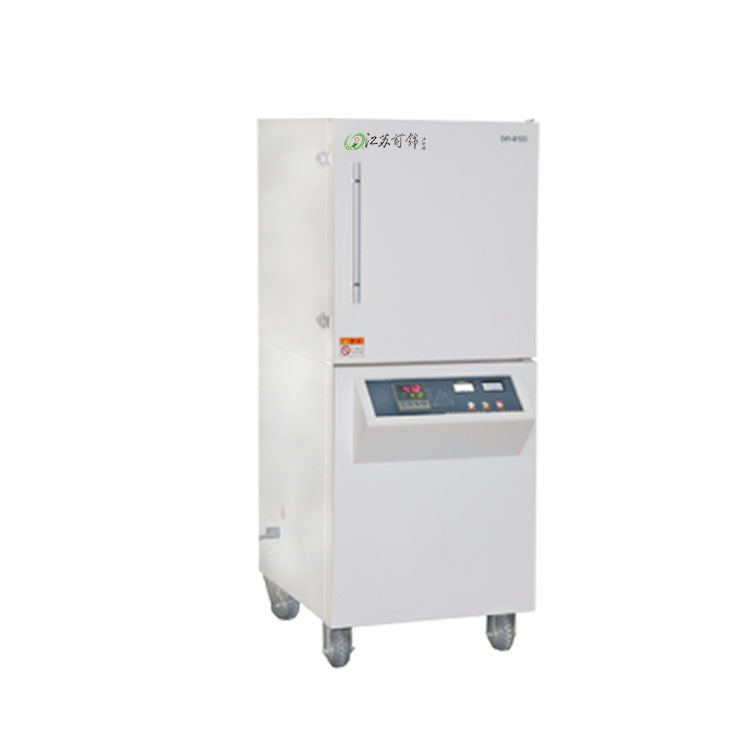

FeaturesThe larger furnace chamber, with its floor-standing design and mobile wheel configuration, offers a comfortable and smooth user experience. Our pursuit of perfection is evident in our meticulous attention to detail, from every weld on the outer shell to the polishing of every edge and corner.
1. The furnace chamber is constructed with high-purity alumina fiber, offering excellent insulation properties.
2. Double-layer furnace shell and additional air-cooling unit ensure safe shell temperature.
3. Special heating elements offer superior resistance to chemical reactions between the furnace charge and the heating elements.
Product Specifications:
| Product Name: | 1500℃ Large Capacity Box Furnace (36L) |
| Product Model: | KSF15-36 |
| Extremal Temperature: | 1500℃ |
| Operating Temperature: | ≤1450℃ |
| Rising Rate: | Suggestion: 10℃/min |
| Furnace chamber dimensions: | 300mm×300mm×400mm |
| Furnace Volume: | 36L |
| Control Mode: | Smart PID 30-step temperature control, with overcurrent protection, over-temperature, and unbalance alarm functions |
| Temperature Control Accuracy: | ±1℃ |
| Thermometric Element | S-Type Thermocouple |
| Heating Element: | High-purity Silicon Carbide Rod |
| Furnace Material: | High-purity alumina fiber |
| Dimensions: | L:750mm×W:640mm×H:1530mm |
| After-Sales Service | One-year warranty, lifetime maintenance |
| Standard Accessories: | Door stopper 1 piece, fire-resistant plate set 1, protective gloves 1 pair, crucible tongs 1, alumina crucibles 2, instruction manual 1. |
| Standard Accessories: | Various crucible sizes, brick pads, spare heating elements, etc. |
