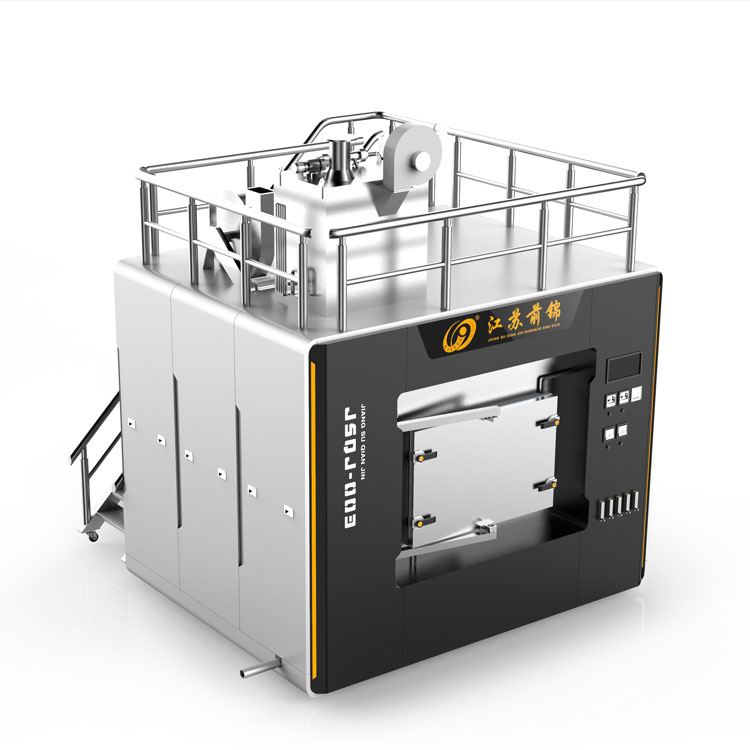

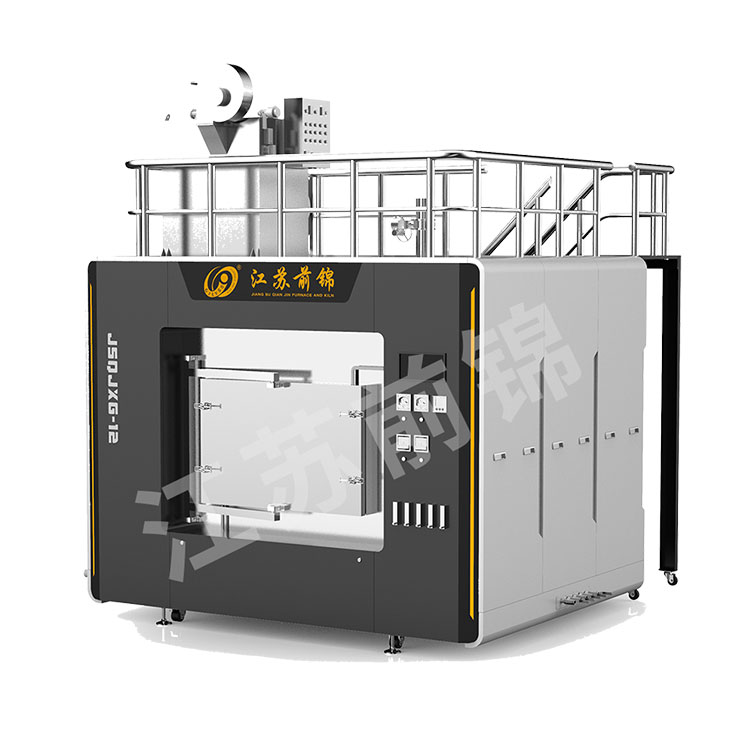

Equipment Name: JSQJXG-12 Roller Atmosphere Box Furnace
Sintered Products: Lithium Iron Phosphate
This model utilizes silicon carbide rods as heating elements, combined with a YuDi intelligent temperature control module and touch screen operation. The furnace chamber is constructed with alumina hollow sphere bricks, offering excellent resistance to sudden temperature changes and corrosion. The heating rods are arranged both at the top and bottom of the furnace chamber. The furnace shell and door are sealed with a silicone rubber sealing structure, and a water-cooling chamber is designed to cool the furnace opening.
The electric furnace is suitable for inert atmosphere conditions and is equipped with a professional multi-port uniform air supply system to ensure effective and even distribution of gases to all angles within the furnace chamber. An exhaust system is set up at the furnace top, with flue gases discharged through the top chimney, and a high-temperature valve controls the exhaust volume.
This furnace model is an ideal equipment for silicon-carbide anode carbonization. The electric furnace features an international new style design, boasting simple and elegant structure, attractive appearance, and ease of operation among other advantages.
Product Specifications:
| Burnt products: | Lithium Iron Phosphate |
| Operating Temperature: | RT～800℃ |
| Rated Temperature: | 900℃ |
| Cone Kiln | 330×330×120 mm (Customer Supplied) |
| Storage Type: | 3 columns, 4 rows, 2 layers |
| Furnace chamber size: | Approx. 1280L x 950W x 360H mm |
| Dimensions: | Approx. 3000L x 2100W x 2500H mm |
| Furnace Chamber Material: | Alumina hollow sphere light bricks + Mollite aggregate light bricks + 1260 type ceramic fiber |
| Top Structure: | Arch structure |
| Heating Element: | Silicon carbide rods, top rod with alumina tube (corrosion-resistant), arranged horizontally and vertically in the furnace膛 |
| Temperature Control Stability: | ±1°C, featuring a 30-segment YuDi intelligent temperature control module with touch screen operation, and equipped with PID parameter self-tuning function. |
| Temperature Control Points: | 4:00 PM |
| Rated Power: | Approximately 60 kW |
| Surface Temperature: | ≤40℃ + room temperature |
| Furnace Atmosphere: | Nitrogen |
| Intake System: | Bottom and side intakes, flowmeter control |
| Exhaust System | Top exhaust, high-temperature valve control |
| Thermocouple | K-Type |
| Roll Bar | Silicon carbide roller bar |
| Power Supply: | Three-phase, 380±5% VAC, 50 Hz. |
