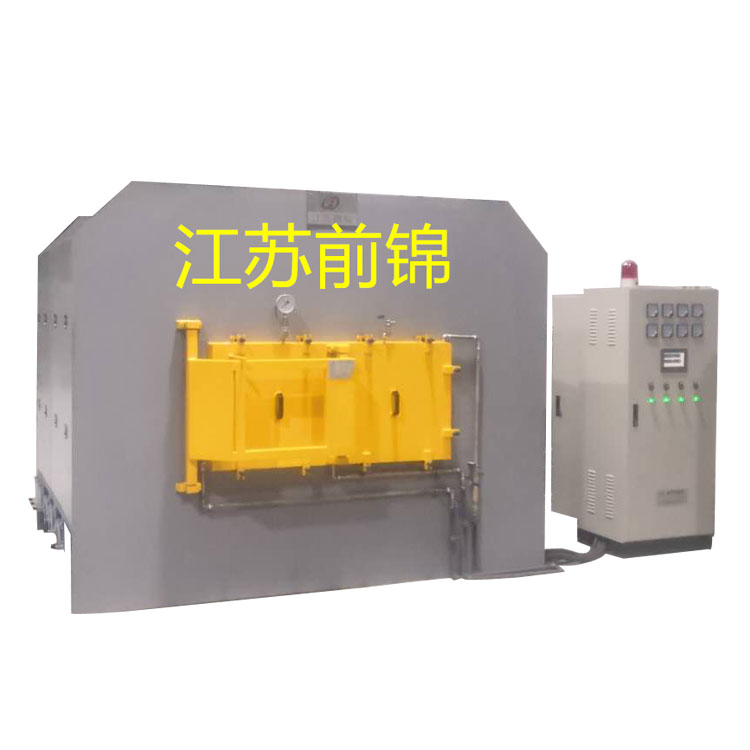

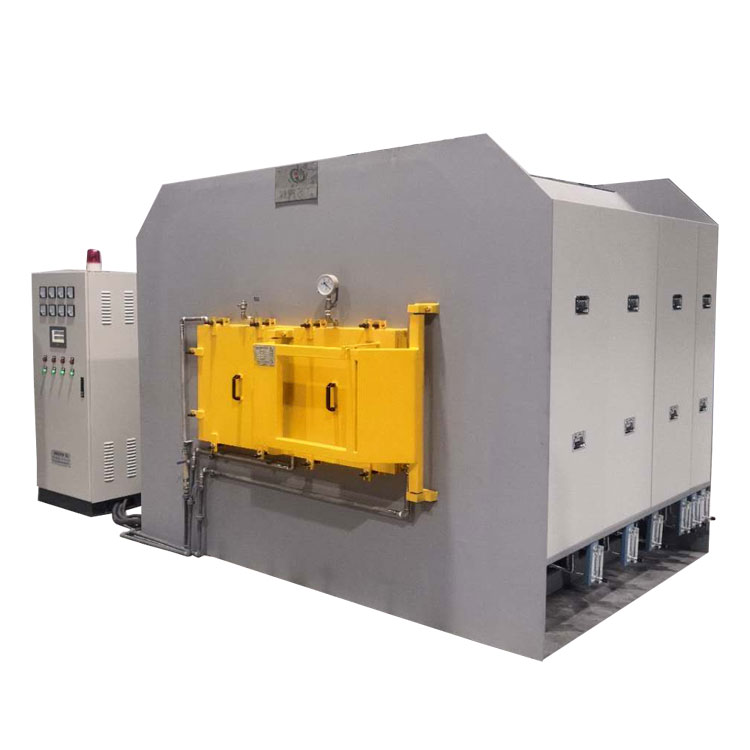

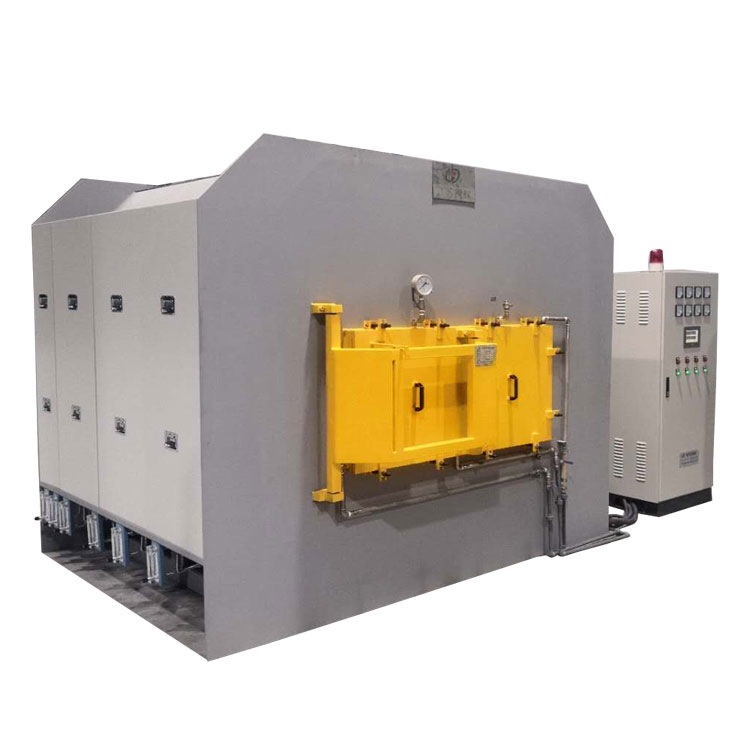

KSF-100-11Q Rollway Atmosphere Box Furnace
This model features a silicon-carbide rod as the heating element, combined with a Yudian intelligent temperature control module and touch screen operation. The furnace chamber is constructed with alumina hollow ball bricks, offering excellent resistance to rapid temperature changes and corrosion. The heating rods are arranged both above and below the furnace chamber. The furnace shell and door are sealed with a silicone rubber sealing structure, and a water-cooled chamber is designed to cool the furnace opening.
The electric furnace is suitable for inert atmosphere conditions and is designed with a professional multi-port uniform air supply system to ensure effective and even distribution of gases to all angles within the furnace chamber. The furnace top is equipped with an exhaust system, with flue gas discharged through the top chimney, and a high-temperature valve controls the exhaust volume.
This furnace model is an ideal equipment for silicon-carbide anode carbonization. The electric furnace features an international new style design, boasting simple and elegant structure, attractive appearance, and ease of operation among other advantages.
Product Specifications:
| Burnt material: | Silicon-carbon negative electrode material |
| Operating Temperature: | RT～900℃ |
| Rated Temperature: | 1250℃ |
| Box furnace | 330×330×120 mm (user-supplied) |
| Storage Type: | 3 columns, 4 rows, 2 layers |
| Furnace chamber dimensions: | Approximately 1600L x 1280W x 300H mm |
| Furnace Material: | Alumina hollow sphere lightweight bricks + Molarite lightweight bricks + 1260 type ceramic fiber |
| Top Structure: | Arch structure |
| Furnace Door | Double swing door design |
| Heating Element: | Silicon carbide rods, upper rod with corundum tube (corrosion-resistant),布置 in the furnace chamber both at the top and bottom |
| Temperature Control Stability: | ±1°C, equipped with 30-stage Yudian intelligent temperature control module and touch screen control, featuring self-tuning PID parameter function |
| Uniformity of Temperature: | Approx ±8°C |
| Temperature Control Points: | 4:00 PM |
| Rated Power: | Approximately 100 Kw |
| Surface Temperature: | ≤40℃ + room temperature |
| Furnace atmosphere: | Nitrogen |
| Intake System: | Bottom and side air intakes, flowmeter control |
| Exhaust System | Top exhaust, high-temperature valve control |
| Thermocouple | N-Type |
| Roller Bar: | Silicon Carbide Roll Bar |
| Power Supply: | Three-phase, 380±5%VAC, 50Hz |
| Oxygen Measurement: | Equipped with one oxygen analyzer, which can be quickly connected to the furnace oxygen port for in-furnace oxygen content detection. |
