Product Introduction

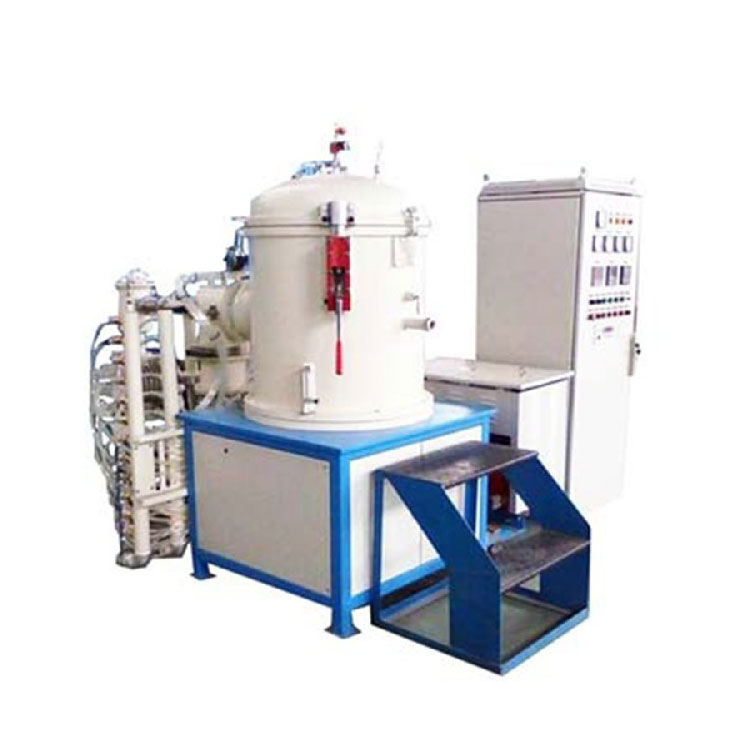

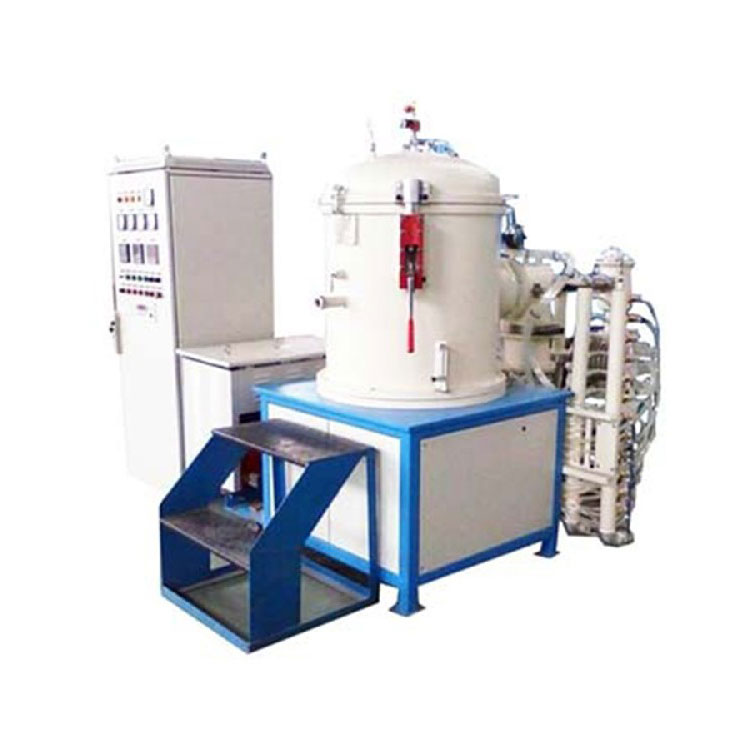

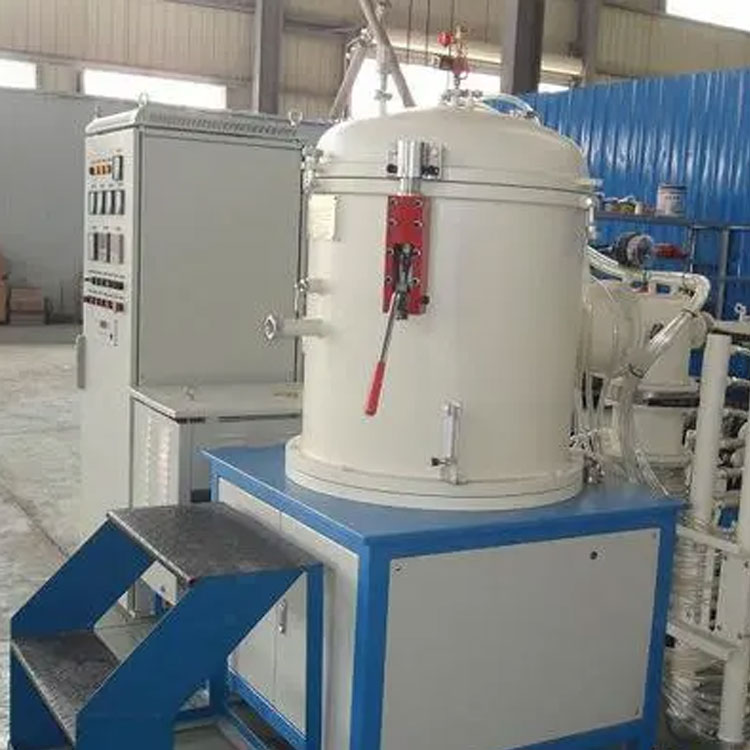

Vacuum Carbon Tube Furnaces are high-temperature, high-vacuum resistance furnaces utilizing graphite heating elements. The maximum operating temperature reaches up to 2000°C-2400°C. This series is widely used for sintering inorganic materials (such as ceramic seals, silicon carbide, yttria, zinc oxide, alumina, etc.) and metals (like hard alloys) under vacuum or protective atmosphere. It is also suitable for the purification of rare earth elements and their oxides, as well as sapphire return processing. It is also applicable for mass production in colleges and universities, and scientific research institutions. Imported digital programmable controllers complete the automatic control of the heating/cooling process. The control panel features a graphic simulation screen with a user-friendly design, intuitive and simple operation. The control circuit is equipped with water-cut, over-temperature, overcurrent, and other audio-visual alarm functions, as well as automatic protection.
Product Range
Suitable for high-temperature sintering in universities, research institutes, and industrial and mining enterprises, metal annealing quality testing, sintering in the powder metallurgy industry, and baking, oxidation, and pre-sintering of dental crowns, etc. Perform small-scale and medium-scale tests, as well as mass production based on the size of the heating zone.
温馨提示: All specifications and parameters of this product are manually measured, and there may be errors. Please refer to the actual item received for accuracy!
Note: This model is available for customization! For details, please call the official website number!
Product Specifications:
| Equipment Name: | Vacuum Carbon Tube Furnace |
| Structure Introduction: | Composed of the furnace lid, body, bottom, and vacuum unit |
| Furnace Shell Material: | The inner shell is made of stainless steel, while the outer shell is carbon steel, with water cooling between the two layers. |
| ： | The furnace shell is equipped with exhaust ports, observation holes, thermocouple holes, protective atmosphere inlets and outlets, explosion-proof ports, etc. |
| ： | The furnace is equipped with a graphite electrode, which is connected to the graphite heating element through a cylindrical surface contact. |
| ： | Each electrode has one end extending out of the furnace through a sealed connection. |
| ： | The heating element is surrounded by an insulating screen device composed of multiple radiation shields. |
| Equipment Features: | Electric furnace equipped with water cut-off, overcurrent, excessive furnace temperature, and water temperature alarm and protection functions. |
| Safety Design: | The furnace is equipped with an inflation superpressure explosion-proof system. |
| Structural Features: | Compact structure, rational layout |
| Configuration Facilities: | Humanized design, rational configuration |
| Furnace chamber dimensions: | 90*120mm/140*140mm/160*160mm/220*300mm |
| Vessel dimensions: | 320*320mm/320*600mm |
| Operating Temperature: | Z High Temperature up to 2000°C~2400°C |
| Rated Power: | 25KW/40KW/85KW/100KW/120KW/210KW |
| Heating Element: | Graphite |
| Boiler Tube: | Stainless Steel Pipe |
| Insulating materials: | Insulation is a carbon felt and graphite composite structure. |
| Vacuum Degree: | 6.67*10-3pa |
| Control Method: | Fully automatic control system instruments feature temperature calibration and compensation, with adjustable 30-stage "time-temperature curves." |
| Application Scope: | Sintered under protective atmosphere; also used for purification of rare earth elements and their oxides, as well as sapphire annealing treatment. Suitable for use in colleges and universities, and research institutions. |
