Product Description

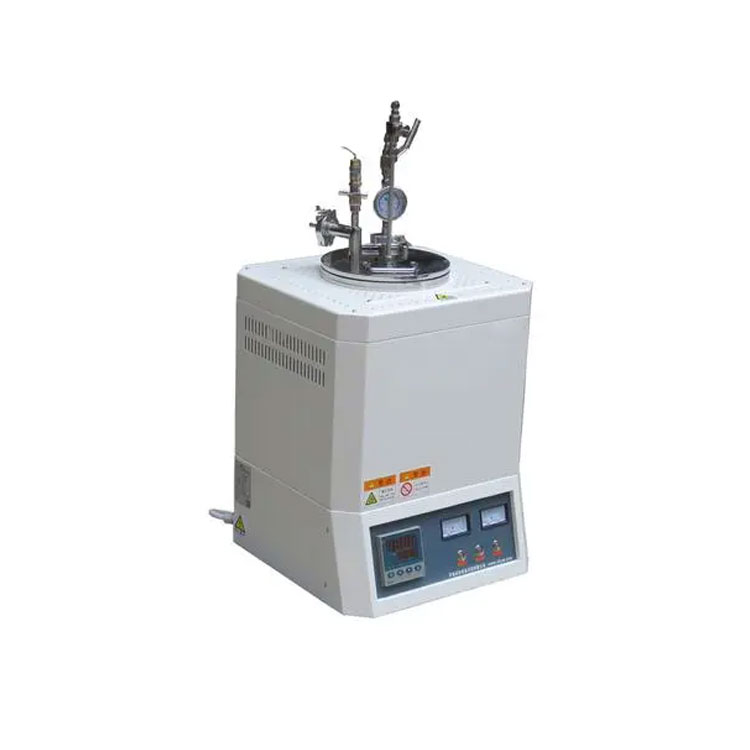

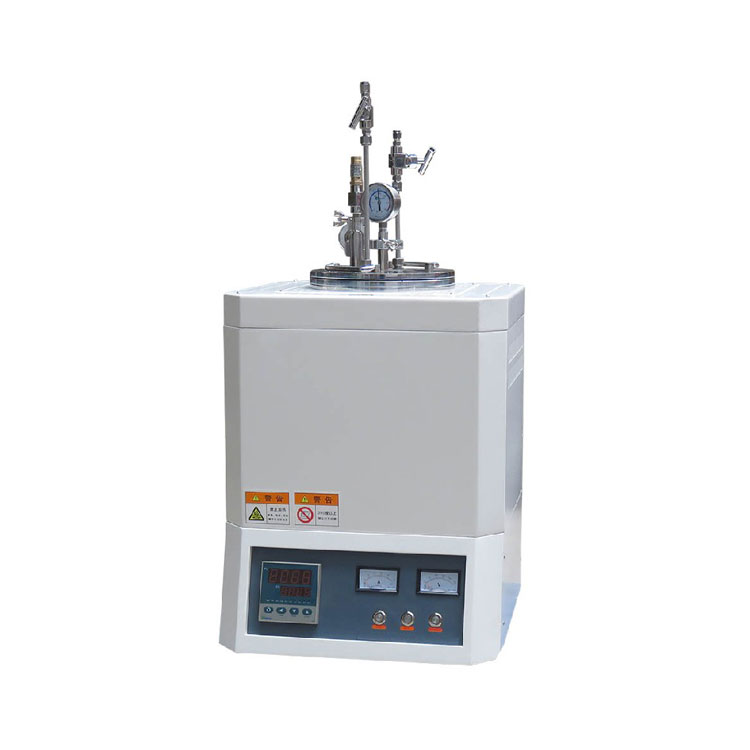

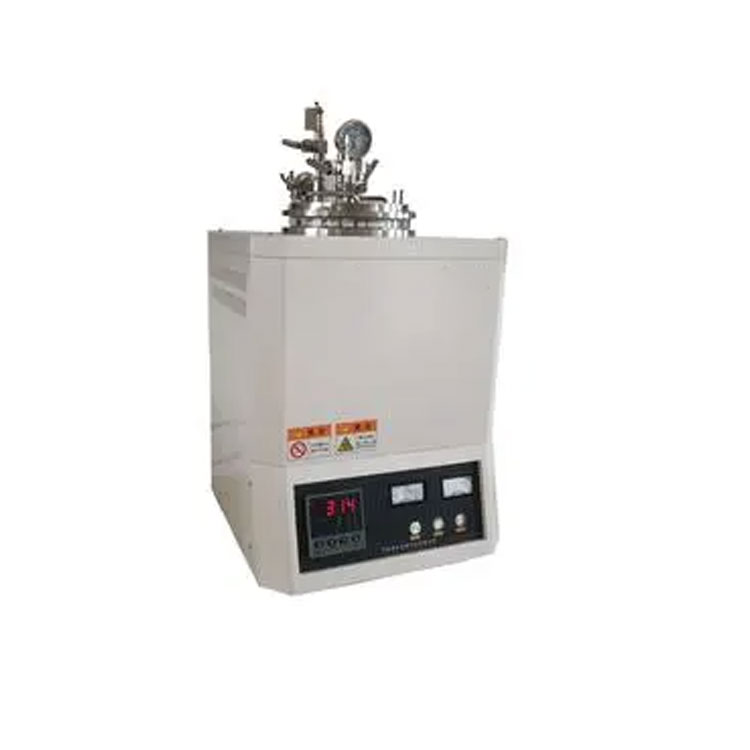

Vacuum Atmosphere Furnaces are primarily used in vacuum or atmosphere environments. They have a larger volume than tubular furnaces, making it easier to load and unload samples. The JZ20 model is a well-type vacuum furnace, featuring a quartz cylinder sealed structure for simplicity and good sealing properties.
Product Specifications:
Model | QJ1200-JZ20 |
Z High Temperature | 1200℃ |
Operating Temperature | ≤1100℃ |
Rising rate | 10℃/min |
Furnace chamber dimensions | 180*180*210mm |
Volume | 5L |
Vacuum level | 100Pa |
Temperature Control Method | 30 sectionsPIDProgrammable temperature control |
Temperature Control Accuracy | ±1℃ |
Heating Element | Molybdenum-Iron-Chromium-Aluminum Heating Wire |
Power | 220V/3.5kw |
Vessel dimensions | 460*400*680mm |
