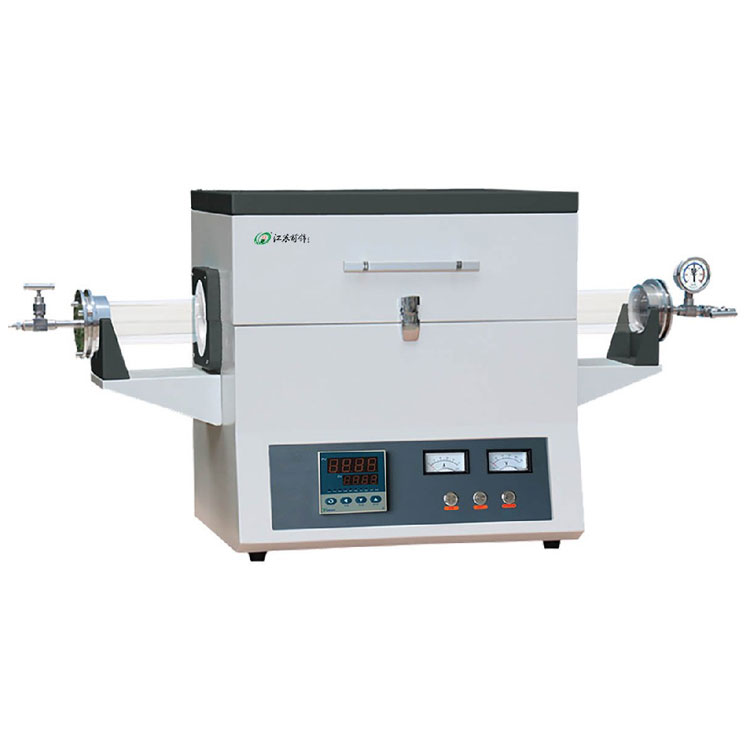

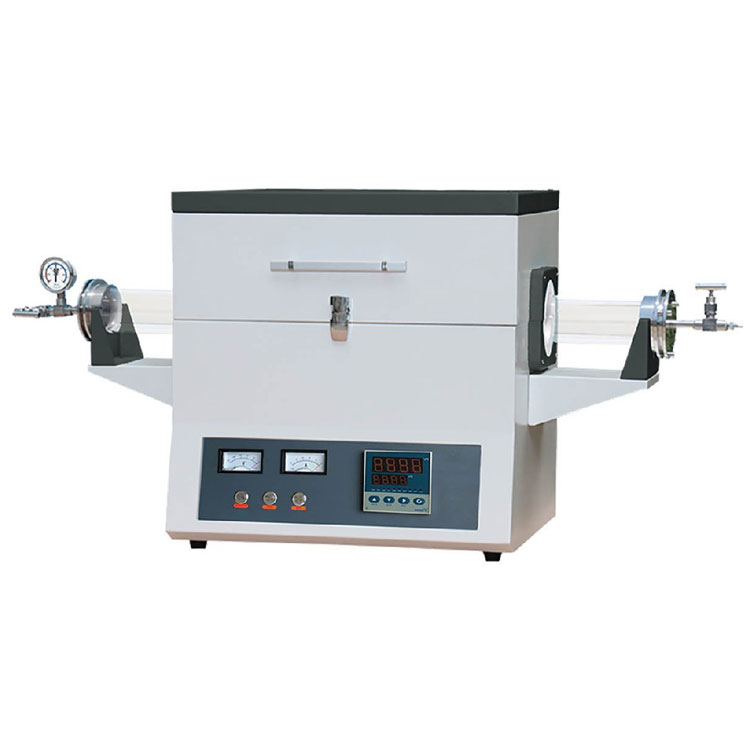

1200°C dual-zone tubular furnace
Model: KTF12-B
Application: Certain heat treatment experiments may require one or more temperature gradients, such as CVD coating tests. In such cases, a multi-zone tube furnace is used.
Dimensions: 630×470×610 mm
Features: Certain heat treatment experiments may require one or more temperature gradients, such as CVD coating tests. In such cases, a multi-zone tube furnace is used.
This dual-zone tube furnace allows independent setting of parameters for each zone, resulting in different temperature values for each zone. By setting both zones to the same temperature point, it can be used as an extended single-zone furnace. It maintains the classic design of the single-zone tube furnace, combining beauty and practicality!
Product Specifications:
| Product Name: | 1200°C dual-zone tubular furnace |
| Model: | KTF12-B |
| Furnace material: | High-purity aluminum oxide fiber |
| Heating Element: | Moled iron-cored aluminum alloy heating wire |
| Extremal Temperature: | 1200℃ |
| Continuous Operating Temperature: | ≤1150℃ |
| Rise Rate: | ≤20℃/min (Suggested: 10℃/min) |
| Zone Length: | 220+220mm |
| Room Temperature Zone: | 320mm |
| Boiler Tube Size: | Φ50*1000，Φ60*1000，Φ80*1000，Φ100*1000mm |
| Sealing Method: | Stainless Steel Vacuum Flange |
| Air Tightness: | Airtightness of vacuum flanges and quartz furnace tubes can reach as high as 9.8×10^-4 Pa. |
| Temperature Control Method: | Intelligent PID 30-step temperature control with overcurrent protection, over-temperature, and unbalanced alarm. |
| Temperature Control Accuracy: | ±1℃ |
| Power Supply: | 220V 50Hz |
| Total Power Output: | 5 KW |
| Standard Accessories: | 1 quartz tube, 1 set of stainless steel sealed flange, 6 silicone sealing rings, 3 aluminum oxide tube caps, 1 pair of high-temperature gloves, 1 furnace hook, 1 crucible tongs, 1 quartz boat, 1 manual. |
| Dimensions: | 630×470×610 mm |
