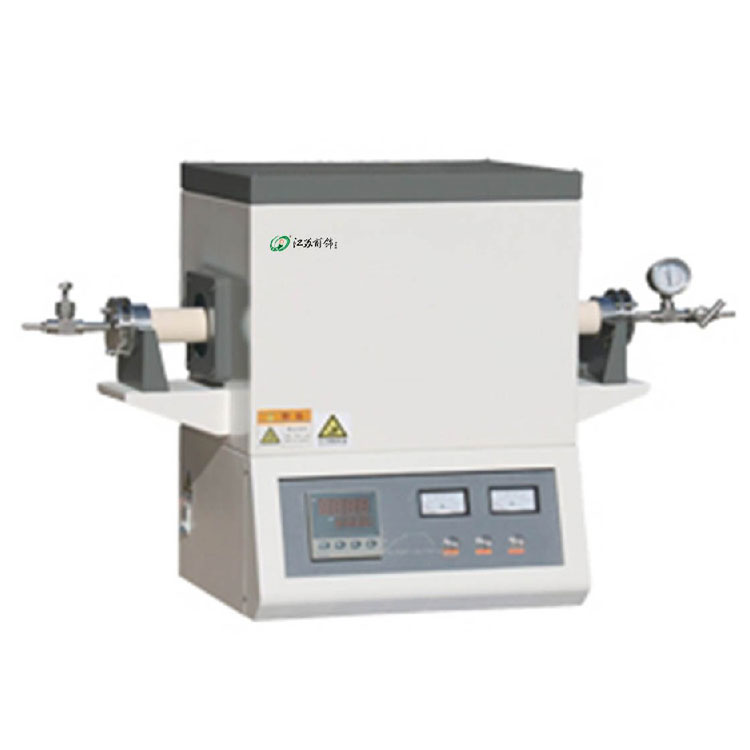

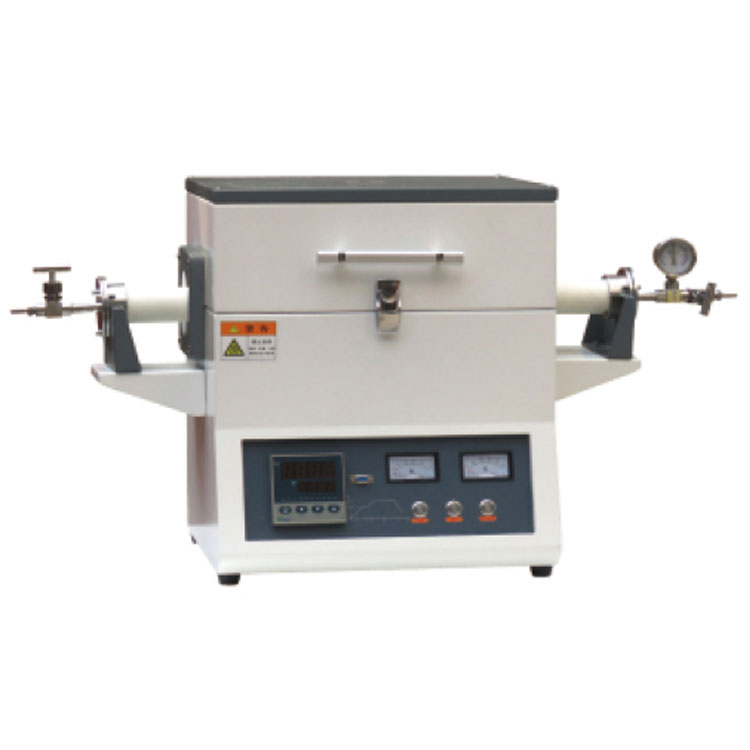

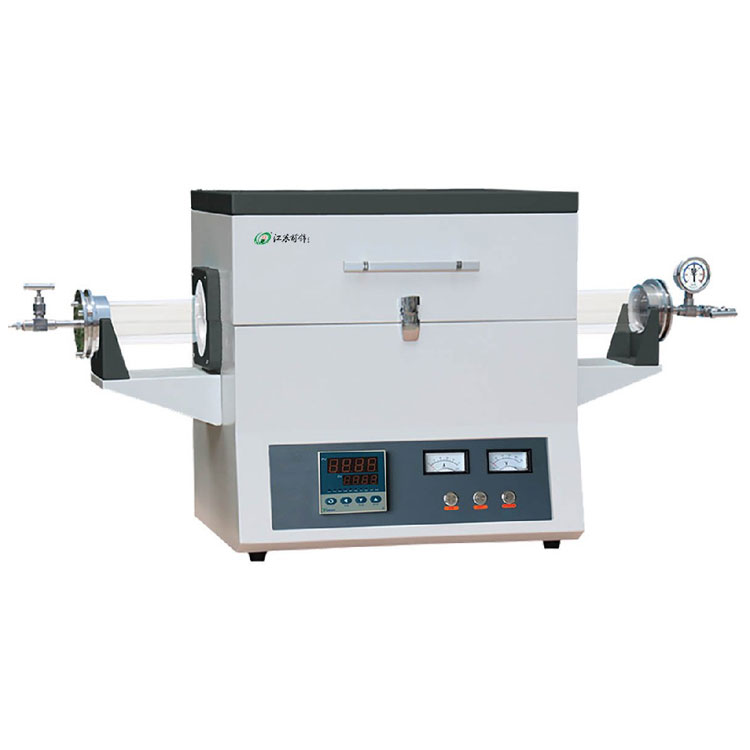

Model: KTF15-M
Application: Sintering and annealing of materials under vacuum or atmosphere up to 1500℃
Dimensions: 500×450×650mm
Features: Compact size, low power, cost-effective
This compact high-temperature tube furnace has a small appearance and volume, taking up minimal lab space, making it ideal for smaller lab units. It's also affordably priced, offering excellent value for a high-temperature vacuum tube furnace.
Product Specifications:
| Product Name: | Small tube furnace, 1500°C |
| Furnace material: | High-purity alumina fiber |
| Heating Element: | High-purity Silicon Molybdenum Rod |
| Extremum Temperature: | 1500℃ |
| Continuous Operating Temperature: | ≤1450℃ |
| Rising Temperature Rate: | ≤20℃/min (suggested: 10℃/min) |
| Temperature Zone Length: | 200mm |
| Room Temperature Zone: | 100mm |
| Boiler Tube Size: | High-purity Alumina Tube Φ50*700mm |
| Sealing Method: | Stainless Steel Vacuum Flange |
| Airtightness: | Airtightness of vacuum flanges and quartz furnace tubes can reach as high as 9.8×10^-4 Pa |
| Temperature Control Method: | Intelligent PID 30-stage programmable temperature control, featuring overcurrent protection, over-temperature, and unbalanced alarm. |
| Temperature Control Accuracy: | ±1℃ |
| Power Supply: | 220V 50Hz |
| Overall Power Rating: | 1.5KW |
| Standard Accessories: | 1 ruby tube, 1 set of stainless steel sealed flange, 6 silicone seals, 4 aluminum oxide tube caps, 1 pair of high-temperature gloves, 1 furnace hook, 1 pair of crucible tongs, 1 piece of ruby boat, 1 manual. |
| Dimensions: | 500×450×650 mm |
