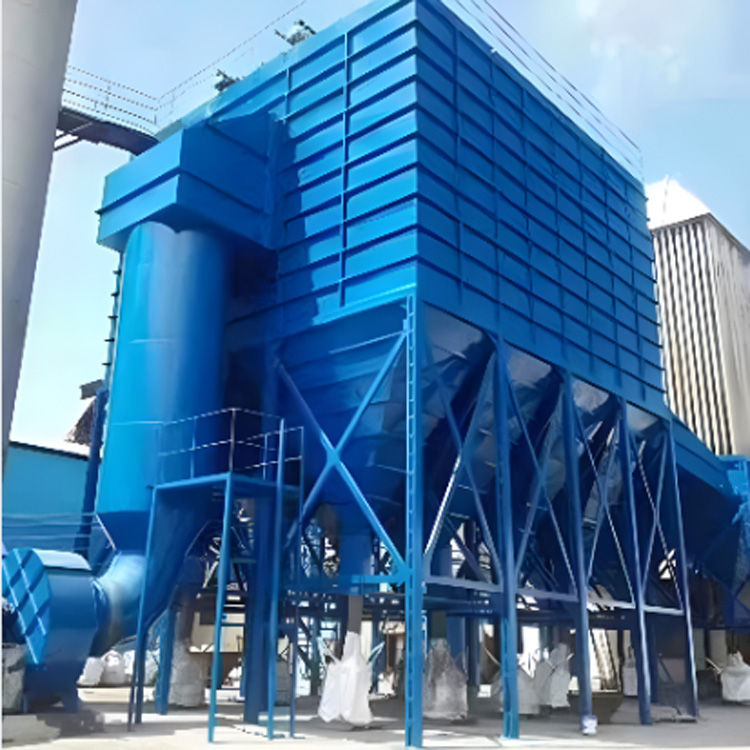

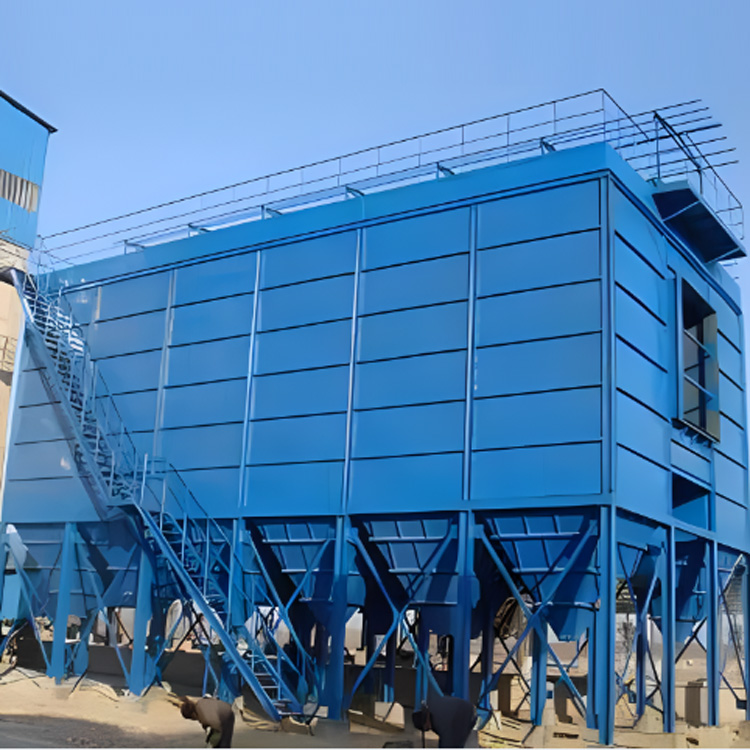

The pulse bag dust collector consists of parts such as the ash hopper, upper, middle, and lower cabinets, which are divided into separate compartments. During operation, the dust-laden gas enters the ash hopper through the air intake duct, with coarse dust particles falling directly to the bottom of the hopper. Fine dust particles, following the gas flow, turn upwards into the middle and lower cabinets. Dust accumulates on the outer surface of the filter bags, and the filtered gas enters the upper cabinet to the clean gas manifold-vent duct, which is then exhausted into the atmosphere by the exhaust fan. The cleaning process involves first shutting off the clean gas outlet duct of the compartment, causing the bags to be in a state without gas flow (separate compartment stop airflow cleaning). Then, the pulse valve is opened to use compressed air for pulse blowing cleaning. The valve's closing time is sufficient to allow the dust detached from the filter bags after blowing to settle into the hopper, preventing the dust from reattaching to the adjacent filter bag surfaces after detachment. This ensures effective cleaning of the filter bags and is controlled automatically by a programmable controller for the exhaust valve, pulse valve, and ash discharge valve, etc.

Pulse Jet Dust Collector Features

1. Pulse Bag Dust Collector utilizes the segmented room stop wind pulse blowing cleaning technology, overcoming the drawbacks of conventional pulse dust collectors and segmented reverse blowing dust collectors. It boasts excellent cleaning ability, dust removal efficiency, low emissions concentration, low air leakage rate, low energy and steel consumption, minimal land occupation, stable and superior operation, and good economic benefits. Suitable for purifying dust-gas and recovering materials in industries such as metallurgy, building materials, cement, machinery, chemicals, electricity, and light industry.

2. Due to the use of separated room stop wind pulse jet cleaning, a single blast can achieve the cleaning purpose, thereby extending the cleaning cycle and reducing the energy consumption for cleaning. Additionally, the fatigue degree of the filter bags and pulse valves is correspondingly reduced, significantly extending their lifespan.

3. Bag replacement and maintenance can be performed in individual compartments while the system's fans are running and the system operates normally. The filter bag mouths feature elastic expanding rings for excellent sealing and durability. The filter bag skeletons are designed in a polygonal shape, reducing friction between the bag and the skeleton, extending the bag's lifespan, and facilitating bag removal.

4. Utilize the top-draw bagging method. After removing the frame for bag change, discard the soiled bag into the lower ash bin of the box, and retrieve it through the manhole. This meets the conditions for bag change operations.

5. The housing features an airtight design with excellent sealing. The inspection door is made with superior sealing materials, and leakage is detected during the manufacturing process using kerosene, resulting in a very low wind leakage rate.

6. The inlet and outlet ducts are compactly arranged with low air flow resistance.

Pulse Jet Bag Filter Maintenance & Care

Determine the frequency of ash removal maintenance based on the dust quantity of the dust collector.

2. Determine regular drainage of accumulated water based on the water level in the air cushion bladder.

3. Regularly inspect the pulse cleaning system of the dust collector to ensure proper operation. If not, focus on checking for membrane loss in the pulse valve, malfunction of the electromagnetic pulse valve, and replace them promptly. The filter bags should be cleaned regularly and replaced on schedule.

4. Regularly inspect equipment operation for normalcy based on variations in equipment resistance.

5. Regularly inspect the usage status of vulnerable parts according to the list of wear-and-tear items.

6. Regularly replenish lubricating oil for the equipment's lubricated parts; replace the gear oil in the reducer every six months, and replenish the bearing lubrication points weekly.

7. Pay attention to checking the sealing integrity of the electrical control box to prevent water and dust from entering, and regularly clean the accumulated dust inside the control box.
