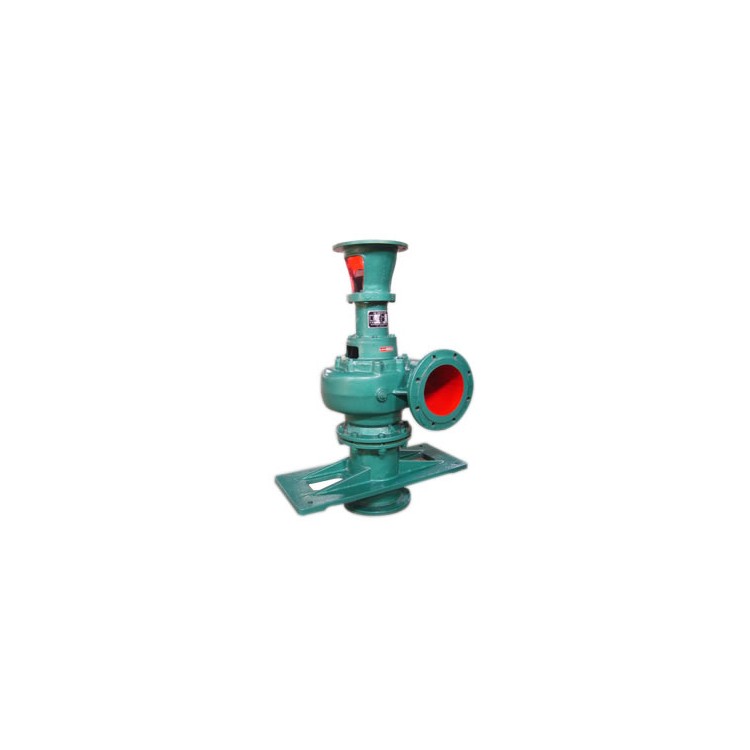

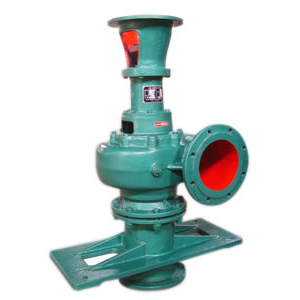

HL Vertical Mixed Flow Pump
1. Overview:
The HL series is an upgraded version of the HW series, featuring the performance characteristics of the HW series pumps, and it is a vertical, single-stage, single-suction, open impeller mixed flow pump casing.
Features include a well-structured design, reliable operation, easy maintenance and installation, high efficiency, compact size, lightweight, minimal footprint, and the ability to rotate the pump body 360°.
2. Application Scope:
HL series pumps are suitable for conveying pulp with a concentration not exceeding 5% and solutions with a pH of 3~10, fiber length less than 80mm, as well as other liquids with similar thermal and chemical properties to water. The temperature of the conveyed liquid should not exceed 50°C. They are widely used in agricultural irrigation and drainage, industrial wastewater treatment, and urban water supply and drainage.
3. Performance Range:
Flow rate: 180~900 m³/h; Head: 3~12.5 m
Import diameter 150~300mm | Matching power 4~30kw
