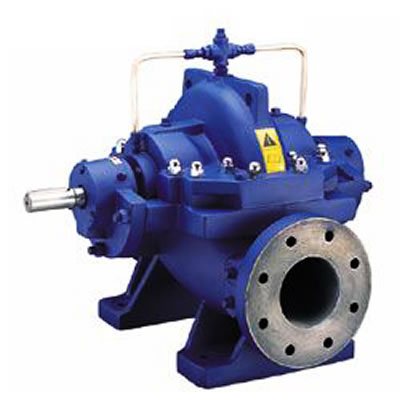

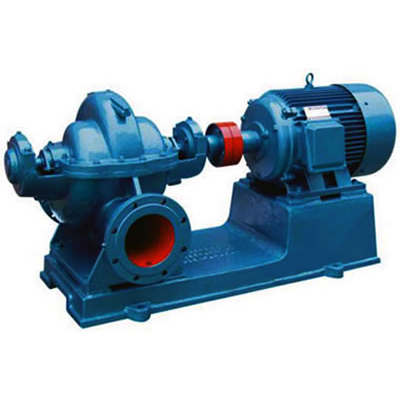

S-type single-stage double-suction clean water centrifugal pump

Product Overview:

The S-type pump is primarily composed of the pump body, pump cover, shaft, impeller, sealing ring, shaft sleeve, and bearing components.

The S Series Single-Stage Double-Suction Centrifugal Pumps are primarily used in waterworks, air conditioning circulating water, building water supply, irrigation, drainage pump stations, power stations, industrial water supply systems, fire protection systems, and shipbuilding industries for conveying liquids.

S-type single-stage double-suction centrifugal pump structural features

1. Compact structure, attractive appearance, good stability, and easy to install.

2. Smooth operation - The optimally designed double-suction impeller minimizes axial force to a low degree and features an excellent hydraulic performance blade shape, precision cast.

The inner surface of the pump casing, the surface of the impeller, and the luster all exhibit significant anti-cavitation properties.

3. Bearings are selected from SKF and NSK for smooth operation, low noise, and extended lifespan.

4. Installation Type: No adjustment required during assembly; adaptable to on-site operating conditions. Available in either vertical or horizontal installation.

5. Equipped with an auto-suction unit, enabling automatic water intake without the need for a bottom valve, vacuum pump, or backfilling; the pump can be activated.

S-type single-stage double-suction centrifugal pump operating conditions:

Flow Range: 160 m³/h to 5,500 m³/h

Flow Range: 5m~150m

Temperature Range: -20℃ to 120℃

Types of Liquids for Conveyance: Various cleaning waters and light corrosive liquids.

Pump cavity pressure: ≤4.0 MPa.
