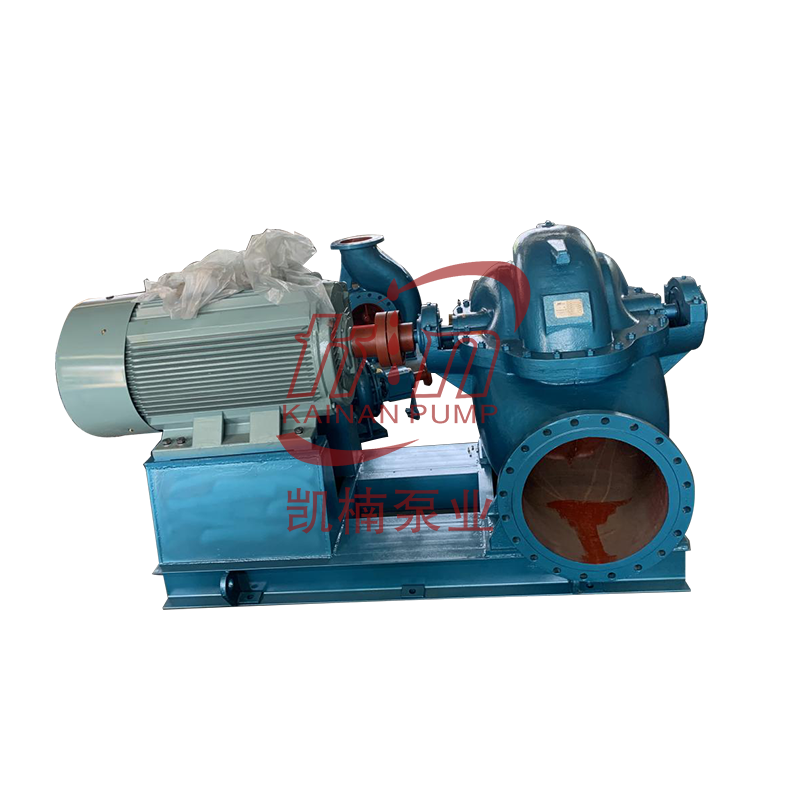

S-type Single-stage Double-suction Clear Water Centrifugal Pump

Product Overview:

The S-type pump is primarily composed of the pump body, pump cover, shaft, impeller, sealing ring, shaft sleeve, and bearing components.

The S Series Single-Stage Double-Suction Centrifugal Pumps are primarily used for conveying liquids in waterworks, air conditioning circulating water, building water supply, irrigation, drainage pump stations, power stations, industrial water supply systems, fire protection systems, and shipbuilding industries.

S-shaped single-stage double-suction centrifugal pump structural features

1. Compact structure, attractive appearance, excellent stability, easy to install.

2. Smooth operation, with an optimized double-suction impeller that minimizes axial force to a low degree, and blades with excellent hydraulic performance, precision cast.

The inner surface of the pump casing, the impeller surface, and the lustrous finish all exhibit significant anti-cavitation properties.

3. Bearings are selected from SKF and NSK for smooth operation, low noise, and extended lifespan.

4. Installation Type: No adjustment required during assembly; adaptable to on-site operating conditions. Available in either upright or horizontal installation.

5. Equipped with a self-priming device, it can automatically suck water, meaning no need for a bottom valve, vacuum pump, or backfilling; the pump can be started.

S-Type Single Stage Double Suction Centrifugal Pump Operating Conditions:

Flow Range: 160 m³/h to 5,500 m³/h

Flow Range: 5m~150m

Temperature Range: -20℃ to 120℃

Types of Liquids for Transportation: Various cleaning water and lightly corrosive liquids.

Pump chamber pressure: ≤4.0 MPa.
