Product Overview
CDL/CDLF is a versatile product capable of conveying a wide range of media from potable water to industrial liquids, accommodating various temperature, flow, and pressure ranges. CDL is suitable for non-corrosive liquids, while CDLF is designed for lightly corrosive liquids.
Application Fields
Water Supply: Waterworks filtration and conveyance, zonal water supply in waterworks, main pipeline pressure boosting, high-rise building pressure boosting.
Industrial Boosting: Process Water Systems, Cleaning Systems, High-Pressure Washing Systems, Fire Protection Systems.
Industrial Liquid Transportation: Cooling and Air Conditioning Systems, Boiler Feed and Condensation Systems, Machine Tool Accessories, Acids and Alkalis.
Water Treatment: Ultrafiltration Systems, Reverse Osmosis Systems, Distillation Systems, Separators, Swimming Pools.
Irrigation: Field irrigation, sprinkler irrigation, drip irrigation.
Operating Conditions
1. Thin, clean, non-flammable and non-explosive liquid, free of solid particles or fibers.
2. Liquid Temperature: Normal temperature -15°C to +70°C
3. Hot Water Type +70℃ to +120℃
4. High ambient temperature: +40℃
5. Altitude: 1000m high
Pump specifications

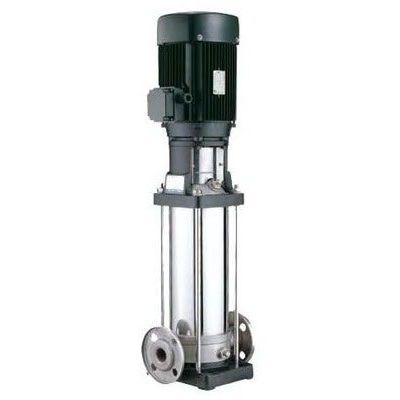

CDL/CDLF is a non-self-priming multi-stage centrifugal pump for standard motor installation. The motor shaft is directly connected to the pump shaft through a coupling at the pump head. The rod bolt secures the pressure-resistant cylinder and flow components between the pump head and the inlet and outlet sections. The pump's inlet and outlet ports are aligned on a straight line at the bottom of the pump. This pump can be equipped with an intelligent protector as required, providing effective protection against dry running, phase loss, overload, and more.
Motor
1. The motor is a fully enclosed, air-cooled standard two-pole motor.
2. Protection Level: IP55
3. Insulation Grade: F
4. Standard Voltage
50Hz：
1×220－230/240V
3×200－220/346－380V
3×220－240/380－415V
3×380－415V
60Hz：
3×200－230/346－400V
3×220－255/380－440V
3×220－227/380－480V
