I. Overview of UHB Type Corrosion and Abrasion-Resistant Mortar Pumps:

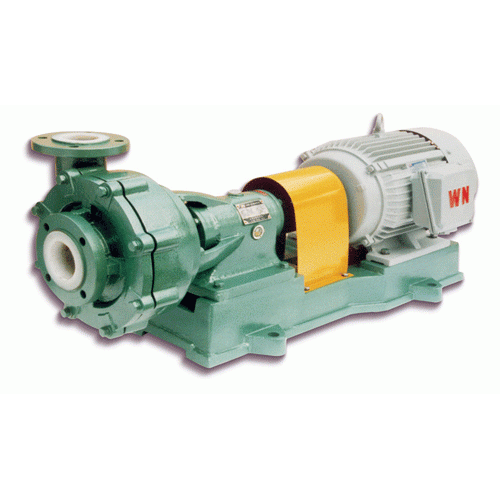

The UHB-ZK Corrosion-Resistant and Abrasion-Resistant Slurry Pump is a cantilevered single-stage single-suction centrifugal pump, specifically designed for conveying corrosive media containing fine particles. The pump is constructed with steel-lined ultra-high molecular weight polyethylene (UHMW-PE), which is the latest generation of engineering plastic for pumps, known for its excellent wear resistance, impact resistance (especially at low temperatures), creep resistance (resistance to environmental stress cracking), and superior corrosion resistance.

Section 2: Features of Corrosion and Abrasion-Resistant Concrete Pump

The UHB-ZK series corrosion and wear-resistant pump is a versatile pump capable of adapting to various working conditions, such as transporting acidic, alkaline clear liquids or slurries; various corrosive slurry in the smelting industry; various dilute acids in the sulfuric acid industry; and various wastewater in the environmental protection industry. This pump is both corrosion-resistant and wear-resistant, with a wide range of applications. It features the following characteristics:

1) Exceptional Abrasion Resistance: All flow parts are made of steel-lined ultra-high molecular weight polyethylene (UHMW-PE). The abrasion resistance of UHMW-PE is the highest among plastics, four times higher than that of nylon 66 (PA66) and polytetrafluoroethylene (PTFE), and 7-10 times that of carbon steel and stainless steel.

2) Excellent Impact Resistance: The impact strength of ultra-high molecular weight polyethylene is at the top among general engineering plastics, five times that of acrylonitrile/butadiene/styrene (ABS) copolymers, and it maintains stability at temperatures as low as -196°C, a feature not found in any other plastic.

3) Excellent corrosion resistance: The pump can withstand various corrosive mediums (acids, alkalis, salts) and organic solvents within a certain temperature and concentration range, having been immersed in 80 types of organic solvents from 20°C to 90°C for 30 days. No abnormal phenomena are observed on the surface, and other physical properties remain almost unchanged.

4) No Noise: The high molecular weight polyethylene has excellent impact absorption, making it a good sound-dampening material. This minimizes the noise generated by liquid flow during transportation.

5) Safe and Reliable, Non-Toxic Degradation: The pump utilizes ultra-high molecular weight polyethylene (UHMW-PE) with stable chemical properties, making it suitable for use in the food industry.

6) Low friction coefficient: The internal friction coefficient of this pump is as low as 0.07-0.11, hence it boasts self-lubrication. Under water-lubrication conditions, its dynamic friction coefficient is half that of PA66 and POM. When operating in sliding or rotating modes, its lubricity exceeds that of steel and brass when lubricated.

7) Excellent Anti-Adhesion: UHMW-PE (ultra-high molecular weight polyethylene) has excellent anti-adhesion properties, comparable to PTFE, making it stand out when transporting media with high viscosity.

Mortar Pumps, Corrosion and Wear-Resistant Mortar Pumps, UHB Mortar Pumps

I. Overview of UHB Corrosion and Abrasion-Resistant Slurry Pumps:

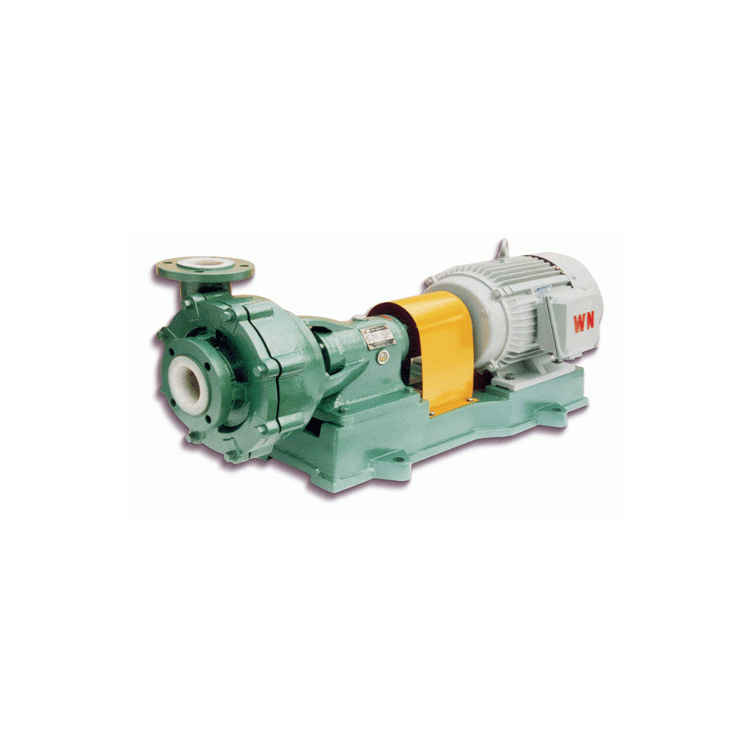

The UHB-ZK Corrosion and Abrasion-Resistant Mortar Pump is a cantilevered single-stage, single-suction centrifugal pump, specifically designed for transferring corrosive media containing fine particles. This mortar pump is made of steel-lined ultra-high molecular weight polyethylene (UHMW-PE), which is the latest generation of engineering plastic for pumps known for its corrosion and abrasion resistance. Its outstanding feature is its superior wear resistance, impact resistance (especially at low temperatures), creep resistance (resistance to environmental stress cracking), and excellent corrosion resistance.

II. Product Features of Corrosion and Wear-Resistant Mortar Pumps:

The UHB-ZK series corrosion and wear-resistant pump is a versatile pump that can accommodate various working conditions, such as transporting acidic, alkaline clear liquids or slurries; various corrosive sludges in the metallurgy industry; various dilute acids in the sulfuric acid industry; and various wastewater in the environmental protection industry. This pump is both corrosion-resistant and wear-resistant, with a wide range of applications. It features the following characteristics:

1) Exceptional wear resistance: All flow parts are made of steel-lined ultra-high molecular weight polyethylene (UHMW-PE). The wear resistance of UHMW-PE is the highest among plastics, four times higher than that of nylon 66 (PA66) and polytetrafluoroethylene (PTFE), and 7-10 times that of carbon steel and stainless steel.

2) Excellent impact resistance: The impact strength of ultra-high molecular weight polyethylene is at the top among general engineering plastics, five times that of acrylonitrile/butadiene/styrene (ABS) copolymers, and it maintains stability at temperatures as low as -196°C, a feature not found in any other plastic.

3) Excellent Corrosion Resistance: This pump can withstand various corrosive media (acids, alkalis, salts) and organic solvents within a certain temperature and concentration range. It has been soaked in 80 organic solvents ranging from 20°C to 90°C for 30 days. No abnormal phenomena are observed on the surface, and there is almost no change in other physical properties.

4) Noiseless: High molecular weight polyethylene has a high impact absorption capacity, making it an excellent sound-dampening material. This significantly reduces the noise generated by liquid flow during transportation.

5) Safe and Reliable, Non-Toxic Degradation: The pump is made of ultra-high molecular weight polyethylene (UHMW-PE), which has excellent chemical stability, making it suitable for use in the food industry.

6) Low Friction Coefficient: The internal friction coefficient of this pump is as low as 0.07-0.11, hence it has self-lubricating properties. Under water-lubricated conditions, its dynamic friction coefficient is half that of PA66 and POM. When operating in sliding or rotating modes, it offers better lubricity than steel and brass with added lubricant.

7) Excellent Non-Adhesion: UHMW-PE (ultra-high molecular weight polyethylene) has great non-adhesion properties, comparable to PTFE in adhesion resistance, thus performing outstandingly when conveying media with high viscosity.

Section 3: Corrosion and Abrasion-Resistant Pump Wear Resistance Comparison Chart:

IV. Main Performance Introduction of Corrosion and Wear-Resistant Pumps:

1) Corrosion and abrasion resistant, multi-functional pump, suitable for acidic, alkaline, and liquid slurry materials.

2) The pump housing is constructed with steel lined ultra-high molecular weight polyethylene, with a lining thickness of 8-20mm. This pump utilizes the lining plastic patent technology, offering superior heat deformation resistance, crack resistance, anti-deterioration, and high operating temperature capabilities when compared to similar pumps.

3) Vane types: Split and Closed, available for selection based on medium condition.

4) Seals: K-Type Power Seal, K1-Type Power Seal, T-Type Packing Seal, T1-Type Packing Seal, C3-Type Non-Standard Seal.

5) Applicable Media: Concentrations below 80% sulfuric acid, below 50% nitric acid, various concentrations of hydrochloric acid, liquid alkali; suitable for both clear liquids and slurry.

4. Key Technical Parameters: Operating Temperature -20℃ to 90℃ (with modified materials, can exceed 100℃), Imported Diameter 32mm to 350mm, Flow Rate 5 to 2600 m³/h, Head 80m or less.

Five. Corrosion and wear-resistant mortar pump application range:

1) Phosphoric Acid Fertilizer Industry: Transportation of media such as dilute acid, mother liquor, wastewater, seawater, fluosilicic acid containing silica gel, and phosphoric slurry.

2) Non-ferrous Metals Smelting Industry: Particularly suitable for transporting various acidic solutions used in hydrometallurgical processes of lead, zinc, gold, silver, copper, manganese, cobalt, rare earth elements, etc., corrosive slurry, pulp (for use with filter presses), electrolyte, wastewater, and other media.

3) Chemical and Other Enterprises: Positions for various sulfuric acid, hydrochloric acid, alkaline, and oil liquid or slurry. Production of titanium dioxide, iron oxide powder, and a range of dyes and pigments, as well as processing of non-metallic minerals.

4) Chlorine Alkali Industry: Hydrochloric Acid, Liquid Caustic Soda, Electrolytic Liquids, etc.

5) Water Treatment Industry: Pure water, high-purity water, wastewater (leather wastewater, electroplating wastewater, electronic wastewater, papermaking wastewater, textile wastewater, food wastewater, domestic wastewater, etc.).

6) Steel Companies: Sulfuric acid and hydrochloric acid posts in pickling systems, wastewater with impurities.

7) Wet Flue Gas Desulfurization Circulation Pumps: Suitable for alkaline, acidic, and corrosive service conditions.

8) Transportation of corrosive liquids in the coal and coal chemical industries, as well as coal slurry; pumps for coal washing and selection.

Corrosion and wear-resistant mortar pump start-up, operation, maintenance, and disassembly procedures

(1) Startup, Operation, and Maintenance

1.1 Pre-Operation Inspection

Before operation, manually rotate the coupling or shaft to check if the direction is correct and if the movement is smooth. If it's difficult to rotate or there are unusual sounds, inspect it immediately. During inspection, first check the coupling for levelness by hand, and observe the position of the lubricant through the oil level sight in the bearing housing to ensure it's near the centerline of the sight (if too much, drain some; if too little, add some). Rotate while inspecting. If the issue persists, disassemble the pump for inspection (refer to the structural diagram and disassembly procedure in this manual), clean any foreign objects, and contact the factory to negotiate a solution.

1.2 Starting Procedure

Fill the pump with liquid

b. Timely open the import valve (if the import valve is a one-way check valve)
