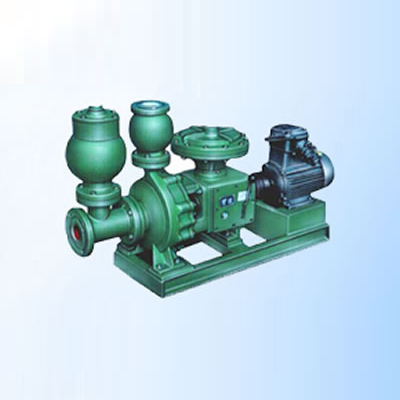

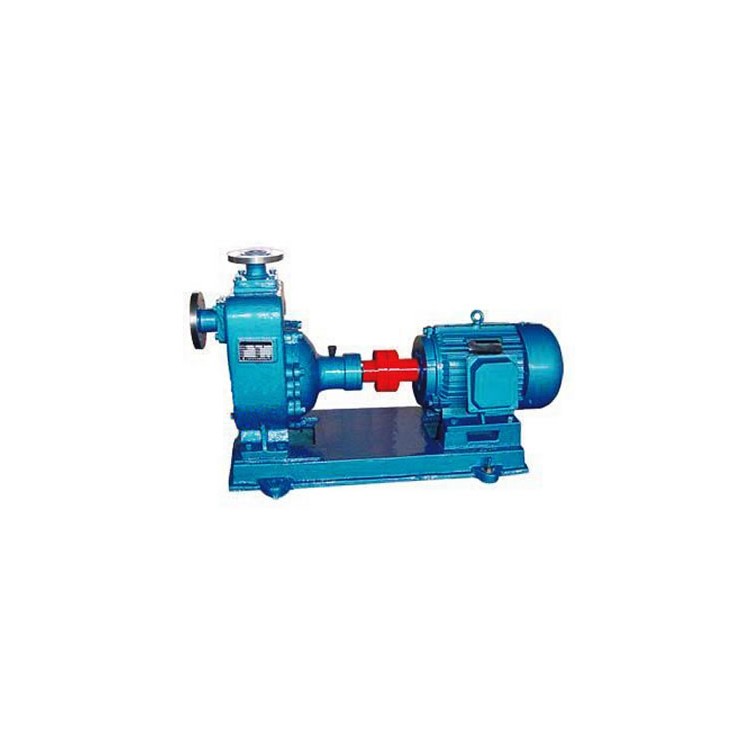

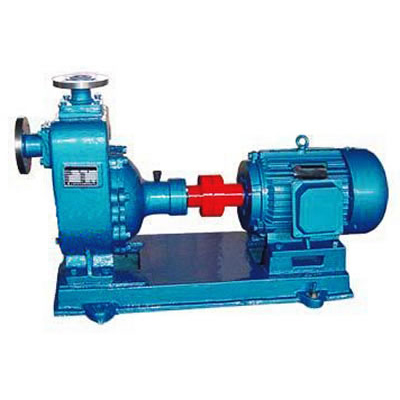

FMZ Self-Priming Pump

Overview

The FMZ self-priming pump is a single-suction centrifugal chemical pump produced by our company. It boasts excellent stability, rapid self-priming, and is suitable for transporting corrosive media containing solid particles less than 3mm at temperatures ranging from 0°C to 150°C.

Pump performance range: Flow rate of 1.6-400 m³/h, head of 5-125 m. Suction height of 5 meters or less.

According to the type of medium being conveyed, the materials for the contacting liquid part of the non-clogging self-priming chemical centrifugal pump can be selected from cast iron, cast steel, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti, 316, 316L, Ti, and other materials.

Features

The FMZ type temperature and corrosion-resistant self-priming chemical centrifugal pump is mainly composed of parts such as the pump body, impeller, pump cover, shaft, bracket, mechanical seal, and shaft sleeve.

Performance Range

Flow Rate: 3.2-280 m³/h

Flow Range H: 12-90m

Erosion Allowance: 3.5-5.5m

Rated Power: 1.5-90 kW
