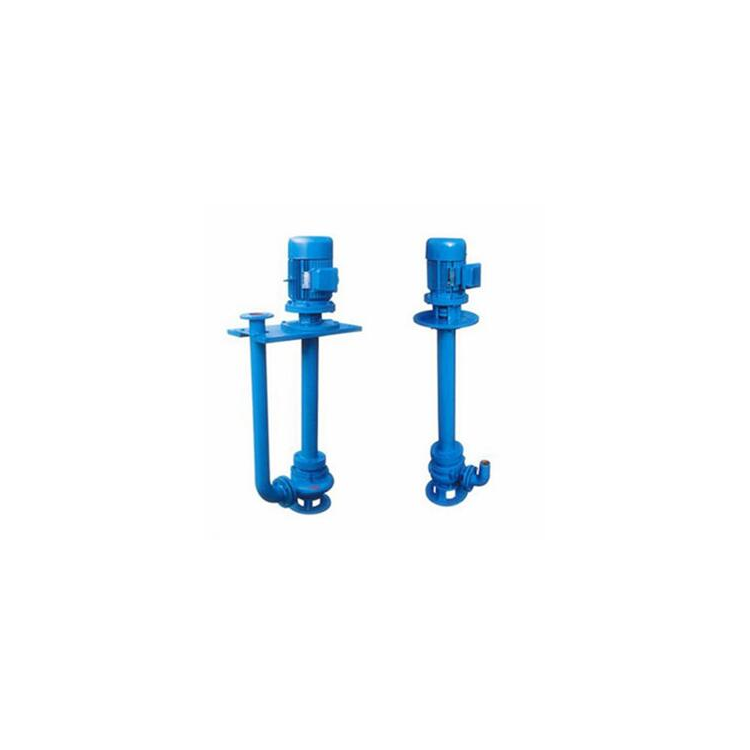

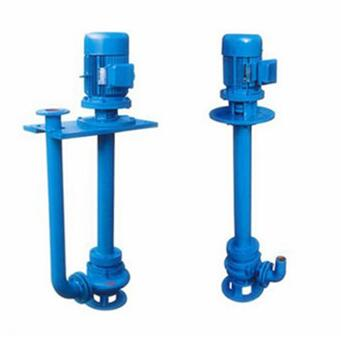

YW Submerged Waste Pump Description

The YW Submerged Sump Waste Pump features a unique single or double blade impeller design, significantly enhancing the passage capability of solids. It can effectively handle fibers up to 5 times the pump diameter and solid particles with a diameter approximately 50% of the pump diameter. The YW pump boasts a compact structure, small size, low noise, and remarkable energy-saving performance. It's easy to maintain and does not require a pump house; simply immerse it in water for operation. This greatly reduces construction costs, making it an ideal choice for civilized factories.

Section II: Model Significance of YW Submersible Pumps

For example: 50YW25-32-5.5

50 - Inlet Diameter (6 kg Class Flange)

Y-Submerged Pump Code

W- Waste Pump Code

25 - Flow rate (m³/h)

32 - Head (m)

5.5 - Motor Power (kW)

Section 3: YW Submerged Sump Pump Structure Description

The YW Submersible Pump can be equipped with an automatic safety protection control cabinet to meet customer needs, which protects against leakage, electrical leakage, overload, and over-temperature, enhancing the product's safety and reliability. The float switch can automatically control the pump's start and stop based on the required liquid level, making it extremely convenient without the need for constant supervision. The seal oil chamber of the YW Submersible Pump is equipped with a high-precision anti-interference leakage detection sensor, and thermal sensitive elements are pre-installed in the stator winding for motor protection. The YW Submersible Pump can be fitted with a dual-track automatic coupling installation system upon customer request, greatly facilitating installation and maintenance without the need to enter the sewage pit. There are two different installation methods: fixed automatic coupling installation system and mobile free installation system.
