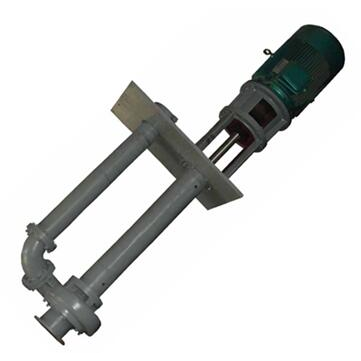

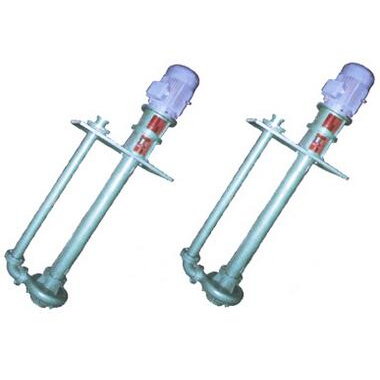

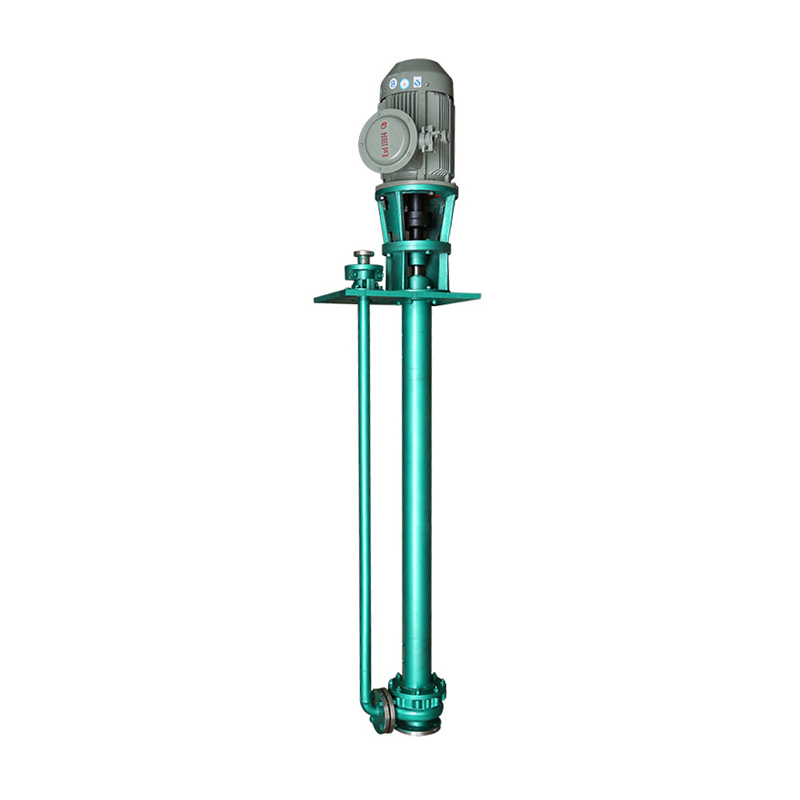

LSB High-Temperature Concentrated Sulfuric Acid Submerged Pump Introduction

The LSB type high-temperature sulfuric acid submersible pump is primarily used for transporting high-temperature concentrated sulfuric acid and is also compatible with all other submersible pump applications. It meets the DIN 24256 / ISO 2858 standards in terms of performance and dimensions, features high standardization, and is easy to dismantle and maintain.

The LSB submerged pump draws on extensive experience from both domestic and international sulfuric acid pump structural designs, increasing the suction pipe length to enhance the rigidity of the pump unit, ensuring smooth and reliable operation. It is a vertical single-stage single-suction cantilever submerged pump. The hydraulic models of the pump are developed and selected to ensure stable performance and high efficiency with energy saving. Advanced anti-corrosion materials are researched, developed, and utilized domestically.

Section 2: LSB High-Temperature Concentrated Sulfuric Acid Submerged Pump Model Significance

　　 40LSB-30A

40 represents flow rate (m3/h)

LSB stands for series code.

30 represents the throw (m)

A represents impeller cutting

Section 3: LSB Concentrated Sulfuric Acid Submerged Pump Structural Features

The LSB type submersible pump is a vertical single-stage single-suction centrifugal pump, primarily composed of pump housing, pump cover, impeller, shaft, base plate, intermediate pipe, discharge pipe, seals, bearings, and coupling, etc.

Axial thrust is primarily balanced by the back vanes of the impeller.

The remaining axial force and rotor weight are supported by the rolling bearings.

Pumps can fully utilize their suction lift height; increasing the intake pipe can enhance the insertion depth of the pump unit.

But before starting, the liquid level must be above the centerline of the impeller.

Direction: The rotation is counterclockwise when viewed from the motor to the pump end.

4. LSB Liquid Sulfuric Acid Submerged Pump Performance Parameters

Pump modelQ（m3/h）H（m）N(r/min)η(%)Power (KW)Quality (KG)

PaPgr

25LSB-4025402950604.511570

25LSB-40A23.7362950593.911570

25LSB-40B22.5322950583.411570

25LSB-40C21292950572.97.5570

55LSB-4055402950669.122630

55LSB-40A52362950657.818.5630

55LSB-40B49.5322950646.715630

55LSB-40C46.7292950635.915630

100LSB-40100402950681637740

100LSB-40A953629506713.930740

100LSB-40B903229506611.930740

100LSB-40C852929506510.330740

100LSB-501005029507418.445735

100LSB-50A95.345.529507316.237735

100LSB-50B90.7412950721437735

20LSB-3020301450433.811730

20LSB-30A19271450423.311730

20LSB-30B18241450412.97.5730

20LSB-30C1721.51450402.57.5730

40LSB-3040301450536.215980

40LSB-30A38271450525.415980

40LSB-30B36241450514.611980

40LSB-30C3421.51450504.011980

80LSB-3080301450651030940

80LSB-30A76271450648.722940

80LSB-30B72241450637.522940

80LSB-30C6821.51450626.418.5940

200LSB-302003014507820.9551020

200LSB-30A1902714507718.1451020

200LSB-30B1802414507615.5371020
