【Gas Station Aluminum Strip Clip Panel】Product Introduction:

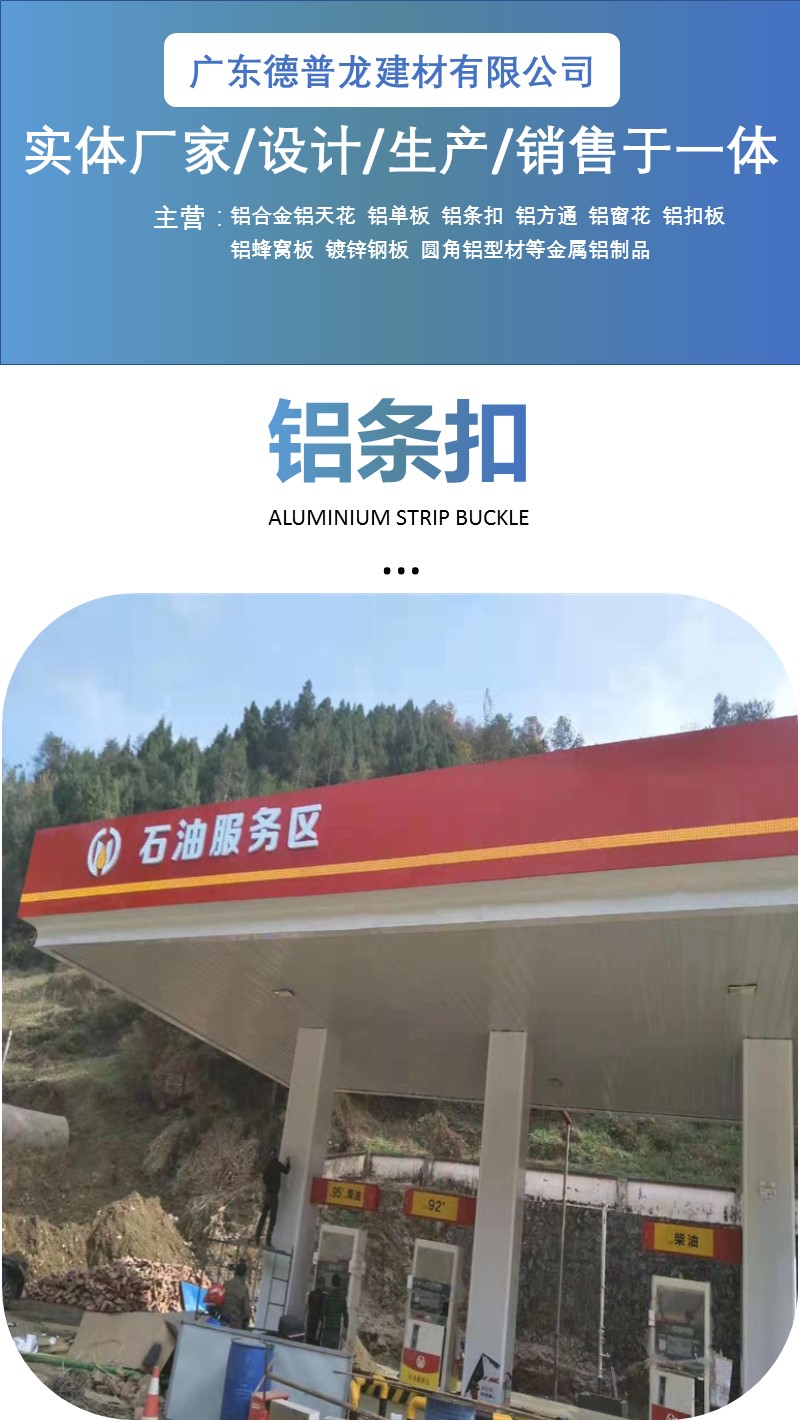

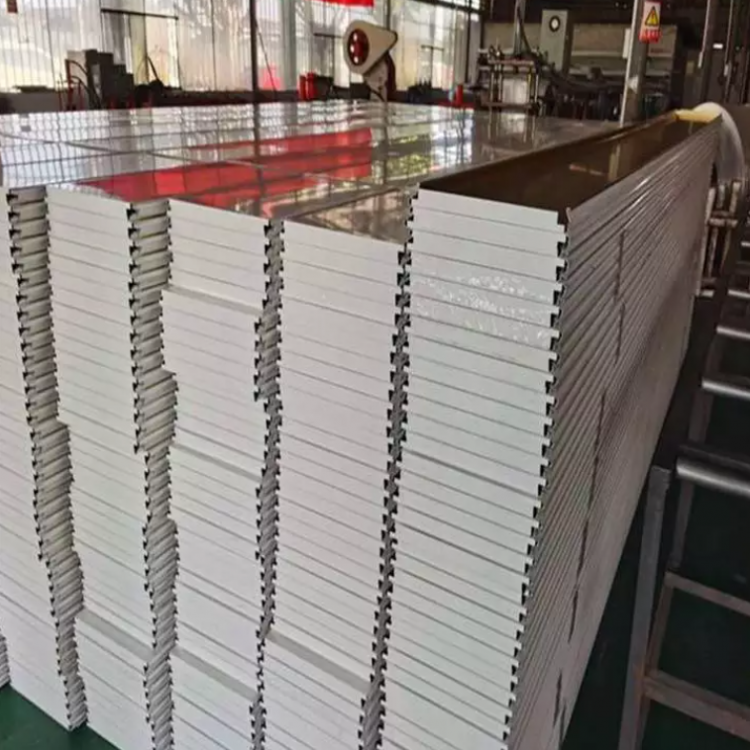

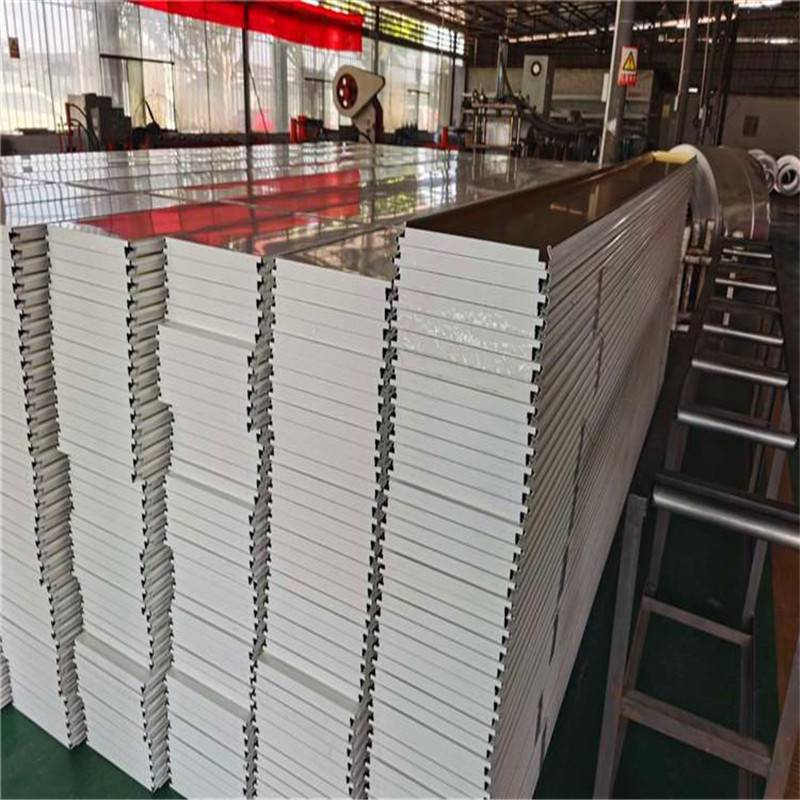

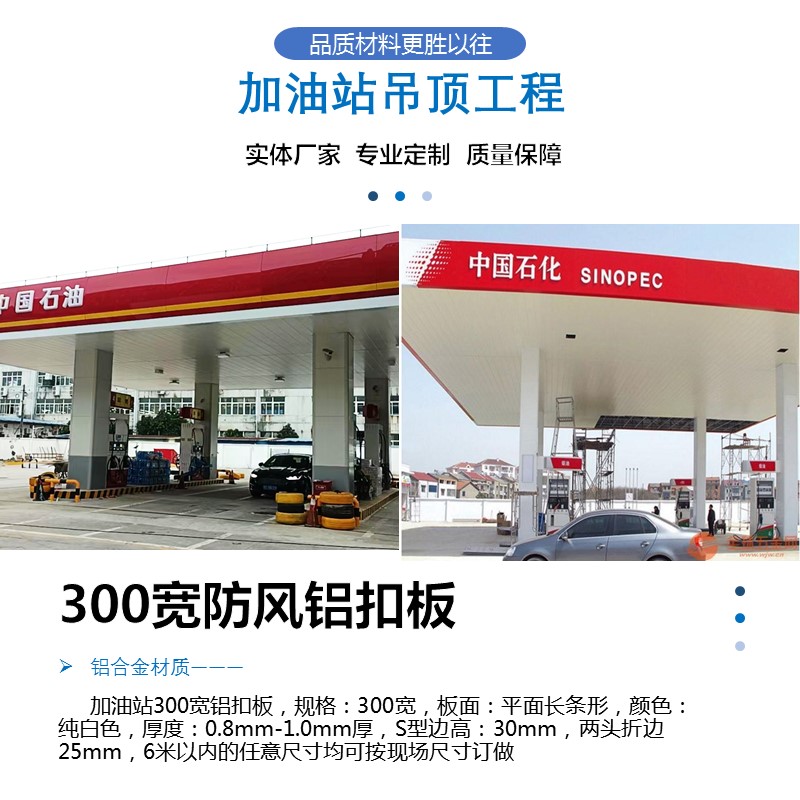

Factory for Wind Deflectors with S-Shaped Ends and Aluminum Strips for Gas Station CanopiesGas stations, filling stations, nuclear power plants, toll stations, charging stations, gas refueling stations, PetroChina's gas stations in various cities are undergoing renovations and upgrades. The pursuit of fashion and fire safety requirements are quite important with the development of the times. Different brands have different ceiling decorations, such as aluminum panels. The length of ceiling decorations varies among gas stations. The 300mm wide wind-resistant aluminum strip扣板 is a type of wind-resistant aluminum strip produced by mechanical processing, customized in length and width according to the canopy dimensions, with folded edges at both ends. Thickness: 0.8mm-1.0mm. Also known as long strip high-edge aluminum alloy strip, our company has a stock of original color aluminum coils and roll-coated white aluminum coils, producing and processing according to the customer's order size.

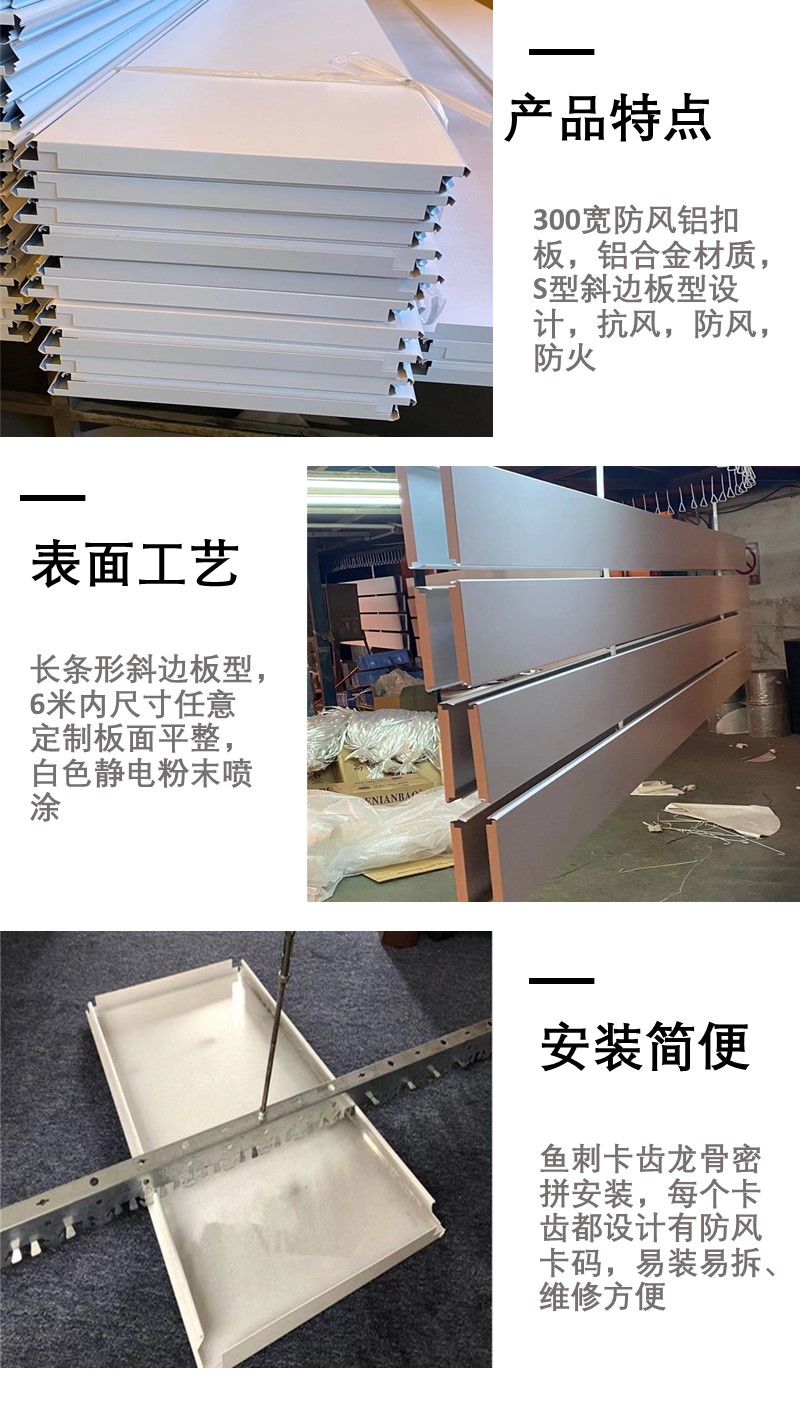

Gas Station Aluminum Strip Clip Specifications

Material: Aluminum Alloy

Thickness: 0.8-1.0mm

Sheet Width: 150 Sheets, 300 Sheets

Board edge thickness: 30mm (standard)

Board Edge Style: Beveled (Standard)

Panel Form: Flat

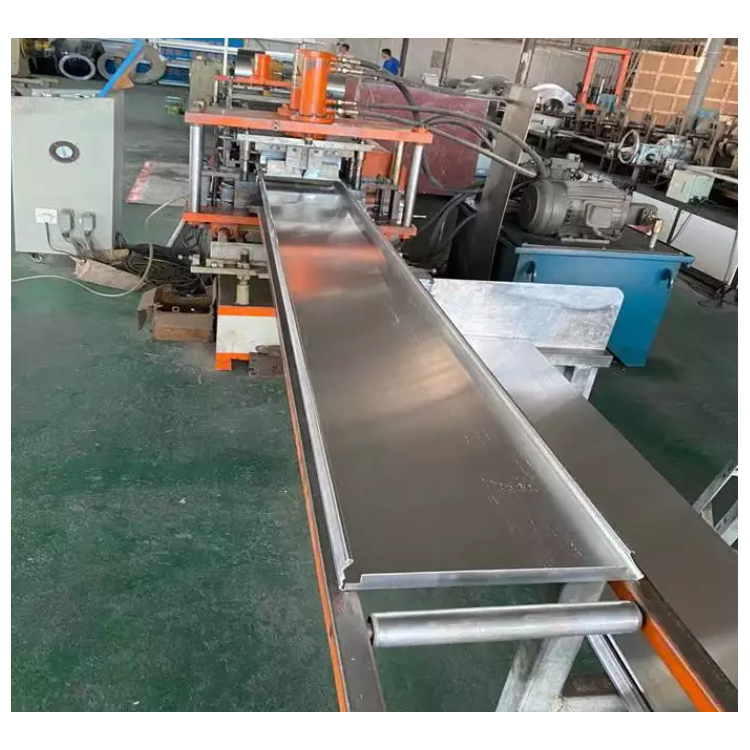

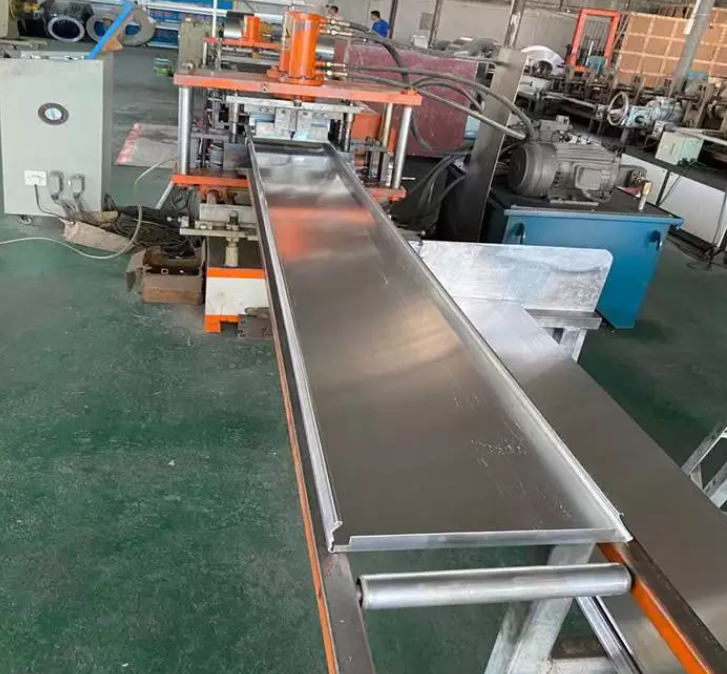

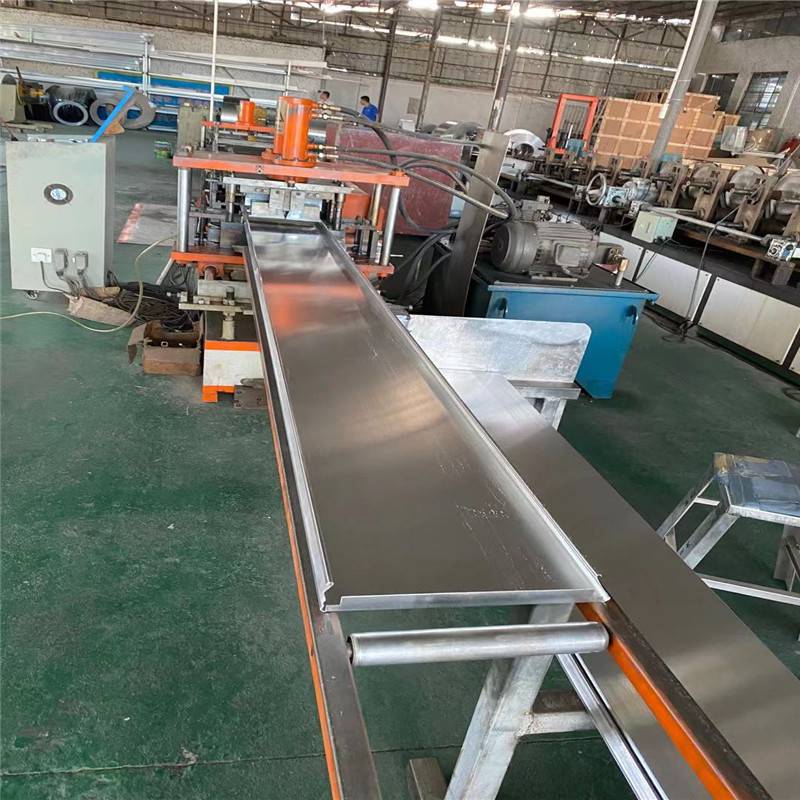

Molding Method: Machine Molding

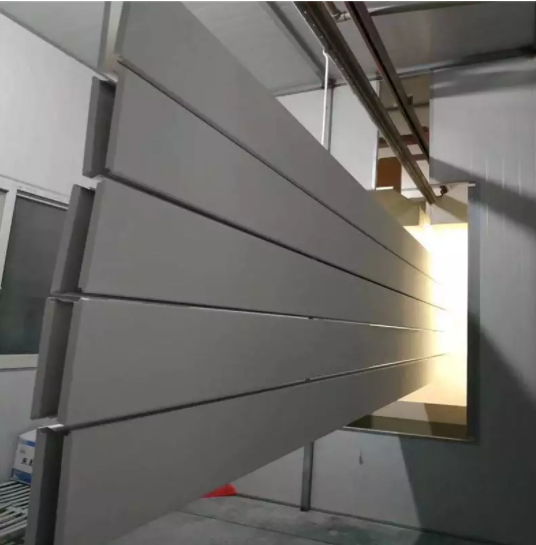

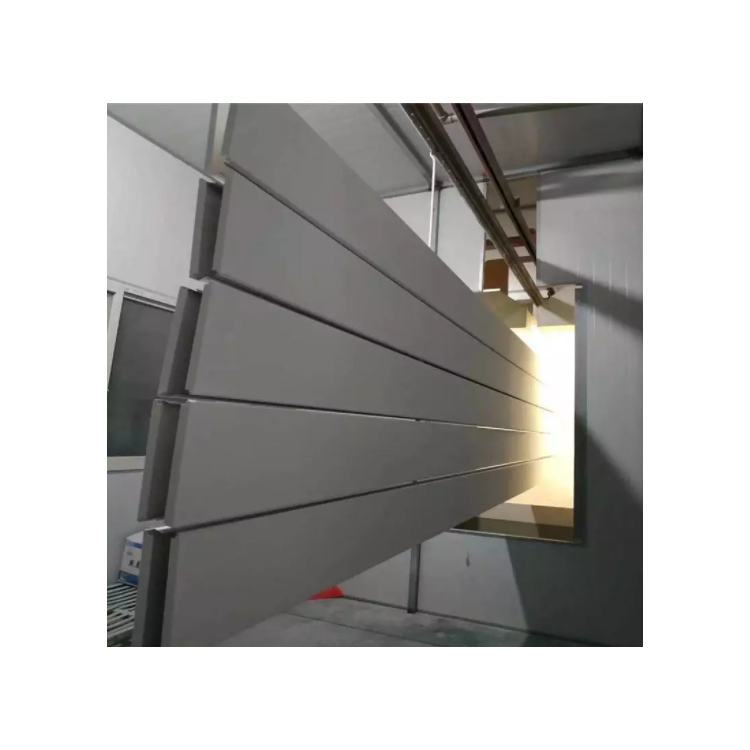

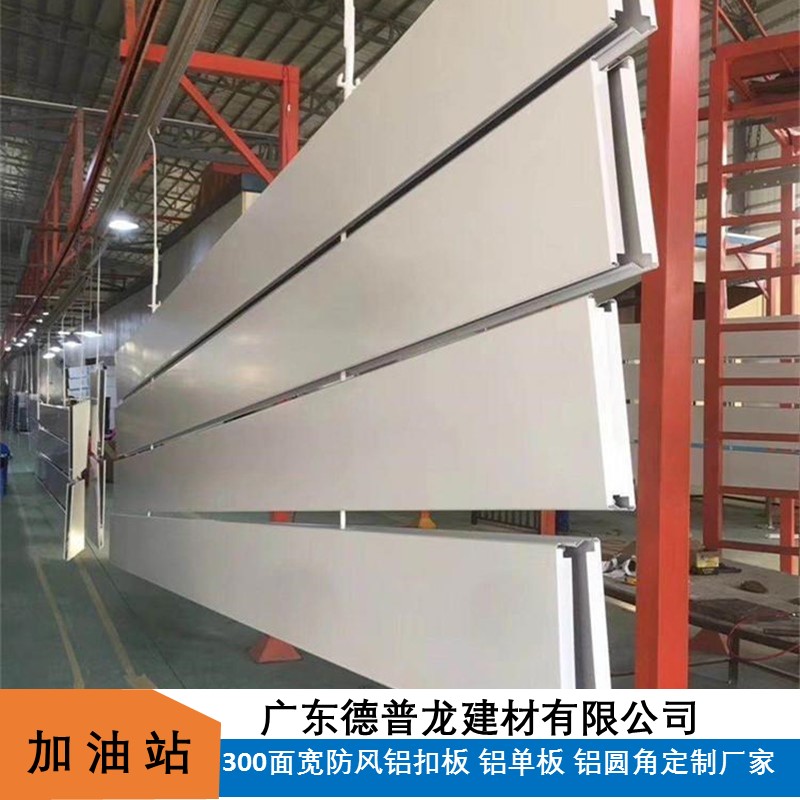

Surface Treatment: Electrostatic powder coating, heat transfer wood grain, roll coating, film lamination, paint.

Dragon Bone: S-shaped strip-type buckle rib

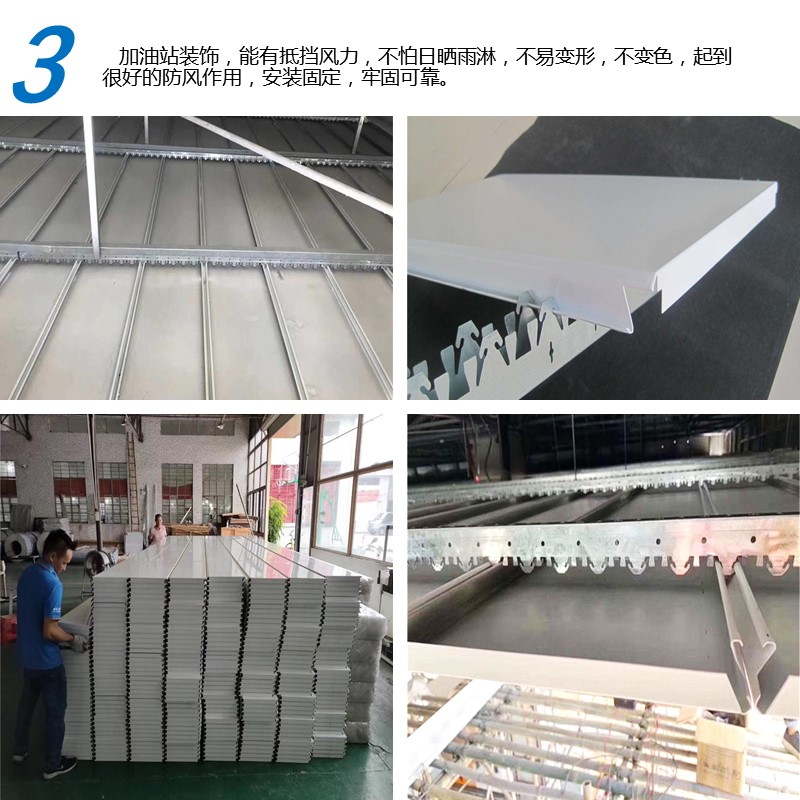

Fuel Station Windproof Aluminum Strip Clip Installation Process:

Directly fix with self-tapping screws, simple and convenient.

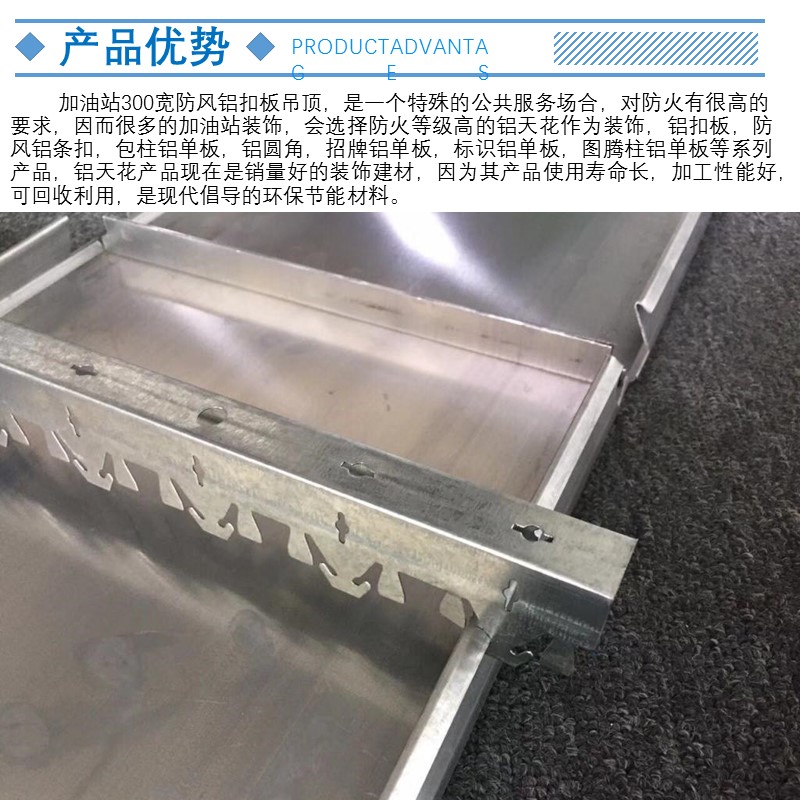

Two, use triangular rib clip-on fasteners. Install triangular ribs at the bending position of high-edge S-shaped aluminum strip fasteners, and simply clip the bending tabs into the triangular rib grooves.

Three, lay the T-bone flat. Place the S-shaped wind-resistant aluminum plate from the gas station directly flat on both sides of the T-bone's T-shape.

Four: Aluminum profiles are laid flat, with the same usage as T-beams.
