Changzhou Taixiang Automated Arc Welding Robot Kelda Robot Manufacturer Welding Robot Solution Quotation
Yaskawa arc welding robot AR2010 product features:
1. Fast welding speed, improving welding production efficiency,
2. Adopting a hollow arm structure, it is possible to choose between welding internal or external wiring of cables, allowing for suitable equipment for customers' work and equipment,
3. Adopting a design that reduces interference between the arm and peripheral devices. Contribute to the space saving of equipment.

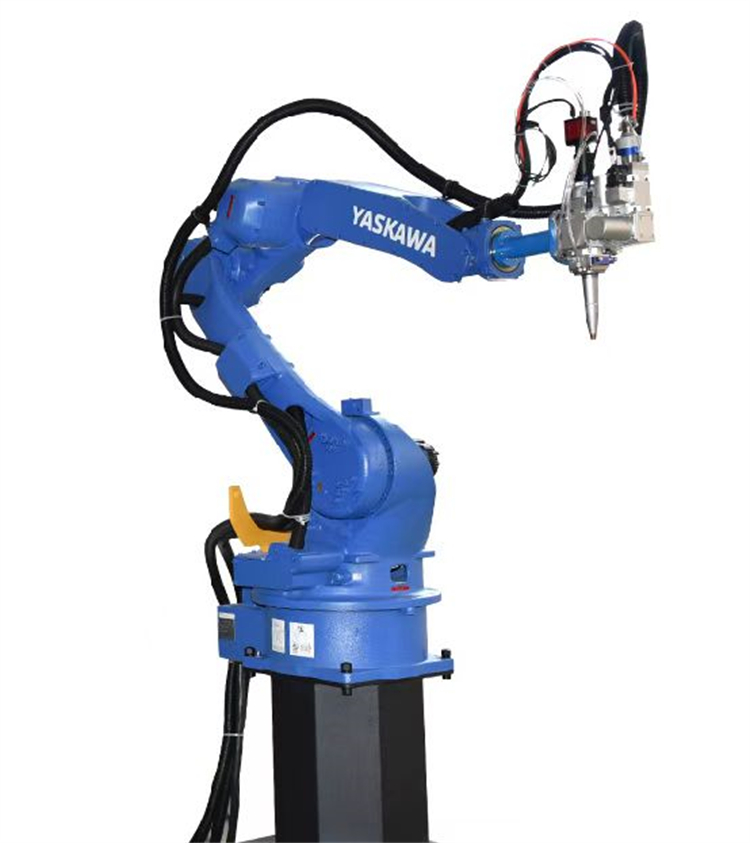

Robot body image:
Characteristics of YRC1000 TIG Robot Controller for Argon Arc Welding:
1. Small, high-speed, high-precision, and easy to operate
2. Dimensions: 598 (width) x 427 (depth) x 490 (height) mm, 125L
3. Load: Small purpose: 70kg, medium/large purpose: 85kg (can accommodate external 3-axis)
The configuration of the Taixiang automated argon arc welding TIG welding robot welding machine includes: variable frequency AC/DC, high-frequency fast pulse (Miganik) self melting, automatic wire feeding, hot wire, etc
Introduction to TIG Robot Welding Machine for Argon Arc Welding
Bigao WSME315/500: Variable frequency AC/DC pulse argon arc welding machine, with pulse welding, wire feeding welding, water cooling, suitable for carbon steel; Stainless steel, aluminum alloy
Ethernet digital communication is used for welding materials and connecting with robots.
Introduction to Taixiang Standard Welding Robot Workstation:
TX-DZFZ 300 model introduction:
1. This model is an integrated compact dual station reversible welding workstation
2. Dual station application, welding on one side and loading and unloading on the other side, improving productivity
3. Integrated model, no installation required, floor standing and functional
4. The digital control system is simple and easy to learn
5. Small footprint, improving production efficiency
6. Suitable for gas shielded welding, argon arc welding, laser welding
7. Suitable for parts that require welding at multiple locations
Technical parameters of welding workstation:
Internal structure of TX-DZFZ 300 welding workstation:

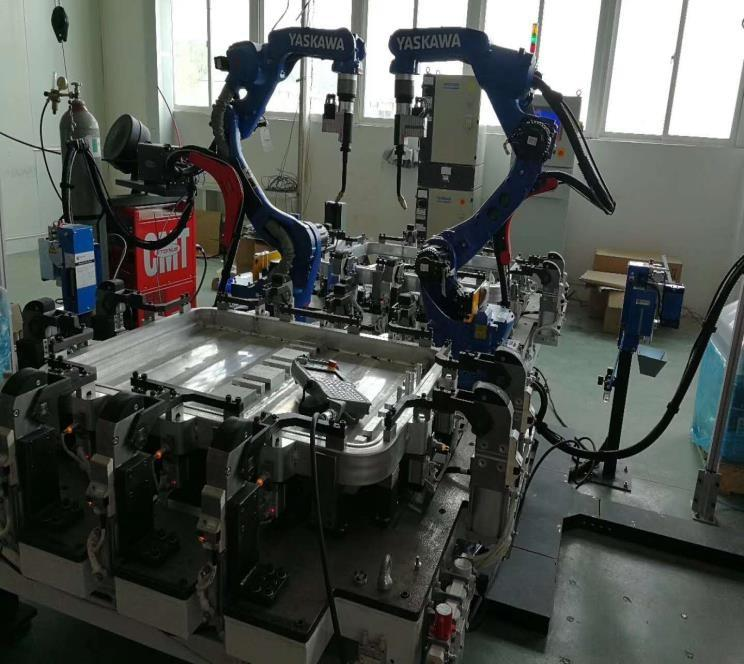

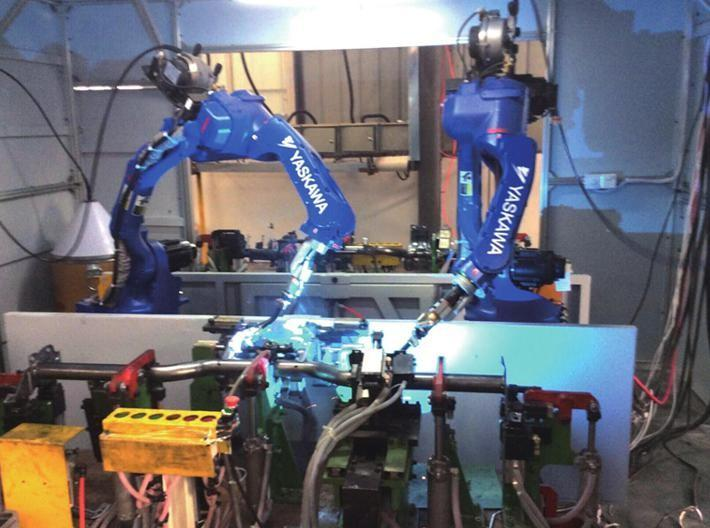

On site use diagram of dual station welding robot:
