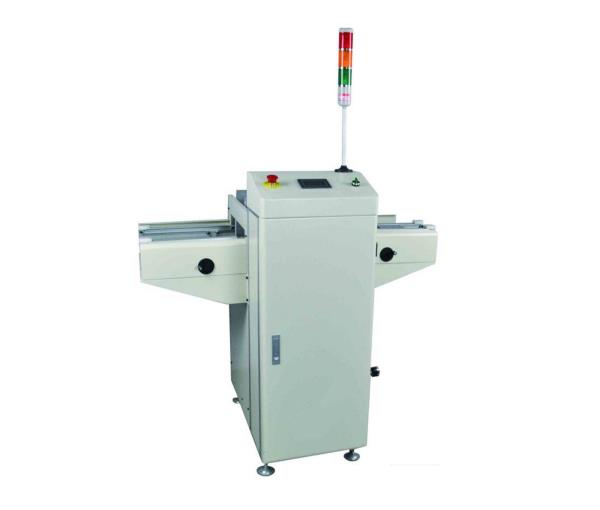

NG/OK -SMT Screening Machine

Features: This equipment is used for分流NG products for repair after the detection equipment on the SMT production line.
Utilizing Panasonic PLC programmable control system, with a touch screen operation for easy understanding.
2. Multi-section design for easy and stable use.
3.  Storeable for 5 pieces of NG substrates
4.进出口 and stop-loss positions utilize Panasonic SEMSOR for precision and reliability.
Equipped with various alarm sound functions.
6. The lifting platform is equipped with a stepper motor, offering reliable and stable performance.
7. Compatible with SMEWA interfaces.


NG/OK Separator Technical Specifications:

Transmission Height: 900 ± 30mm
Transfer Speed: 0.5～20M/MIN
Spacing: 15mm
4.        Track Fastening Method: 1 Track Fixed
5. Belt Type: Imported Wear-Resistant Flat Belt
6. Transmission Direction: Left to Right or Right to Left Options Available
7. Power and Voltage: 230V AC; Single Phase 250VA


NG/OK Separator Options:

2. Board inventory
3. Aircraft size
4. Other items available for customization upon customer request




NG/OK Separator Technology

1. Machine Structure Principle: Typically installed after inspection equipment, it directly routes OK items to the next station and stores NG items to avoid post-production repair hassles. The value it can achieve after the AOI in front of the furnace.
2. Operating Modes: FIFO (First In, First Out), LIFO (Last In, First Out), NG Temporary Storage, Direct-Through Mode;
3. The unit primarily serves to balance the speeds of the front and rear machines, acting as a buffer.
4. Customized non-standard models are available according to varying PCB sizes and functional requirements.
5. Suitable for various SMT, DIP, or assembly production lines.
6. The machine's internal storage board status is displayed intuitively within the human-machine interface.
7. Equipped with high-performance PLC control, featuring stable operation and electromagnetic interference resistance.
8. User-friendly interface with convenient and simple human-machine dialogue; work status can be monitored through IO.
9. Taiwan Mingwei DC power supplies provide independent power to ensure the supply of photoelectric sensors and stepper motors, enhancing equipment stability.
10. Chassis made of 2mm cold-rolled steel plate, laser processed + CNC stamping + CO2 protected welding + powder coating process + precise assembly technique.
11. Standard equipped with industry-standard signals: SMEMA, capable of online automated operation with other equipment.
