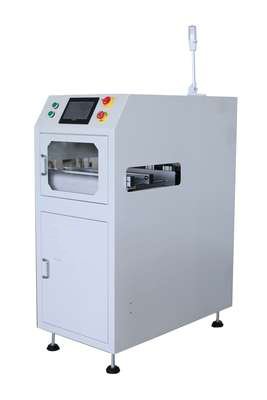

※Features of SMT Fully Automatic Vacuum Suction Plate Machine:
Robust and stable design
PLC Control System
Human-Machine Interface Control Panel, for easier operation
☆Flexible suction cup design, high-pressure suction, adjustable suction position
☆ Independent vacuum generator unit, with high efficiency and reliability on the top plate
☆Motor-driven screw adjusts PCB width for ease and accuracy
☆Primary pneumatic accessories are made with Japanese (SMC) products
☆ Compatible with SMEMA Interface
◆ Suitable for bare boards without components, can be stacked neatly inside the machine.
◆Compatible with HLD-002 PCB Feeding Machine, can be converted into a conveyor.
◆ Innovative design with PCBs stacking up and down with the lifting platform, maintaining a fixed relative distance with the suction cups for fast transmission and smooth, high-efficiency operation.
◆Touch Win Human-Machine Control, featuring convenient and simple menu-style operation.
◆ Mitsubishi PLC control, multifunctional electrical circuit and program design, stable performance, ensuring smooth and uninterrupted production line operation
Production capacity.
◆ Features 3 operating modes: vacuum plate lifter, vacuum plate receiver, and conveyor.
Special requirements can be customized, with individual designs available.
