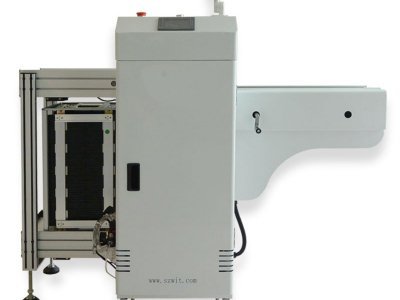

The unloading machine is used for fully automatic board collection in SMT production lines.
Features of MT Automatic Plate Unloading Machine:
1. Utilizes a four-cylinder frame design for stability and reliability, ensuring accurate board collection.
2 Manual crank push rod cylinder width adjustment system, convenient and quick
3 Built-in fault retrieval function and safety detection system, with audio and visual alarms in case of anomalies.
4 Features a PLC central control system for stable performance.
The 5-axis lifting system utilizes imported ball screw and carbon steel columns, featuring low noise, minimal vibration, and precise positioning.
6 Features SMEMA communication interface, capable of connecting with other automated equipment
Technical Specifications of Fully Automatic Plate Unloading Machine:
| Model | Universal | Enlarged | Extra-large |
| Dimensions (L×W×H) | 2000×800×1600mm | 2800×1010×1600mm | 2800×1080×1600mm |
| Applicable material box | 355×320×563mm | 535×460×570mm | 535×530×570mm |
| PCB Size (L×W) | 350×50~250mm | 530×50~390mm | 530×50~460mm |
| Gas Source Pressure | 5KGf/cm² | ||
| Power Pressure | AC220V 50/60HZ | ||
| Transmission Height | 900±20mm | ||
| PCB Thickness | 0.4-8mm | ||
| PCB shipping direction | Left to Right or Right to Left | ||
| Material Rack Lift and Lower Step Distance | 10→100mm | ||
| Repetitive accuracy | 0.05mm | ||
| Weight | 240Kg | 270Kg | 290Kg |
We specialize in supplying PCB automatic depaneling machines, which can be customized according to customer requirements.
