Product Parameters: Main Function

Used for connection between SMT and AI production lines, suitable for PCB damping, detection, testing, or manual insertion of electronic components.

This unit is used to connect with SMT productions line

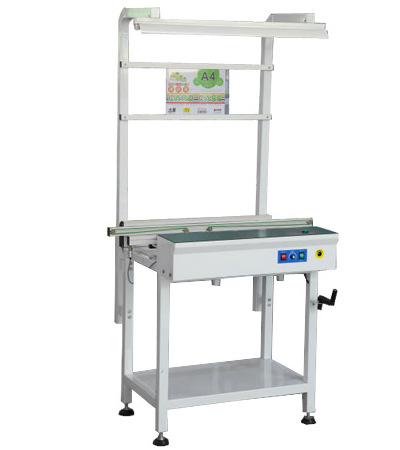

SMT Transfer Bench Product Descriptioncription

1. Modular design

2. Square tube framework with electrostatic powder coating on the surface, and reinforced body design for enhanced stability.

3. The instrument panel facilitates manual assembly and material preparation, featuring ergonomic design to minimize arm fatigue; Ergonmic design table for parts place and arm rest

4. Variable Speed Control

5. Smooth parallel width adjustment with stainless steel threaded rod

6. Standard SMEMA four-core signal cable, ready for direct connection with other equipment

SMT Transfer Tables, Fully Automatic Transfer Tables, Affordable Transfer Tables, Transfer Tables Manufacturers Wholesale

0.6-meter Single Rail NG/OK Transition Platform

SMT Interface Bench Equipment Features:

01. This equipment is used in SMT production lines. It is configured after the AOI section of the machine, with NG boards pausing and OK boards passing directly to the next station.
02. Modular design allows for customizable assembly and disassembly to meet customer requirements.
03. Robust steel structure design enhances equipment stability.
04. Smooth parallel width stainless steel screw adjustment method.
05. Variable speed control feature.
06. Features PCB testing mode.
07. Utilize conveyor track aluminum channel design to prevent pallet jamming.
08. Reinforced bottom design, resists shifting.
09. Customizable machine length upon customer request.
PLC Control.
