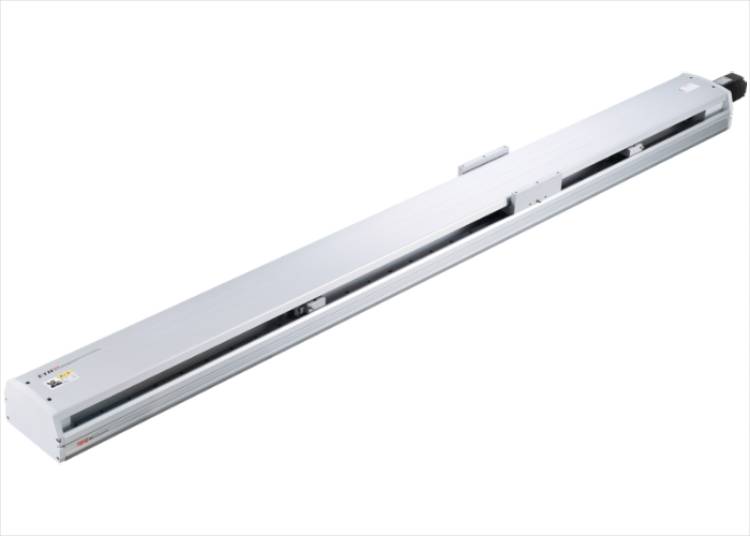

The screw series modules feature high precision and stability. The screw drive module can easily meet the high precision requirements of users and ensure stable operation, thereby extending the service life and assembly quality of the screw and slider. They are mainly used in applications such as work positioning, gripping, handling, and insertion, as well as in the automation fields of electronic component assembly, circuit board and wafer box positioning, and insertion. The ETH17M linear module utilizes a monolithic aluminum profile for high rigidity. Multiple motor installation positions are available (BC motor exposed, BL motor left fold, BR motor right fold, BM motor down fold, M motor concealed direct connection). The ETH17M positioning repeatability is ±0.005(mm), screw lead: 5/10/20/32(mm), holding force: 2563/1281/640/400(N), standard stroke: 800-2200 / 50(mm).
