Offer comprehensive cleaning process solutions for the electronics assembly industry, covering all applications in the electronics and precision mechanical assembly cleaning.

Steel Mesh Cleaning Machine - Electric Base Mesh Cleaning Machine Process:

Stencils for Solder Paste and Adhesives
2. SMT Carrier and Wave Soldering Fixtures
3. PCBA Solder Paste Contaminants
4. Misprinted plate
5. Solder Paste and Mixed Substrate Flux Cleaning
6. Clean oil from tools or parts
7. Precision Mechanical and Optical Parts
8. Cleaning of oil stains from lead frames prior to component assembly
9. Washed Silicon Wafers after Cutting or Polishing
10. Cleaning UV adhesive residue from online dispensing machine carriers

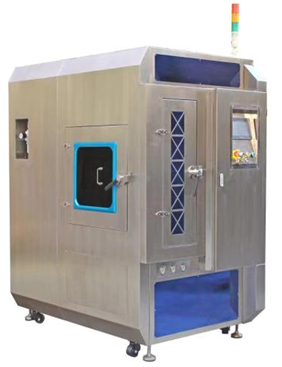

Steel Mesh Cleaning Machine - Electric Base Mesh Cleaning Machine PBT-1000X, Equipment Specifications and Features:

1. Full Automatic Cleaning Mode: The mesh plate is tossed up and down simultaneously, with the high-pressure spray system jetting the heated cleaning solution to achieve automatic cleaning, rinsing, and drying of the mesh plate.

2. Full-process visualization: Visual windows and LED lighting, the cleaning process is crystal clear.

3. Scientific nozzle design (patented): Utilizes 8 spray arms distributed on both sides – thoroughly eliminates cleaning blind spots, with removable spray arms and nozzles.

4. Visual nozzle pressure adjustable: Solves the issue of collision and splashing for small workpieces during cleaning under high-pressure spray conditions.

5. Photoelectric sensors are installed at the viewing window and mesh board entry to ensure personal safety, and the standard dilution liquid tray and rinse water tray with a heating system significantly enhance cleaning efficiency, reducing cleaning time.

6. Cleaning System: Compatible with both water washing and chemical cleaning for SMT; THT PCBA post-soldering, thoroughly and effectively cleans organic and inorganic contaminants such as rosin, water-soluble flux, no-clean flux/solder paste, and other residues.

7. Body Material: Overall 304 stainless steel body, resistant to acidic, alkaline, and other cleaning agents.

8. Rinse can be selected in open-loop or closed-loop mode. The built-in filter device for cleaning enables solvent recycling, reducing solvent consumption.

9. Features an emergency stop button and a leakage protection function.

10. Lower operational costs: Reduced equipment investment, localized services, a dedicated team, and ample spare parts availability.

Steel Mesh Cleaning Machine - Electric Base Mesh Cleaning Machine PBT-1000X Device Parameters:

Washing Area: The washing tank is used for recycling and storing cleaning fluid, and it features 4-stage filtration, heating, monitoring, and level control.

Cleaning Pump: 2.2KW (1 pc), Spray Arms: 4 pcs, Spray Nozzles: 40 pcs

Storage Tank Capacity: ≤ 90L (1 piece)

Filtering Equipment: Stainless Steel Filter Mesh 1mm (1 pc), Filter Mesh Screen 100 Mesh (1 pc), Liquid Tank Filter Bag: 10UM (1 pc), Cleaning Collapsible Filter Core 0.45UM (3 pcs).

Heating Power: 9KW (1 piece), Heating Temperature: Room Temperature - 70℃ (adjustable)

Level Protection: Low, Mid, Stop, and Overlimit Positions

Spray Pressure: 0.1-0.6 Mpa (adjustable)

Washing Area: The washing water storage tank is used for recycling and storing water, and the washing water undergoes 4-stage filtration, heating, monitoring, and level monitoring.

Washing Pump: 3KW (1 unit), 4 spray arms, 40 nozzles.

Washing Storage Tank Capacity: ≤90L (1 piece)

Rinsing Tank Heating Power: 9KW (per unit); Heating Temperature: Room Temperature - 70℃ (adjustable)

Filtering Equipment: 1mm stainless steel filter mesh (1 piece), 100 mesh filter screen (1 piece); Liquid Tank Filter Bag: 10UM (1 pc), Cleaning Collapsible Filter Core 0.45UM (3 pcs).

Level Protection: Low, Medium, Stop Position, Over-limit Position;

Spray Pressure: 0.1-0.6 Mpa (adjustable)

Drying Zone: The drying section is used for thorough drying of products, and also heats the air with air shear + heating and temperature monitoring.

Blade Fan: 3.45KW (1 pc), Stainless Steel Heating Tube: 6KW (1 pc), 4 Wind-Cutting Blades, Heating Temperature: Room Temperature - 60℃ (Adjustable)

Web plate up and down running device: The running device is smoothly rotated by a stepper motor, stepper driver, and encoder.

Stepper Motor: 1 set  Stepper Driver: 400W (1 unit), Encoder: 1 unit

Steel Mesh Cleaning Machine - Electric Base Mesh Cleaning Machine PBT-1000X is applicable for:

PBT-1000X Screen Cleaning Washer is a specialized machine designed for "Water-based" cleaning.Fourth-generation stencil cleaner with "sed" process design:

Fully automated cleaning, rinsing, and drying process. (Utilizes a unique dual eight-arm spray rinsing and rinsing design, along with dual four-blade wind knife air-cutting drying design. Cleaning and rinsing are performed with online filtration to ensure cleanliness.)

Application: Suitable for cleaning SMT steel mesh, copper mesh, rubber mesh, printing rubber fixtures, PCB misprint boards, and PCBA. It effectively removes solder paste, red glue, and other contaminants from the surface and wall of the holes after printing.

Steel Mesh Cleaner - Electric Base Mesh Cleaning Machine PBT-1000X Value
