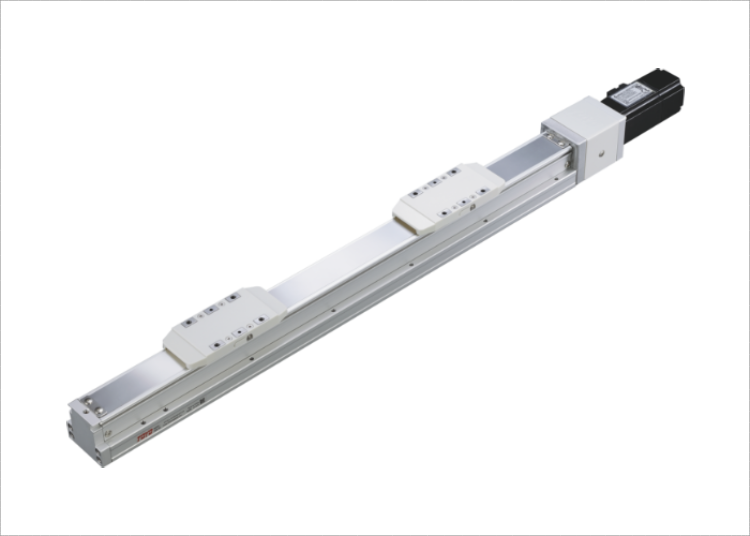

GTH5s Embedded Slide Module Series

The GTH5S Linear Module is a crucial automation equipment in modern manufacturing, integrating advanced technologies such as mechanics, electronics, control, computers, sensors, and artificial intelligence. The high-precision linear module is widely used in various tasks such as planting, positioning, gripping, and handling for electronic equipment.

Product Specifications:

Repeatability accuracy: ±0.005 mm

Pitch of screw: 2 (mm)

Maximum speed: 100 (mm/s)

Maximum Load Capacity: Horizontal Use: 30 kg, dual slides

Maximum load capacity for vertical use: 10(kg) dual slider seats

Stall Thrust: 854 N

Standard Travel: 25-325 / 25 (mm)

Tips: Reverse motion corresponds only to lead screw 2; motor acceleration/deceleration set to 0.2 seconds.
