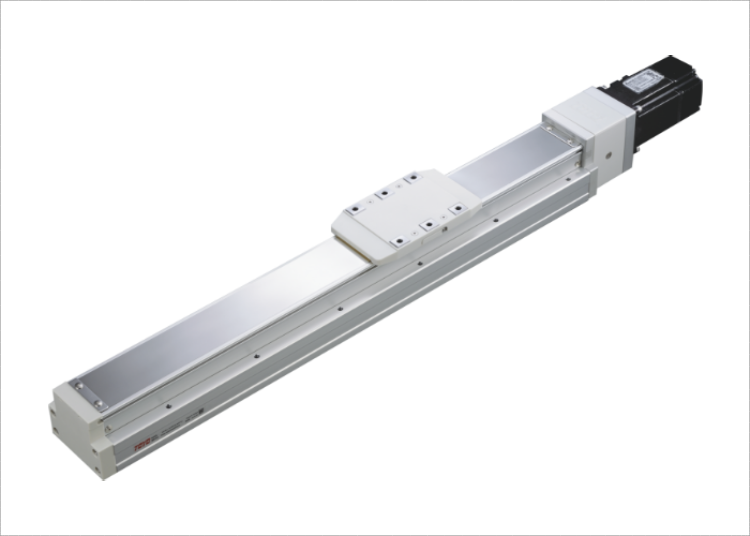

Embedded Sliding Platform Module Series GTH8

This screw series module features high precision and stability. The screw drive module can easily meet high-precision usage requirements and ensures stable operation to prolong the lifespan and assembly quality of screws and sliders. Mainly used in automation fields such as work positioning, gripping, handling, component insertion, electronic part assembly, and PCB and wafer box insertion positioning, widely employed by diversified industries of automation equipment companies.

Product Specifications:

Repeatability accuracy: ±0.005 (mm)

Screw Thread Pitch: 5/10/20 (mm)

Maximum speed: 250/500/1000 (mm/s)

Maximum Lifting Capacity: Horizontal Use: 50/30/18 (kg)

Maximum Lifting Capacity: Vertical Use: 15/8/3 (kg)

Stabilized Thrust: 1388/694/347 (N)

Standard Travel: 50-1100 / 50 (mm)

Tips: Over 750 rotations will cause screw misalignment; please reduce speed at this point; set the motor acceleration/deceleration to 0.2 seconds.
