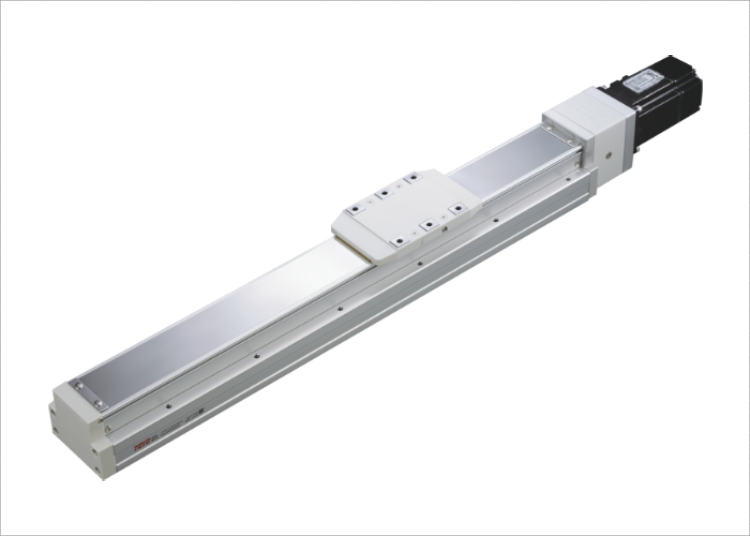

GTH8S Embedded Sliding Platform Module Series

Product Parameters:

Repeatability accuracy: ±0.005 mm

Screw Thread Pitch: 5 (mm)

Maximum Speed: 250 (mm/s)

Maximum Load Capacity for Horizontal Use: 50 kg, dual sliding seats

Maximum load capacity for vertical use: 15 kg, dual sliding seats

Stall Thrust: 1388 N

Standard Stroke: 25-450 / 25 (mm)

Tips: Reverse motion corresponds only to pitch 5; motor acceleration/deceleration set to 0.2 seconds.
