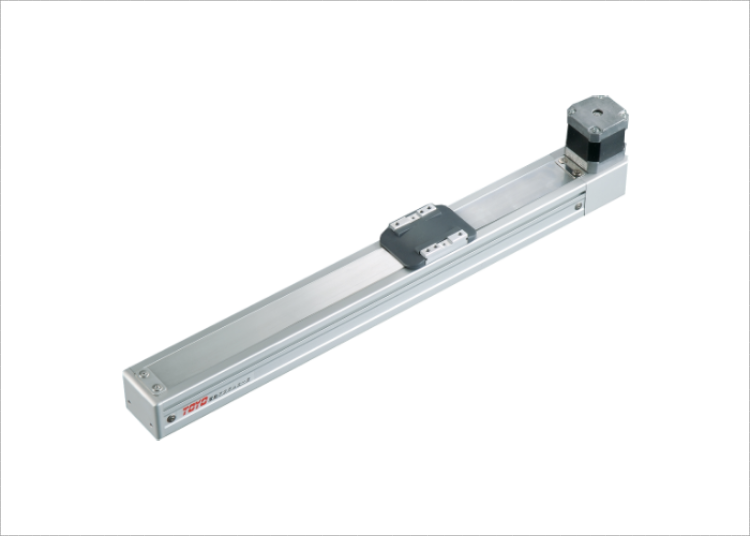

Belt Series Linear Module ETB Series ETB5

Belt series linear modules are suitable for applications such as line change devices on production lines, bundling film cutting devices, and conveying devices between CNC machining centers. Industries served include TFT-LCD liquid crystal panel equipment, solar equipment, food equipment, packaging equipment, and CNC machining equipment.

Repetition positioning accuracy: ±0.04 (mm)
Pitch of screw: 32 (mm)
Maximum Speed: 267 (mm/s)
Maximum Loadable Weight: 3 kg (for horizontal use)
Maximum Load Capacity for Vertical Use: -(kg)
Stall Thrust: 42 N
Standard Travel: 50-800 / 50 (mm)
Motor speed adjustment set to 0.4 seconds.
