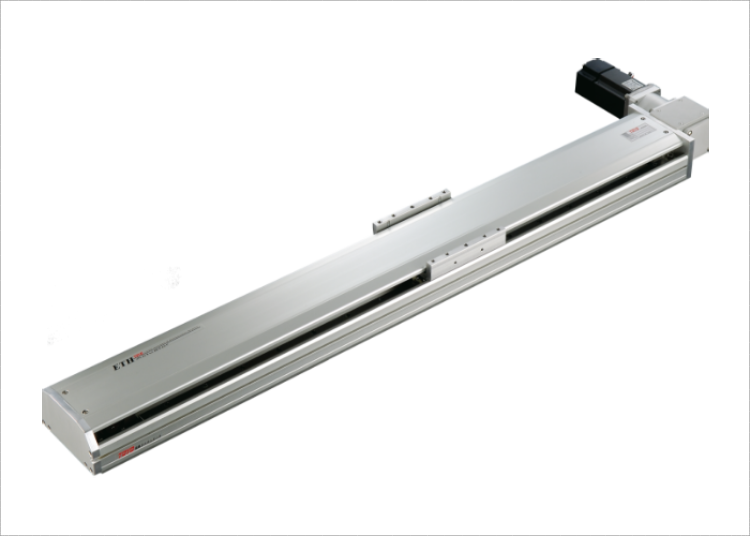

Belt Series Linear Module ETB Series ETB14M

Belt series straight-line modules are suitable for line change devices on production lines, film cutting devices for bundling, and conveying devices between CNC machining centers, among other applications. Industries that utilize these modules include TFT-LCD liquid crystal panel equipment, solar equipment, food equipment, packaging equipment, and CNC machining equipment. The relevant parameters for ETB5 are as follows:

Repeatability accuracy: ±0.04 (mm)
Pitch of screw: 40 (mm)
Maximum Speed: 2000 (mm/s)
Maximum Load Capacity for Horizontal Use: 25 (kg)
Steady Thrust: 100(N)
Standard Stroke: 50-3050 / 50 (mm)
Motor speed adjustment set to 0.4 seconds.
