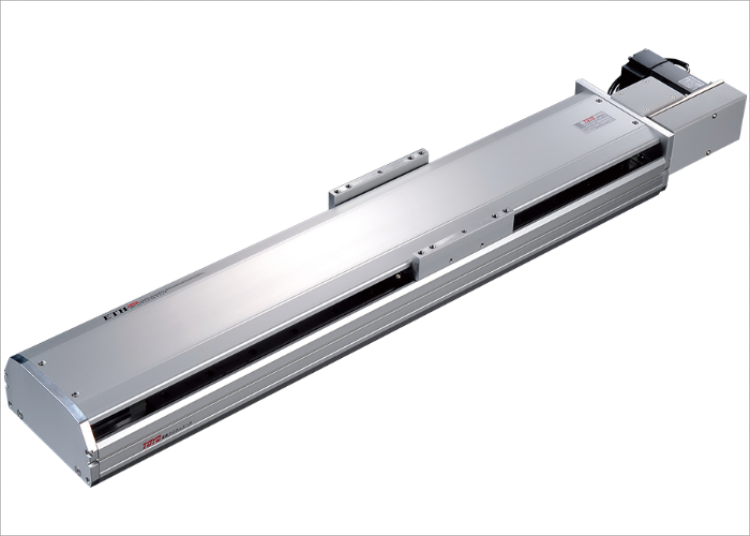

Belt Series Linear Module ETB Series ETB22M
The belt series linear module is suitable for applications such as line change devices on production lines, packaging film cutting devices, and CNC machine transfer devices. Industries that utilize these include TFT-LCD panel equipment, solar equipment, food equipment, packaging equipment, and CNC machining equipment. The relevant parameters for ETB5 are as follows:
Repeatability accuracy: ±0.04 mm
Screw Pitch: 32 mm
Maximum Speed: 267 (mm/s)
Maximum Carry Weight - Horizontal Use: 3 (kg)
Stall Thrust: 42(N)
Standard Stroke: 50-800 / 50 (mm)
Motor speed adjustment set to 0.4 seconds.
