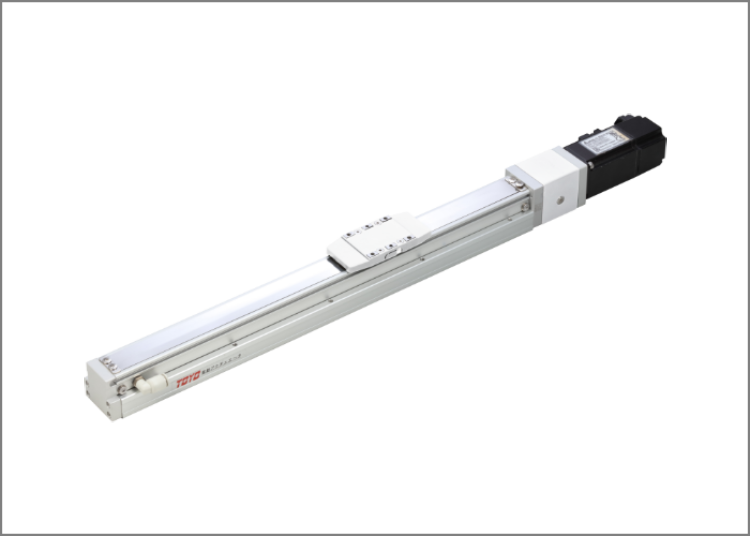

TOYO Dust-Free Slide Table Module Series GCH4
The TOYO GCH4 dust-free series modules are highly trusted in high-tech semiconductor and food production equipment, effectively reducing product contamination and damage. They are primarily used for clean room operations such as positioning, picking, handling, and assembly automation. Their applications include mounting devices, assembly devices, testing devices, and inspection devices. The industries they are used in include semiconductor equipment and FPD industry equipment.
Product Specifications:
Repeatability accuracy: ±0.005 mm
Screw Lead: 2/6/12 (mm)
Maximum speed: 100/300/600 (mm/s)
Maximum Loadable Weight: Horizontal Use: 25/20/12 (kg)
Max. lifting capacity for vertical use: 8/5/2 (kg)
Stabilized Thrust: 424/141/71(N)
Standard Stroke: 50-800 / 50 (mm)
* An eccentricity in the screw shaft will occur when the travel exceeds 550.
Please slow down the speed at this time.
Motor speed adjustment set to 0.2 seconds.
