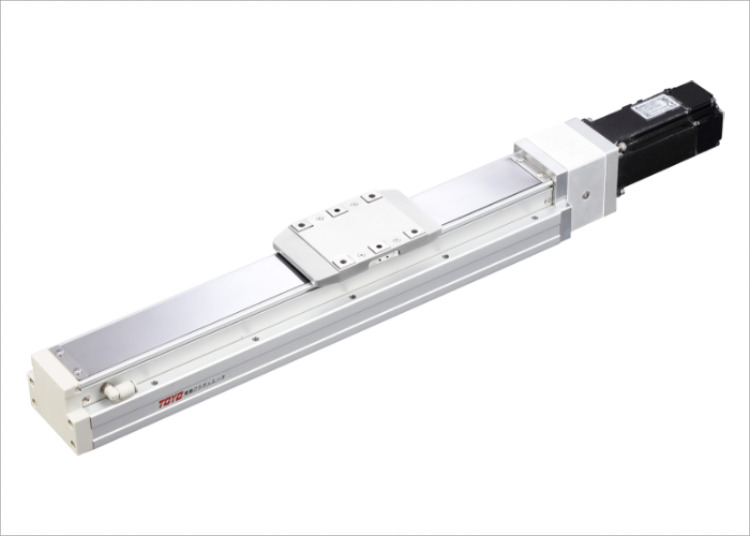

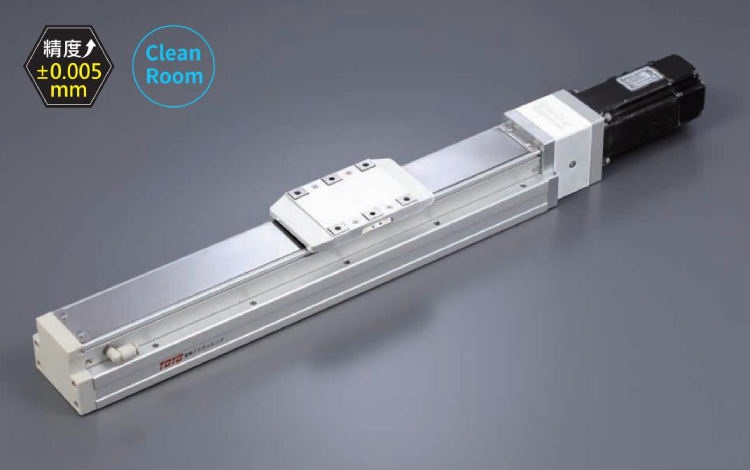

TOYO Dust-Free Sliding Platform Module Series GCH8

The TOYO GCH8 Cleanroom Series Modules are highly trusted in high-tech semiconductor and food production equipment industries, effectively reducing product contamination and damage. They are primarily used for automation in cleanroom operations such as positioning, picking, handling, and inserting. Their applications include SMT machines, assembly devices, testing equipment, and inspection devices. The industries they are used in include semiconductor equipment and FPD industry equipment.

Product Specifications:

Repeatability accuracy: ±0.005 (mm)
Pitch of screw: 5/10/20 (mm)
Z High Speed: 250/500/1000 (mm/s)
Max. lifting capacity: Horizontal usage: 50/30/18 (kg)
Maximum lift capacity: 15/8/3 (kg) vertically
Stall Thrust: 1388/694/347 (N)
Standard Stroke: 50-1100 / 50 (mm)
* A screw shaft deflection occurs when the travel exceeds 750.
*Please slow down the speed at this moment.
Motor speed adjustment set to 0.2 seconds.
