Ultra-Sonic Hand-Crafted Sugar-Free Black Coffee Pods Packaging Machine

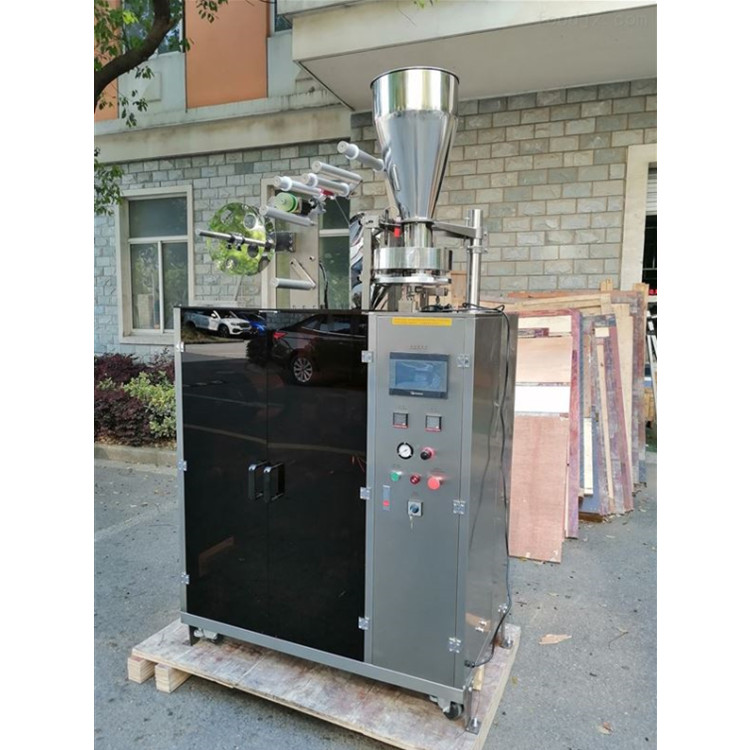

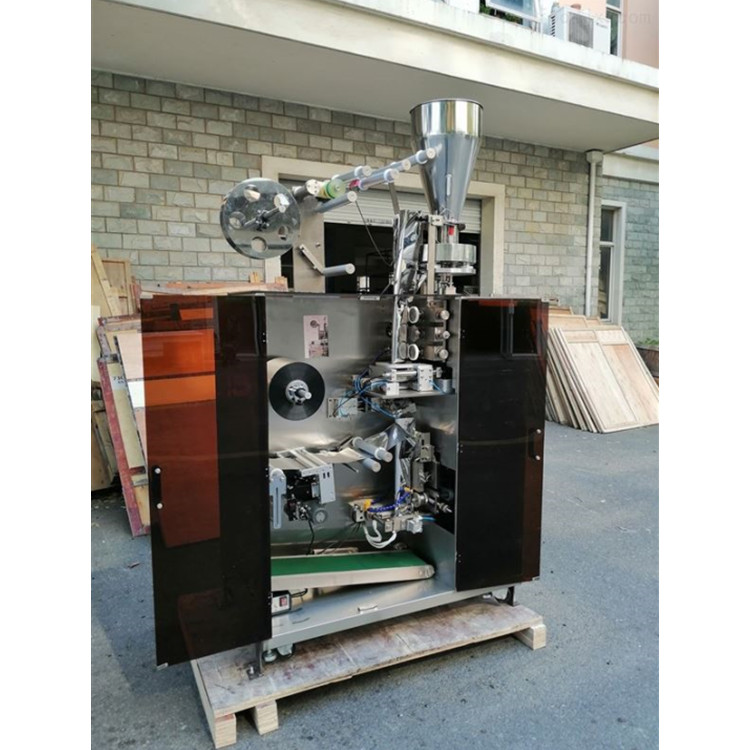

QD-188 Over-the-ear Coffee Bagging Machine

I. Applicable to:

Single-use packaging for ear tags, suitable for small granular materials like tea leaves, coffee, herbal plant roots and stems.

II. Features:

1. Utilizing a specific over-ear filter, sealed on three sides, it directly hangs on the rim of the cup for enhanced coffee brewing and a bag shape that is aesthetically pleasing. It's currently very popular in the international market.

This machine is equipped with automatic functions for bag making, weighing, filling, sealing, cutting, counting, and printing batch numbers.

3 Precision control system adjusts the entire machine's operation, compact structure, user-friendly interface design, easy operation, convenient adjustment, and easy maintenance.

The inner bag length is driven by a servo motor for precise positioning and stable length. The outer bag utilizes photoelectric switch positioning and stepper film pulling for accurate and aesthetically pleasing bag length.

The inner bag is a non-woven fabric hanging ear bag, convenient for brewing and hygienic. The advanced ultrasonic sealing ensures a good seal and an aesthetically pleasing bag shape.

Ultrasonic Sealing Packaging Machine for Filtered Original Flavor Coffee

III. Technical Specifications:

Bagging Size: Inner Bag: Width (W): 90 (mm), Length (L): 70 (mm)

Pouch: Width (W): 100 (mm), Length (L): 120 (mm)

Packing Speed: 40-55 packs per minute

Measuring Range: 5-20ml (Special specifications available upon request)

Power Source: 220V/50Hz/3.5KW

Overall Weight: 660 kg

Dimensions (Length x Width x Height): 1350*850*2200mm

QinDian After-Sales Service:

We are responsible for on-site installation, debugging, and training of the operators.

2. Training Programs: A. Standard Operation of Machinery B. Maintenance and Repair

3. The above equipment comes with a free one-year warranty for mechanical operation according to standard procedures (we are responsible for free repairs due to quality issues with the equipment's own parts; any damage caused by the customer is at the customer's expense, with our assistance for repairs).

4. After the warranty period, we offer lifetime paid repairs and free technical consultation.

We should arrive at the site for the repair within 24 hours of receiving the notification from Party A, diagnose and resolve the issue, ensuring the machine operates normally.

Replacement Parts:

Heating tubes, blades, thermocouple wires

A complete set of tools is included, see toolbox for details.

Ultrasonic Hand Drip Sugar-Free Black Coffee Pod Packaging Machine

QD-18KFC Drip coffee bag (inner & outer) packing machine

QD-18KFC Ear-Loop Coffee Packaging Machine for Inner and Outer Bags

Characteristic

1. Suitable for coffee powder and granular materials.

The machine is suitable for ground coffee and small particulate material.

2. Utilizing a specific over-ear filter, triple-sealed, and directly hanging on the cup's rim, the coffee brewing effect is enhanced, and the bag shape is aesthetically pleasing. It's currently very popular in the international market.

Adopt the special drip filter bag with three-sides sealing, which can be  directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.

3. This machine is equipped with automatic functions for bag-making, weighing, filling, sealing, cutting, counting, and printing batch numbers.

The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.

4. The inner bag is a non-woven fabric hang ear bag, easy to brew and hygienic. The seal is made with advanced ultrasonic sealing, ensuring a good seal and an aesthetically pleasing bag shape.

The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced  ultrasonic sealing, perfect sealing and beautiful bag type.

5. Packaging Materials: Coated Film, Nylon, Corn Fiber, and Hang Ear Coffee Film.

Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag
