Portable Espresso Coffee Concentrate Ultrasonic Hanging Earring Packaging Machine

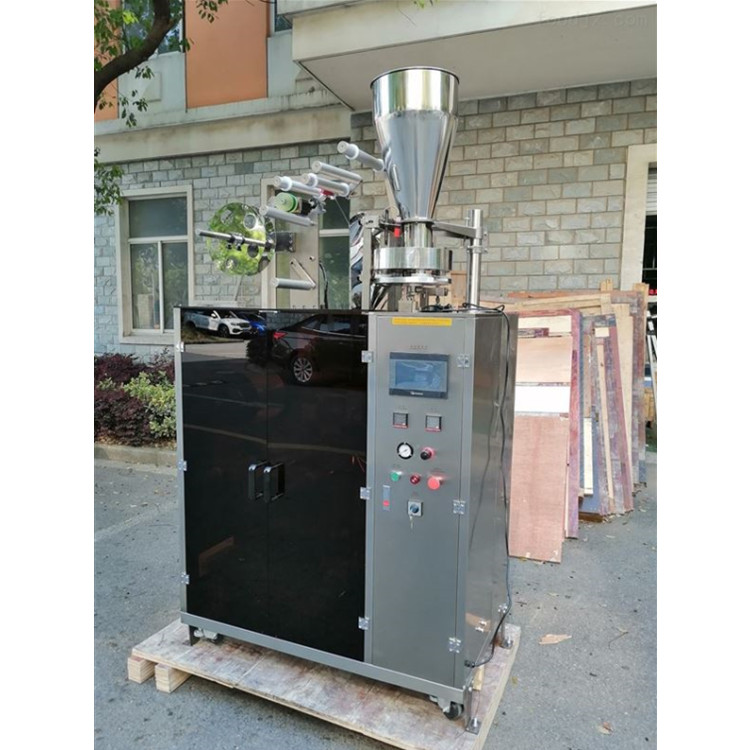

QD-188 Over-the-ear Coffee Bag Packaging Machine
I. Applicable to:
One-time-use packaging for ear tags, suitable for small particle materials such as tea leaves, coffee, and herbal plant roots and stems.
Section II: Features:
1. Featuring a specific clip-on filter with a sealed three-side design, it directly hooks onto the cup's rim for enhanced coffee brewing and an aesthetically pleasing bag shape, which is currently very popular in international markets.
This machine features automatic bag-making, measurement, filling, sealing, cutting, counting, and batch number printing functions.
3 Equipped with a precise control system to regulate the machine's operation, the structure is compact, featuring a user-friendly human-machine interface, easy to operate, adjust, and maintain.
4 The inner bag is driven by a servo motor for precise positioning and stable bag length. The outer bag uses a photoelectric switch for positioning and stepper motor for film pulling, ensuring accurate and aesthetically pleasing bag length.
The inner bag is a non-woven fabric hang ear bag, convenient for brewing and hygienic. The advanced ultrasonic sealing ensures a good seal and an aesthetically pleasing bag shape.
Filter Style Original Coffee Ultrasound Sealing Packaging Machine
III. Technical Specifications:
Bagging Size: Inner Bag: Width (W): 90 (mm), Length (L): 70 (mm)
Pouch: Width (W): 100 mm, Length (L): 120 mm
Packaging speed: 40-55 packages per minute
Measuring Range: 5-20ml (Special specifications available upon request)
Power Source: 220V/50Hz/3.5KW
Overall Weight: 660 kg
Dimensions: (Length x Width x Height) 1350*850*2200mm
QinDian After-Sales Service:
We are responsible for on-site installation, debugging, and training of the operators.
2. Training Programs: A. Standard Operation of Machinery B. Maintenance and Care
3. All equipment is provided with a one-year free warranty for mechanical operation in accordance with standard procedures (we are responsible for free repairs due to quality issues with the accessories; customer is responsible for all costs for damage caused by human factors, with our assistance for repairs).
4. After the warranty period, we offer lifetime paid repairs and free technical consultation.
5. We are to arrive at the site for the repair within 24 hours upon receiving the notification from Party A, diagnose and rectify the fault, ensuring the equipment operates normally.
Fragile Parts:
Heating tube, blade, temperature sensor wire
A set of tools is included, see tool box for details.
Portable Single-Serve Espresso Maker with Ultrasonic Ear-Loop Packaging

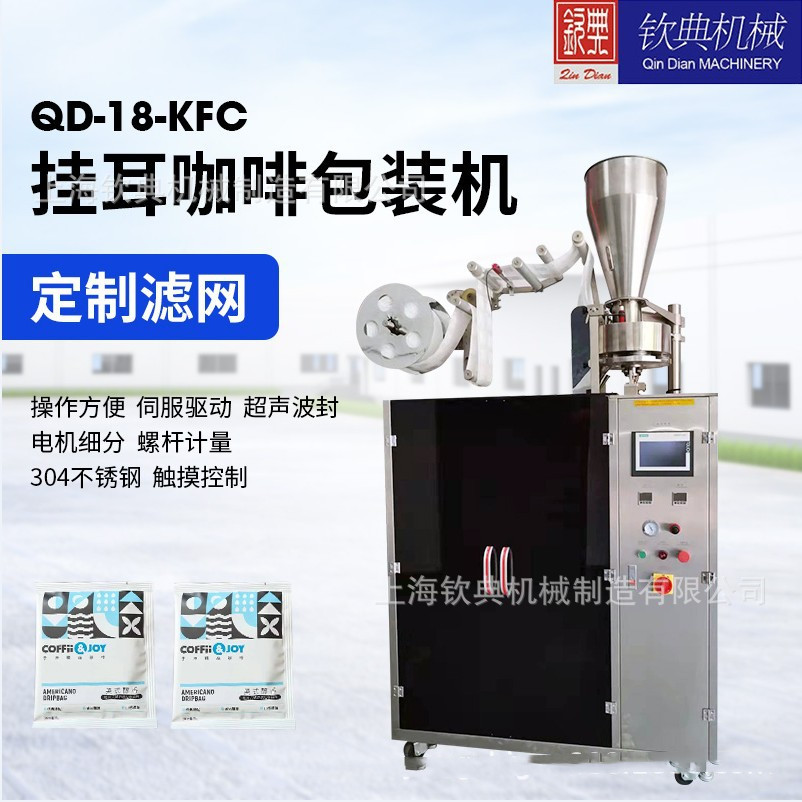

QD-18KFC Drip coffee bag (inner & outer) packing machine
QD-18KFC Over-the-ear Coffee Bag Packaging Machine
Feature
1. Suitable for coffee powder and small granular materials.
The machine is suitable for ground coffee and small particulate material.
2. Utilizing a specific over-ear filter, triple-sealed, and designed to hang directly on the cup's rim, it enhances coffee brewing and boasts an aesthetically pleasing bag shape. It's currently very popular in the international market.
Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3. The machine features automatic bagging, metering, filling, sealing, cutting, counting, and batch number printing functions.
The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4. The inner bag is a non-woven fabric hanging ear bag, convenient for brewing and hygienic. The advanced ultrasonic sealing ensures a good seal and an aesthetically pleasing bag shape.
The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5. Packaging Materials: Composite Film, Nylon, Corn Fiber, and Hang Ear Coffee Film.
Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag
